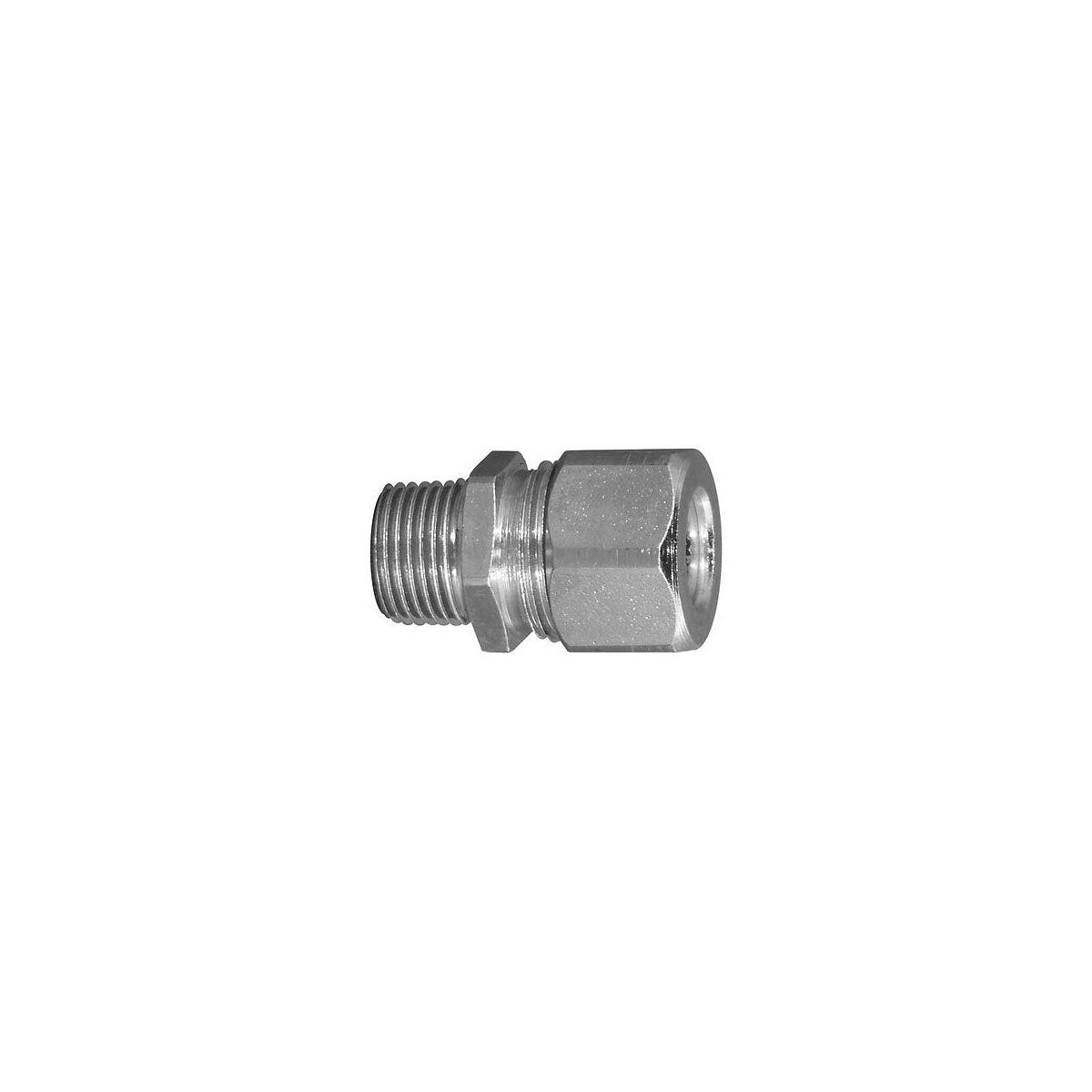

APPLETON APPCG6275S APP CG-6275S 3/4 STL STR CORD CONN BLACK - Liquidtight Strain Relief Cord Connector

The APPLETON APPCG6275S is a steel straight liquidtight strain relief cord connector designed for secure termination of flexible neoprene, hypalon, and PVC jacketed power or control cords and cables. It is suitable for use in wet or dry locations, providing effective sealing against dust, dirt, oil, water, and other moisture-containing atmospheres. This connector is ideal for electrical distributors and switchgear suppliers requiring reliable cable protection and strain relief in industrial and commercial lighting solutions and wire and cable applications.

Specifications

• Manufacturer Part #: CG6275S
• Material: Machined steel body and cap
• Cable Diameter Range: 0.625 to 0.750 inches
• Dimensions: Length 35.1 mm (1.38 in), Width 22.4 mm (0.88 in)
• Weight: 11.79 kg per 100 units (26.00 lb per 100 units)
• Sealing Grommet: Neoprene
• Washer: Steel or Teflon
• Color Coded Label: Orange
• Certifications: UL Listed (E14817), CSA Certified (065178), UL Standard 514B, CSA Standard C22.2 No. 18.3

Features

• Provides liquidtight and strain relief termination for flexible power/control cords
• Steel construction for rugged service in non-hazardous areas
• Neoprene sealing grommet grips cable jacket to prevent internal wiring strain
• Steel or Teflon washer reduces friction and prevents leakage from grommet distortion
• Hex head cap design for secure installation
• Suitable for use in Class I Division 2, Class II Division 1 and 2, Class III, and NEMA 3R environments
• Silicone free
