Description

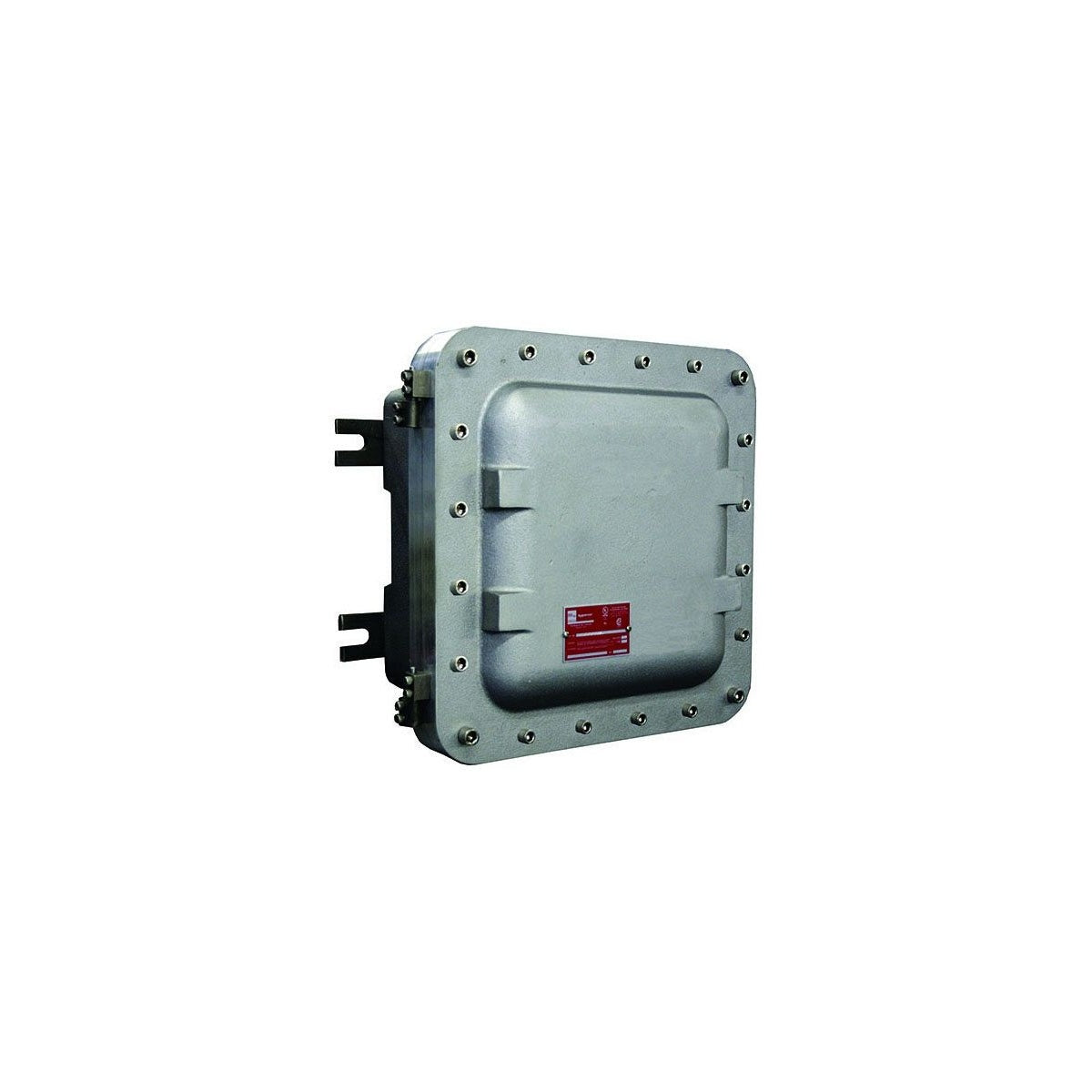

APPLETON AJBEW303808 Junction Box Explosionproof Enclosure
The APPLETON AJBEW303808 is an explosionproof junction box designed for hazardous environments where electrical wiring must be safely enclosed. Suitable for terminals, splicing wires, pull boxes, and bus boxes, this enclosure is ideal for electrical distributors and lighting solutions requiring robust wire and cable protection. It meets NEC/CEC standards for Class I, Division 1 and 2, and is compliant with UL 1203 and CSA certifications, making it suitable for use in industrial and commercial switchgear applications.
Specifications
- Manufacturer: Appleton Electric
- Manufacturer Part #: AJBEW303808
- Product Weight: 712 kg (approximate)
- Certifications: UL 1203, cULus Listed E85310, CSA C22.2 No. 25, No. 30, CSA Certified 042129
- NEC/CEC Classifications: Class I Div 1 & 2 Groups B, C, D; Class I Zone 1 & 2 Groups IIA, IIB+H2; Class II Div 1 & 2 Groups E, F, G; Class III
- NEMA Ratings: 4, 7B, C, D, 9EFG
- Material: Sand cast copperfree aluminum body and cover
- Cover Bolts: Stainless steel
- O-ring: Neoprene gasket for watertight integrity
- Hinges: Stainless steel
- Mounting Pan: Galvanized steel
- Dimensions (Overall): 914.4 mm (36.00") height x 1117.6 mm (44.00") width x 509.5 mm (20.06") depth
- Inside Dimensions: 965.2 mm (38.00") height x 196.9 mm (7.75") depth x 155.7 mm (6.13") width
- Maximum Conduit Size: 4 inches
Features
- Precision machined flame path between box and cover for explosionproof integrity
- Bolt-on stainless steel slotted mounting feet for flexible horizontal or vertical mounting
- Flexible hinge mounting on left or right side (standard for boxes 12x12x6 and larger)
- External flange design maximizes internal wiring space
- Wall thickness suitable for a minimum of five full threads to ensure durability
- Wide range of drilled and tapped outlets available
- Ground lug package with installation instructions included for grounding termination
- O-ring gasket ensures watertight and dust-tight enclosure
- Standard shot blast finish on bodies and covers
- Optional gray epoxy powder coat available for enhanced corrosion resistance and NEMA 4X rating
- Custom drilling and tapping options for specific installation needs
- Multiple accessory options including mounting pans, breather, drain, desiccant packages, and hinge kits
