Appleton Electric
APPLETON AJBEW161608 JUNCTION BOX APPLETON TAG#88A
SKU: #400004
Part: #AJBEW161608
UPC: 781381846547
Appleton Electric
APPLETON AJBEW161608 JUNCTION BOX APPLETON TAG#88A
SKU: #400004
Part: #AJBEW161608
UPC: 781381846547
Description

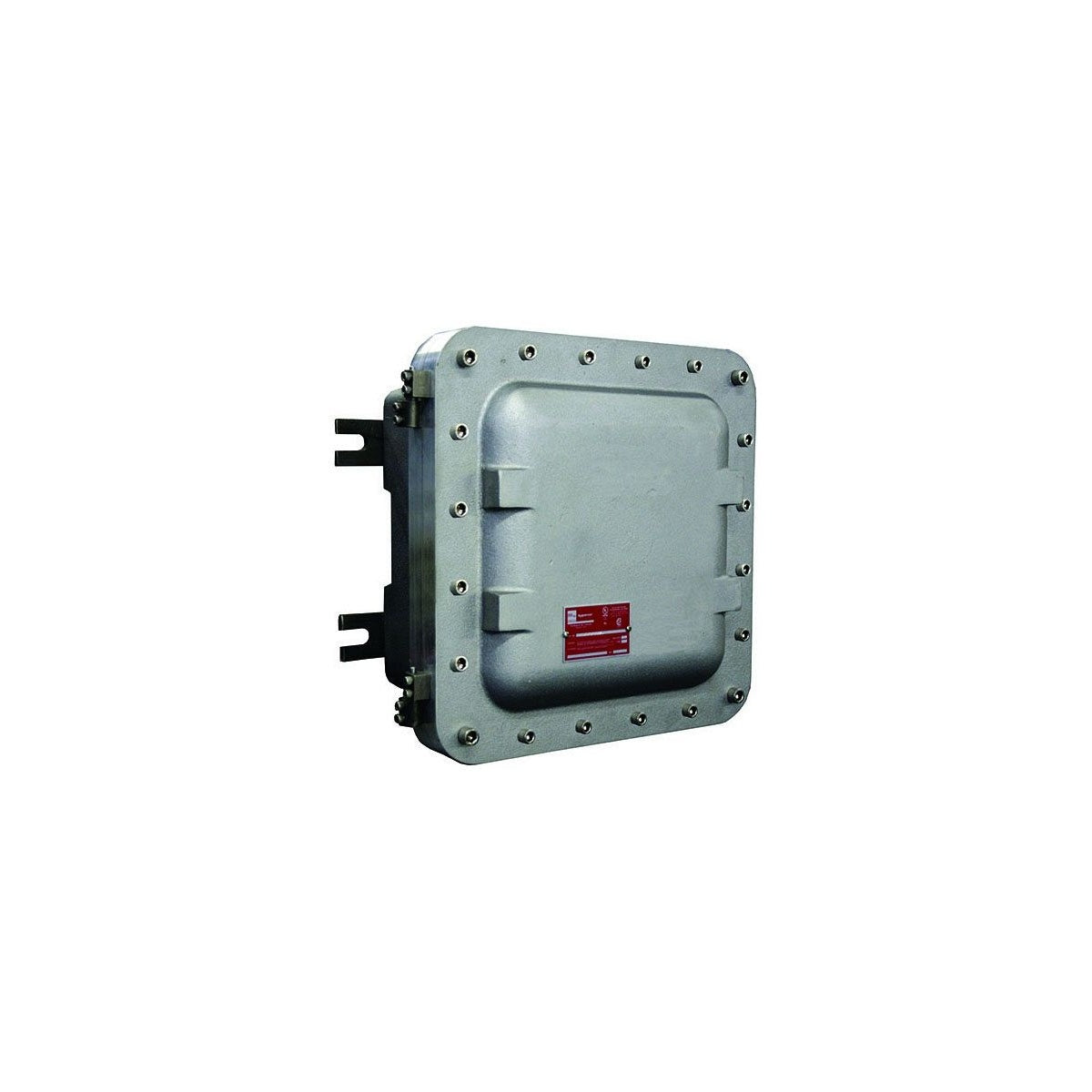

APPLETON AJBEW161608 Junction Box Explosionproof Enclosure
The APPLETON AJBEW161608 is a precision-engineered explosionproof junction box designed for hazardous environments where electrical safety and reliability are critical. Manufactured by Appleton Electric, this junction box is suitable for use in electrical distribution, lighting solutions, wire and cable management, and switchgear applications. It provides a secure enclosure for terminals, wire splicing, pull boxes, and bus boxes, ensuring protection against dust ignition and explosion hazards in compliance with NEC/CEC standards.
Specifications
- Manufacturer: Appleton Electric
- Manufacturer Part #: AJBEW161608
- Product Weight: 238 kg (approximate)
- Certification Standards: UL 1203, cULus Listed E85310, CSA C22.2 No. 25 & No. 30, CSA Certified 042129
- NEC/CEC Classifications: Class I Divisions 1 & 2 Groups B, C, D; Class I Zones 1 & 2 Groups IIA, IIB+H2; Class II Divisions 1 & 2 Groups E, F, G; Class III
- NEMA Ratings: 4, 7B, C, D, 9 E, F, G
- Material: Sand cast copperfree aluminum (max 0.4% copper)
- Cover Bolts: Stainless steel
- O-ring Gasket: Neoprene for watertight integrity
- Hinges: Stainless steel with flexible left or right side mounting
- Mounting Pan: Galvanized steel
- Overall Dimensions (mm): 533.4 W x 533.4 H x 212.9 D (21.00" x 21.00" x 8.38")
- Inside Dimensions (mm): 419.1 W x 419.1 H x 124.0 D (16.50" x 16.50" x 4.88")
- Maximum Conduit Size: 4 inches
Features
- Precision machined flame path between box and cover for explosionproof integrity
- Bolt-on stainless steel slotted mounting feet support horizontal or vertical installation
- Flexible hinge mounting on left or right side standard for boxes 12x12x6 inches and larger
- External flange design maximizes internal wiring space
- Wall thickness designed to accommodate a minimum of five full threads for secure fastening
- Wide range of drilled and tapped outlets available for conduit connections
- Ground lug package and installation instructions included for proper grounding
- Neoprene O-ring gasket ensures watertight and dust-tight enclosure
- Shot blast finish on bodies and covers as standard
- Optional accessories available including custom drilling/tapping, breather and drain kits, desiccant packages, grounding studs, epoxy powder coating, and terminal blocks
