APPLETON ADR20034 200A RECEPT ASSY 4P S2
SKU: #406002
Part: #ADR20034
UPC: 781381612661
APPLETON ADR20034 200A RECEPT ASSY 4P S2
SKU: #406002
Part: #ADR20034
UPC: 781381612661
Description

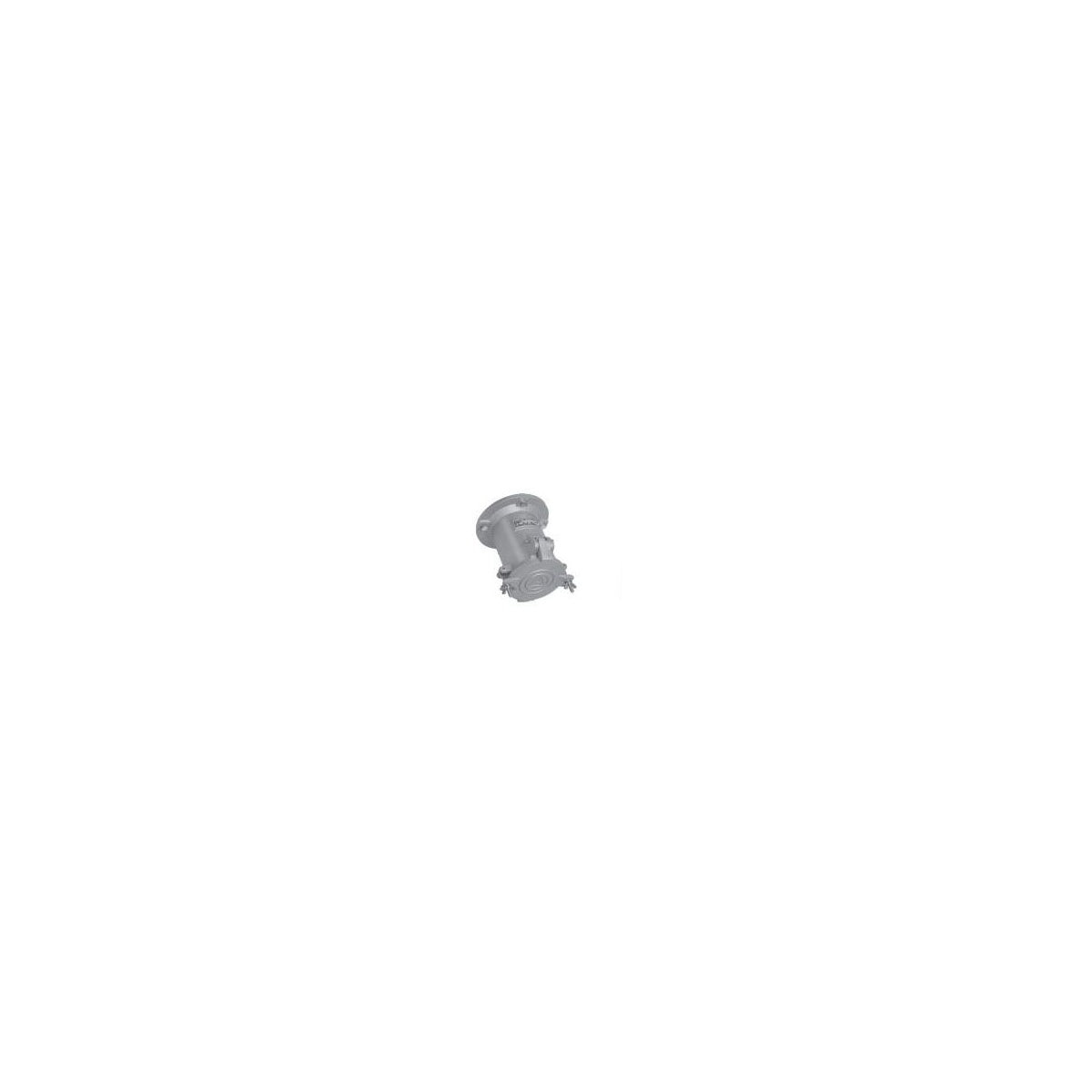

APPLETON ADR20034 200A Receptacle Assembly 4P Style 2 - Pin and Sleeve Plug
The Appleton ADR20034 is a 200 Amp, 4-pole pin and sleeve receptacle assembly designed for reliable power distribution in industrial and commercial electrical applications. It is part of the Powertite‚Ñ¢ series, ideal for supplying power to portable or fixed electrical equipment such as motor generator units, welders, pumps, and compressors. This device is engineered for use in harsh environments requiring weatherproof enclosures, meeting NEMA 3, 4, and 4X standards. Suitable for electrical distributors and switchgear suppliers, it ensures safe and secure connections with robust grounding options and is compliant with NEC/CEC standards for ordinary (unclassified) locations.
Specifications
- Manufacturer: Appleton Electric
- Manufacturer Part Number: ADR20034
- Amperage Rating: 200 Amp
- Number of Poles: 4
- Grounding Style: Style 2 (Shell and Extra Pole Grounding)
- Voltage Rating: 600 Volt AC, 250 Volt DC
- Wire Recess Diameter: 0.687 inches
- Wire Size Range: 250 MCM to 4/0 (General Wire), 3/0 to #4 (Flexible and Extra Flexible Cable)
- Temperature Range: -25 °C to +40 °C (-13 °F to +104 °F)
- Standards and Certifications: UL Standard 1682, CSA Specification C22.2 No. 42, cULus Listed
- NEMA Ratings: 3, 4, 4X
- Product Weight: 7.56 lbs
Features
- Rugged construction suitable for rough usage and outdoor environments
- Two grounding styles available; Style 2 provides grounding through shell and extra pole for enhanced safety
- Weatherproof design with spring door cover and screw cap options for moisture, dirt, dust, and corrosion protection
- Positive polarization prevents mismating of plugs and receptacles wired for different voltages
- Pressure wire terminals with solid copper split-type contacts ensure reliable electrical continuity
- Locking screw and slot prevent plug cable collar from backing off
- Intermateable with Crouse-Hinds Arktite®, Powermate™, and Killark Versamate® series
- Emergency disconnect capability allowing plug withdrawal under full rated loads within horsepower limits
- Available options include reverse service for generator applications, special polarization, lock collar, and NEMA 4X caps
- Comprehensive maintenance instructions emphasize safety and longevity, including regular inspection and torque specifications
