ANAMET 39831 1 ZHUA BLK 100FT CTN
SKU: #405031
Part: #39831
UPC: 714118398316
ANAMET 39831 1 ZHUA BLK 100FT CTN
SKU: #405031
Part: #39831
UPC: 714118398316
Description

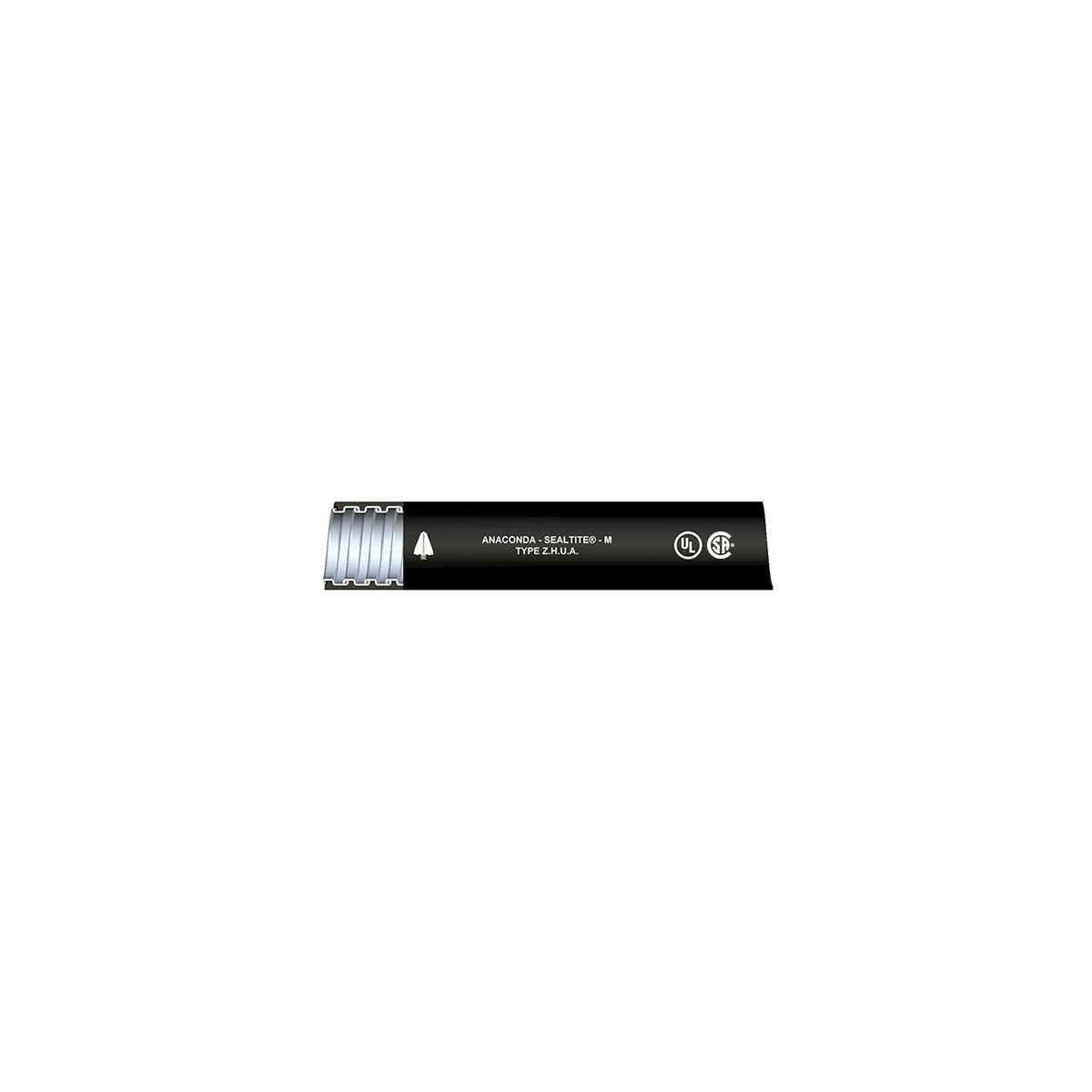

ANAMET 39831 1 ZHUA BLK 100FT CTN Zero Halogen Flexible Conduit
The ANAMET 39831 is a 1-inch size, Zero Halogen, UL listed flexible metal conduit designed for commercial and transport applications requiring low smoke and halogen-free electrical wiring protection. This conduit features a galvanized steel core with a liquid-tight thermoplastic polyurethane (TPU) jacket, providing resistance to UV, corrosion, oil, heat, and chemical breakdown. It is suitable for use in harsh environments and complies with NEC and NFPA standards, making it an ideal product for electrical distributors and switchgear suppliers focusing on advanced lighting solutions and wire and cable protection.
Specifications
- Manufacturer: Anamet Electrical
- Manufacturer Part #: 39831
- Product Weight: 73 lbs per 100 ft
- Color: Black
- Material: Galvanized steel core with liquid-tight TPU jacket
- Temperature Range: -40°F to +176°F (-40°C to +80°C)
- UL Approval: UL-94 V-0, UL 360 DXHR.E18917
- Meets or exceeds: ASTM-E162 (Flame spread), ASTM-E662 (Smoke density), Bombardier SMP-800C (Toxic gas generation)
- Compliance: UL 360 Approved DXHR.E18917, CSA C22.2 #LL15275, NEC Article 350, NFPA 79 (2021 Edition) Section 13.5.4 LFMC, NFPA 130 (2023 Edition) Section 8.6.7.4 LFMC
- Trade Size: 1 inch (27 mm)
- Inside Diameter: 1.041 - 1.066 inches
- Outside Diameter: 1.290 - 1.315 inches
- Bend Radius: 6.0 inches
- Standard Packaging: 100 ft carton
Features
- Flexible metal core with liquid-tight construction
- Special polyurethane jacket provides maximum protection against toxic gases, smoke density, carbon monoxide, and HCL levels
- Halogen free, flame retardant, and low smoke emission
- Approved for direct burial and embedding in concrete
- Resistant to heat, oil, corrosion, sunlight, and chemical breakdown
- Compatible with standard liquid-tight connectors for easy installation
- Suitable for hazardous locations per NEC Articles 501.10(B)(2), 502.10(A)(2) & (B)(2), 503.10(A)(3) & (B), and 350 Liquid Tight Flexible Metal Conduit
- Square-Locked Design with integral bonding wire for sizes 3/8” through 1-1/4”
- Meets IP66/67 rating with approved fittings
