ALXH400FXPSQ Area Light – High-Efficiency Lighting Solutions

The ALXH400FXPSQ is a robust area light designed for commercial and industrial outdoor lighting applications. Manufactured by RAB, this fixture delivers high lumen output with excellent efficacy, making it suitable for electrical distributors and lighting solutions providers focusing on durable, high-performance wire and cable compatible lighting products. Its construction and features support reliable operation in wet locations and environments requiring rugged switchgear supplier-grade components.

Specifications

• Input Wattage: 450 watts
• Lumens: 40,000 lumens
• Efficacy: 88 lumens per watt
• Lens Material: Thermal Tempered Shock Resistant Glass, 5/32" thick
• Product Weight: 38.5 lbs

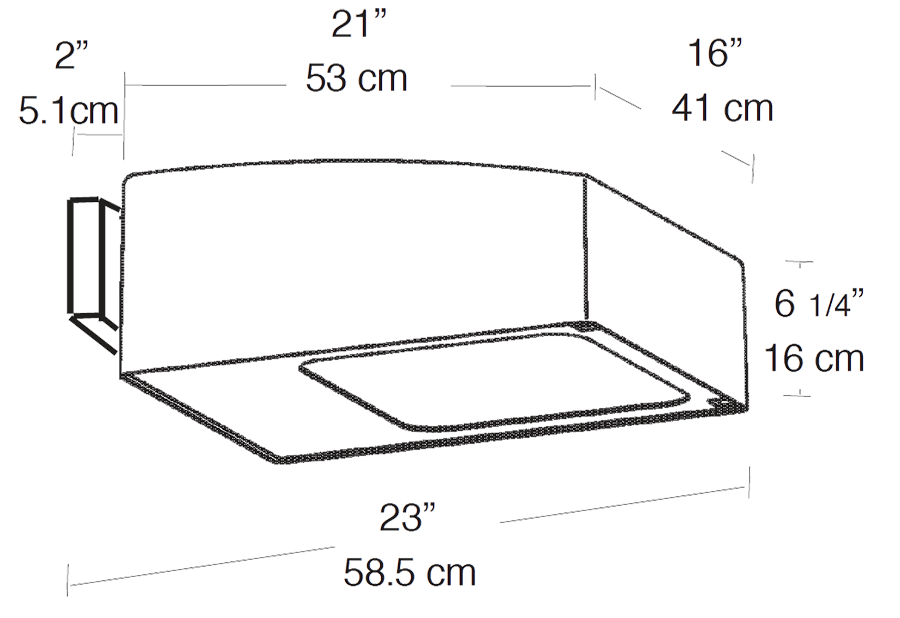

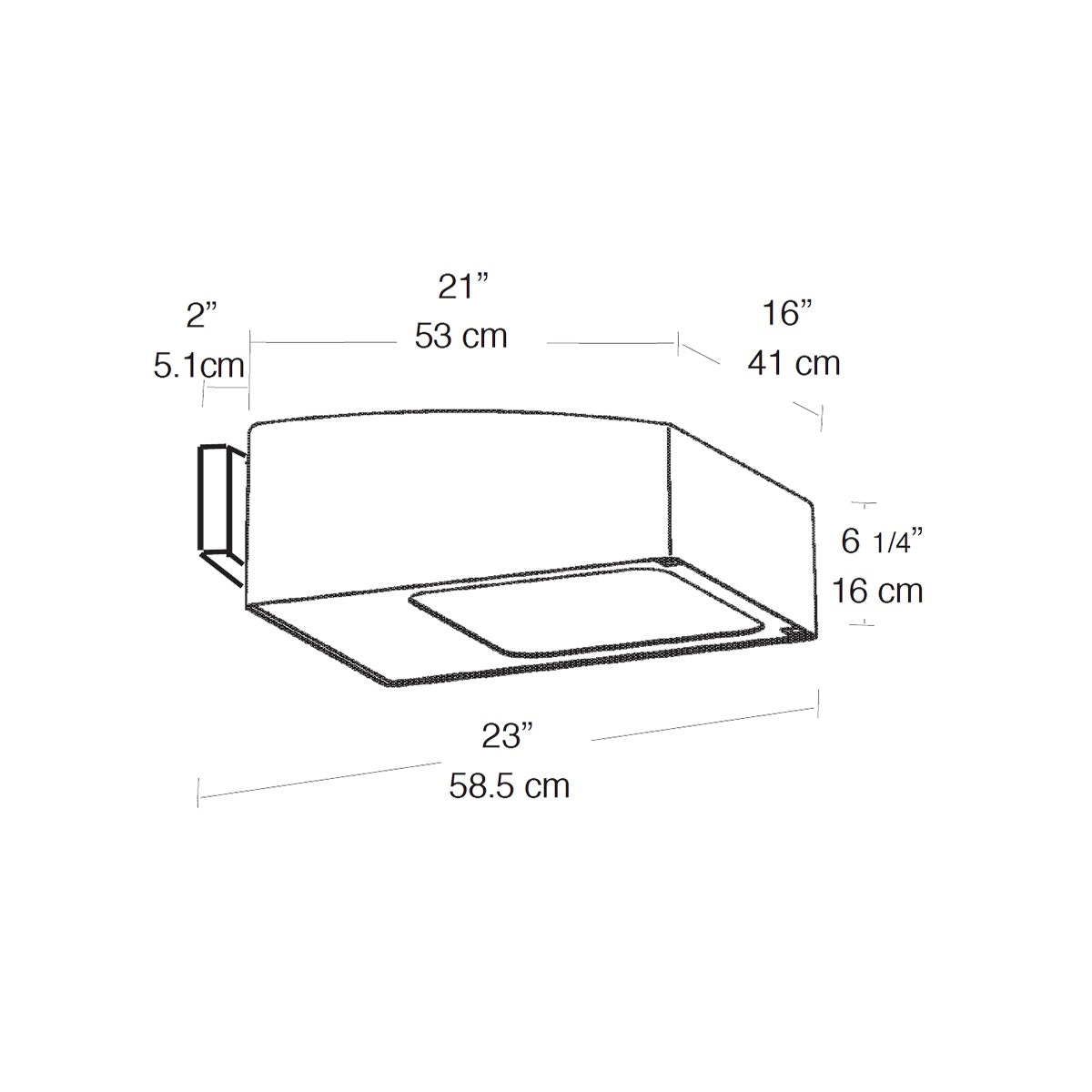

• Dimensions: 23" (L) x 21" (W) x 6 1/4" (H)
• Mounting Arm: Two 3/8" threaded rods at 2" on center
• Housing: One-piece precision die-cast aluminum with die-cast door frame
• Reflector: Custom Hydroformed reflector
• Lens Gasket: EPDM gasket sealing optical chamber
• Socket: Porcelain, pulse rated 4kV, 1500 watts, 600 volts
• UL Listed: Suitable for wet locations and mounting within 4 feet of the ground
• Color: Bronze

Features

• Field rotatable optics for flexible light distribution
• Sleek, smaller volume design lowers effective projected area (EPA)
• Sealed optical chamber prevents dirt and rust ingress
• Stainless steel external hardware for corrosion resistance
• Silicone lamp retainer secures lamp in socket
• Lamp supplied with fixture

Downloads & Links

• Spec Sheet
