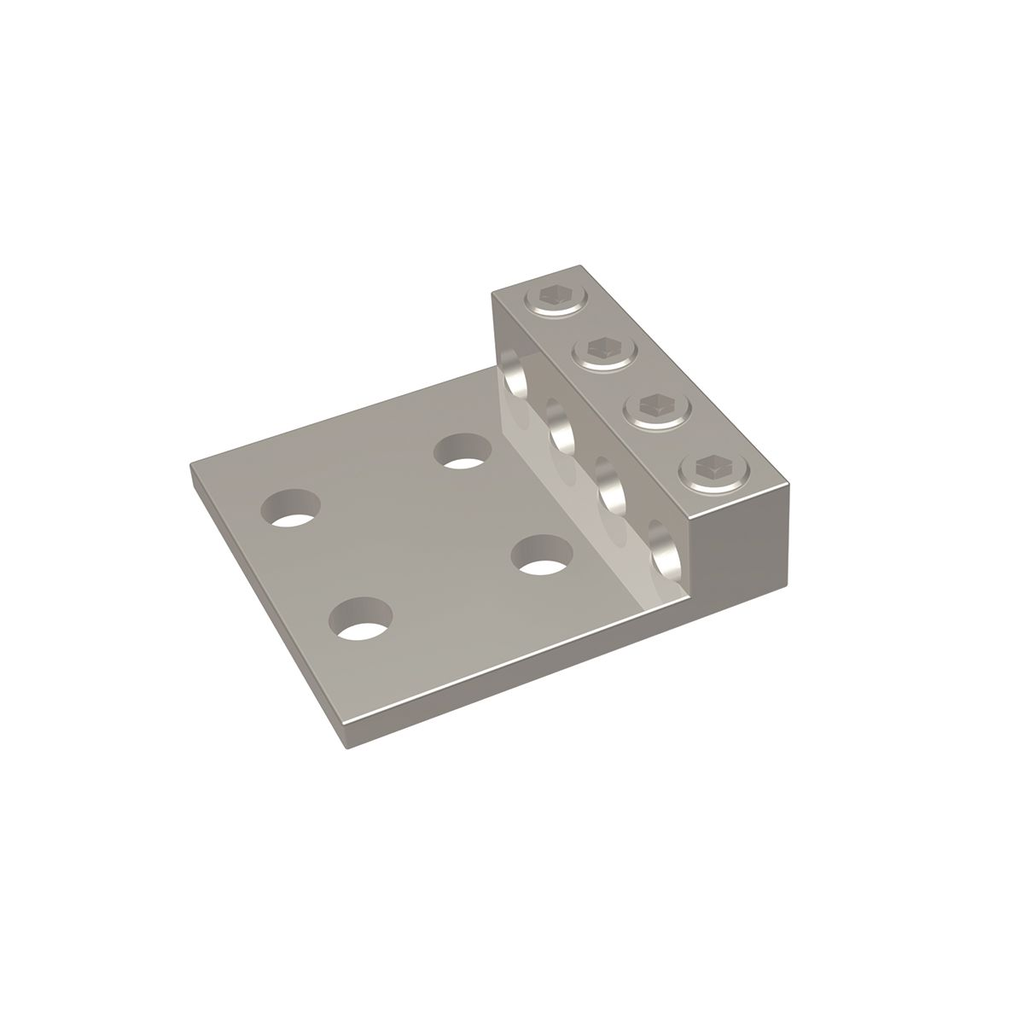

Aluminum Universal Terminal, 4 Conductor, 4 Hole, 6 AWG (Str)-350 kcmil - Electrical Terminal Connector

This Aluminum Universal Terminal is designed for use with aluminum and copper conductors, providing a reliable electrical connection solution suitable for wire and cable applications. It is ideal for electrical distributors and switchgear suppliers requiring robust and versatile terminals for multi-conductor installations.

Specifications

• Material: Aluminum
• Number of Conductors: 4
• Conductor Range: 6 AWG (Stranded) to 350 kcmil
• Stud Size: 1/2 inch
• Stud Hole Spacing: 1.75 inches
• Hole Size: 0.56 inches
• Connection Type: Parallel Set-Screw
• Product Weight: 0.92 lbs
• Width: 4.72 inches
• Finish: Tin Plated
• Application: For Aluminum and Copper Conductors
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: K4A31U4N

Features

• Al/Cu rated for compatibility with both aluminum and copper conductors
• Tin plated to enhance corrosion resistance
• Four-hole design accommodates multiple conductors for versatile wiring configurations
• Equipped with four screws for secure and reliable connections
• UL listed and CSA certified for safety and compliance

Downloads & Links

• Sales Drawing Asset Reference
• PDF 3D Model Asset Reference
• Catalog Full Asset Reference
• Spec Sheet
• Customer Notices Asset Reference
• STEP 3D Model Asset Reference
• IGS 3D Model Asset Reference
