Features

• Dual rated lugs
• Constructed from high strength aluminum alloy
• Electro tin plating proving low contact resistance

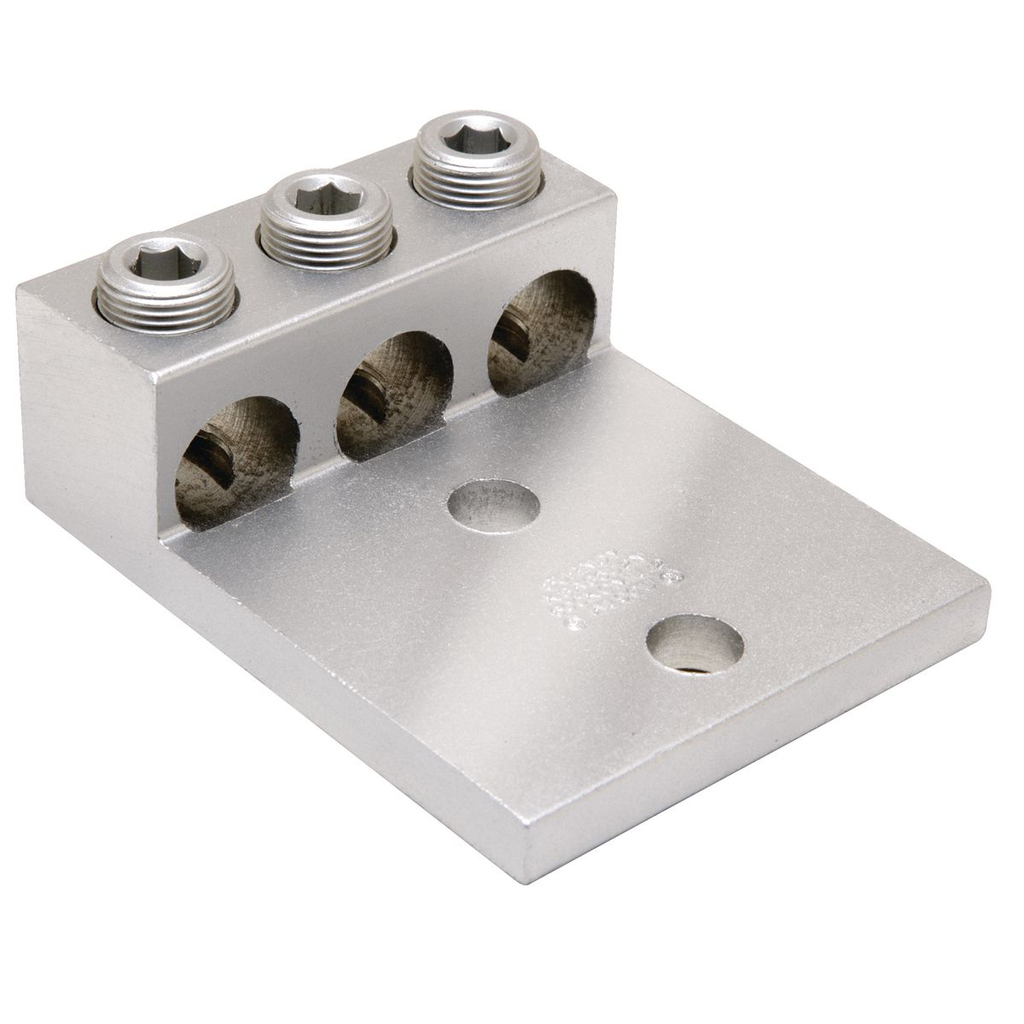

• Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance

Specifications

• Country of Origin: United States
• Buy American Compliant: No
• Conductor - AL Str Size: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - AL Str Size Range: 6 Str.-250 Kcmil
• Conductor - Copper Str Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Size Range: 6 Str.-250 Kcmil
• Description - Slang: 3 Cables to Flat
• Dimension - Bolt Hole Size inch: 0.57 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - D inch: 3.16 in
• Dimension - Height fraction: 1.2 in
• Dimension - Height inch: 1.19 in
• Dimension - Hole Size fraction: 9/16
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 101.6 mm
• Dimension - Length Overall inch: 4.0 in
• Dimension - N inch: 0.63 in
• Dimension - Pad Width inch: 3.01 in
• Dimension - Stud Size inch: 1/2 in
• Dimension - Width fraction: 2-81/100 in
• Dimension - Width inch: 2.81 in
• Dimension - Width mm: 71 mm
• Width: 3.01 in
• Each - Width: 3.01 in
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 275 LBS/in
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Number of Screws: 3
• Physical Attribute - Screw Type: Slot
• Plated: Y
• Plating Type: Tin plated
• Product Type: TERMINAL
• Rating - Minimum Voltage: 600
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Application: For Aluminum and Copper Conductors
• Number of Conductors: 3
• Number of Conductors/Ports (Main/Primary): 3
• Special Features: Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
• Standard: UL 486A-486B
• Sub Brand: UNIVERSAL TERM
• Temperature Rating: 194
• Type: Bolted Lugs & Terminals
• Conductor Size: 6 AWG-250 KCMIL
• Conductor Type: AL C Str-Size;CU C Str-Size
• Connector Type: Parallel Set-Screw
• Number Of Conductors: 3
• ARRA Compliant: No
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: THREE:6STR-250 DUAL RATE
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGGF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Aluminum
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 36
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810601105
• Carton - Total Units: 36 EA
• Case - Number of Sub Packs: 12
• Case - Pack Description: Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack: 30781810601106
• Case - Total Units: 36 EA
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 1.77 lb.
• Package - GTIN - Package: 30781810601106
• Package - Number of Sub Packs: 3
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810601105
• Package - Total Units: 3 EA
• Package Height: 5 in
• Package Length: 3 in
• Package Quantity: 3 EA
• Package Weight: 1.77 lb.
• Package Width: 4.125 in
• Standard Package Quantity: 3

Certifications

• CSA Approved: Yes
• UL Listed Direct Burial: No
• EU RoHS Indicator: No
