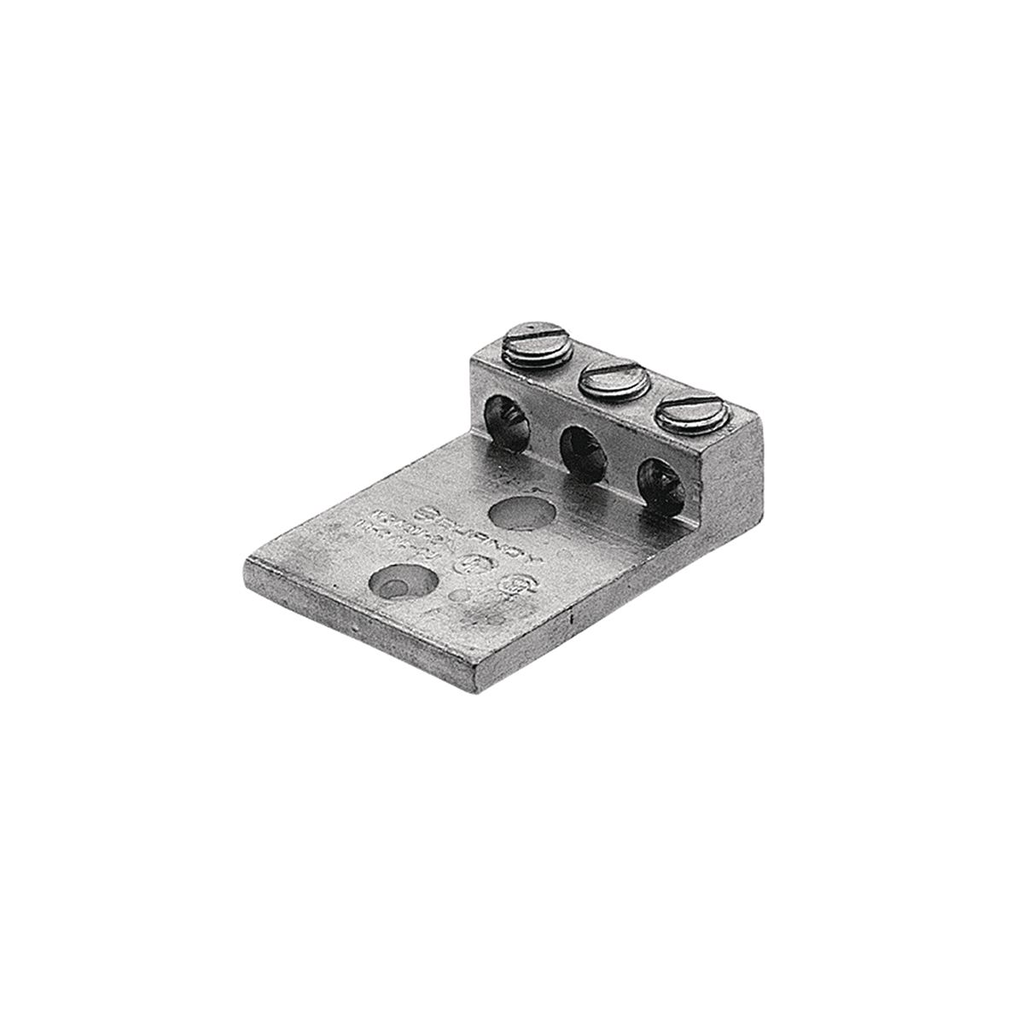

Features

• Dual rated lugs
• Constructed from high strength aluminum alloy
• Electro tin plating proving low contact resistance
• Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - AL Str Size: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
• Conductor - AL Str Size Range: 14 Str.-1/0 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0
• Conductor - Copper Str Size Range: 14 Str.-1/0 AWG
• Description - Slang: 3 Cables to Flat
• Dimension - Bolt Hole Size inch: 0.44 in
• Dimension - Bolt Size fraction: 3/8
• Dimension - D inch: 2.09 in
• Dimension - Height fraction: 7/8 in
• Dimension - Height inch: 0.88 in
• Dimension - Hole Size fraction: 7/16
• Dimension - Hole Size inch: 0.45 in
• Dimension - Hole Size mm: 11 mm
• Dimension - L Length Overall mm: 56 mm
• Dimension - Length Overall inch: 2.19 in
• Dimension - N inch: 0.34 in
• Dimension - Pad Width inch: 2.02 in
• Dimension - Stud Size inch: 3/8 in
• Dimension - Width fraction: 1-47/50 in
• Dimension - Width inch: 1.64 in
• Dimension - Width mm: 49 mm
• Width: 2.02 in
• Each - Width: 2.02 in
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 50 LBS/in
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Number of Screws: 3
• Physical Attribute - Screw Type: Slot
• Plated: Y
• Plating Type: Tin plated
• Product Type: TERMINAL
• Rating - Minimum Voltage: 600
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Application: For Aluminum and Copper Conductors
• Number of Conductors: 3
• Number of Conductors/Ports (Main/Primary): 3
• Number of Ports: 3
• Special Features: Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
• Standard: UL 486A-486B
• Sub Brand: UNIVERSAL TERM
• Temperature Rating: 194
• Type: Bolted Lugs & Terminals
• Conductor Size: 14-1/0 AWG
• Conductor Type: AL C Str-Size;CU C Str-Size
• Connector Type: Parallel Set-Screw
• Number Of Conductors: 3
• Number Of Ports: 3
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: THREE:14STR-1/0STR DUAL
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGGF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Aluminum
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 216
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810370537
• Carton - Total Units: 216 EA
• Case - SCC-14 Next Lower Level Sub Pack: 30781810370538
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 1.2 lb.
• Package - GTIN - Package: 30781810370538
• Package - Number of Sub Packs: 6
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810370537
• Package - Total Units: 6 EA
• Package Height: 3 in
• Package Length: 3 in
• Package Quantity: 6 EA
• Package Weight: 1.2 lb.
• Package Width: 3 in
• Standard Package Quantity: 6

Certifications

• CSA Approved: Yes
• UL Listed Direct Burial: No
• EU RoHS Indicator: Yes
