Features

• Dual rated panelboard lugs
• Constructed from high strength, extruded aluminum alloy
• Electro tin-plated to provide low contact resistance

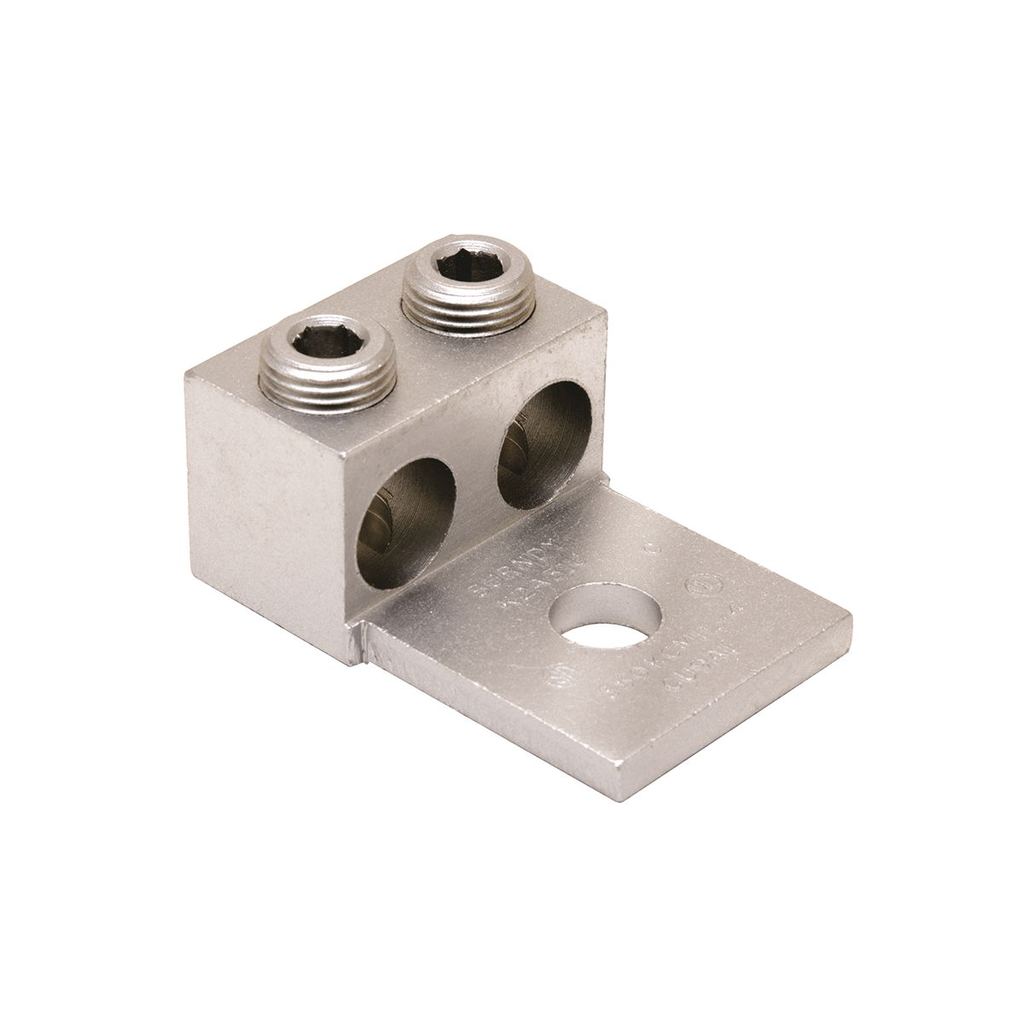

• These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 5/8 IN, Number Of Screws: 1, Dimension T: 0.5 IN, Dimension D: 1.66 IN, Dimension N: 0.88 IN, Installation Torque: 550 IN-LB, Set Screw Type: Allen Key, Length: 3.38 IN, Width: 3.19 IN, Height: 1.94 IN

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - AL Str Size: 300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil
• Conductor - AL Str Size Range: 300-800 kcmil
• Conductor - Copper Str Size: 300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil
• Conductor - Copper Str Size Range: 300-800 kcmil
• Description - Slang: 2 Cables to Flat
• Dimension - Bolt Hole Size inch: 0.63 in
• Dimension - Bolt Size fraction: 5/8
• Dimension - D inch: 1.66 in
• Dimension - Height fraction: 2 in
• Dimension - Height inch: 1.95 in
• Dimension - Hole Size inch: 0.66 in
• Dimension - Hole Size mm: 17 mm
• Dimension - L Length Overall mm: 86 mm
• Dimension - Length Overall inch: 3.38 in
• Dimension - N inch: 0.88 in
• Dimension - Pad Width inch: 3.20 in
• Dimension - Screw Size inch: 3/8
• Dimension - Stud Size inch: 5/8 in
• Dimension - Width fraction: 3-19/100 in
• Dimension - Width inch: 3.20 in
• Dimension - Width mm: 81 mm
• Width: 3.2 in
• Each - Width: 3.2 in
• Hardware Type: 3/8 UNC Slotted Set Screw
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 550 in-lbs
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Screw Type: Slot
• Plated: N
• Plating Type: Tin plated
• Product Type: TERMINAL
• Rating - Minimum Voltage: 600
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Application: For Aluminum And Copper Conductors
• Number of Conductors: 2
• Number of Conductors/Ports (Main/Primary): 2
• Special Features: Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 5/8 IN, Number Of Screws: 1, Dimension T: 0.5 IN, Dimension D: 1.66 IN, Dimension N: 0.88 IN, Installation Torque: 550 IN-LB, Set Screw Type: Allen Key, Length: 3.38 IN, Width: 3.19 IN, Height: 1.94 IN
• Standard: UL 486A-486B
• Sub Brand: UNIVERSAL TERM
• Temperature Rating: 194
• Type: Bolted Lugs & Terminals
• Conductor Size: 300-800 KCMIL
• Conductor Type: AL C Str-Size;CU C Str-Size
• Connector Type: Parallel Set-Screw
• Number Of Conductors: 2
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: TWO:300-800 DUAL RATED
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGGF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Aluminum
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810600252
• Case - SCC-14 Next Lower Level Sub Pack: 30781810600253
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 2.85 lb.
• Package - GTIN - Package: 30781810600253
• Package - Number of Sub Packs: 3
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810600252
• Package - Total Units: 3 EA
• Package Height: 8.875 in
• Package Length: 2.125 in
• Package Quantity: 3 EA
• Package Weight: 2.85 lb.
• Package Width: 5.375 in
• Pallet - GTIN - Package: 70781810600251
• Pallet - Total Units: 30 EA
• Pallet Weight: 0.000 lb.
• Standard Package Quantity: 3

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Listed Direct Burial: No
• UL Recognized: No
• EU RoHS Indicator: Yes
