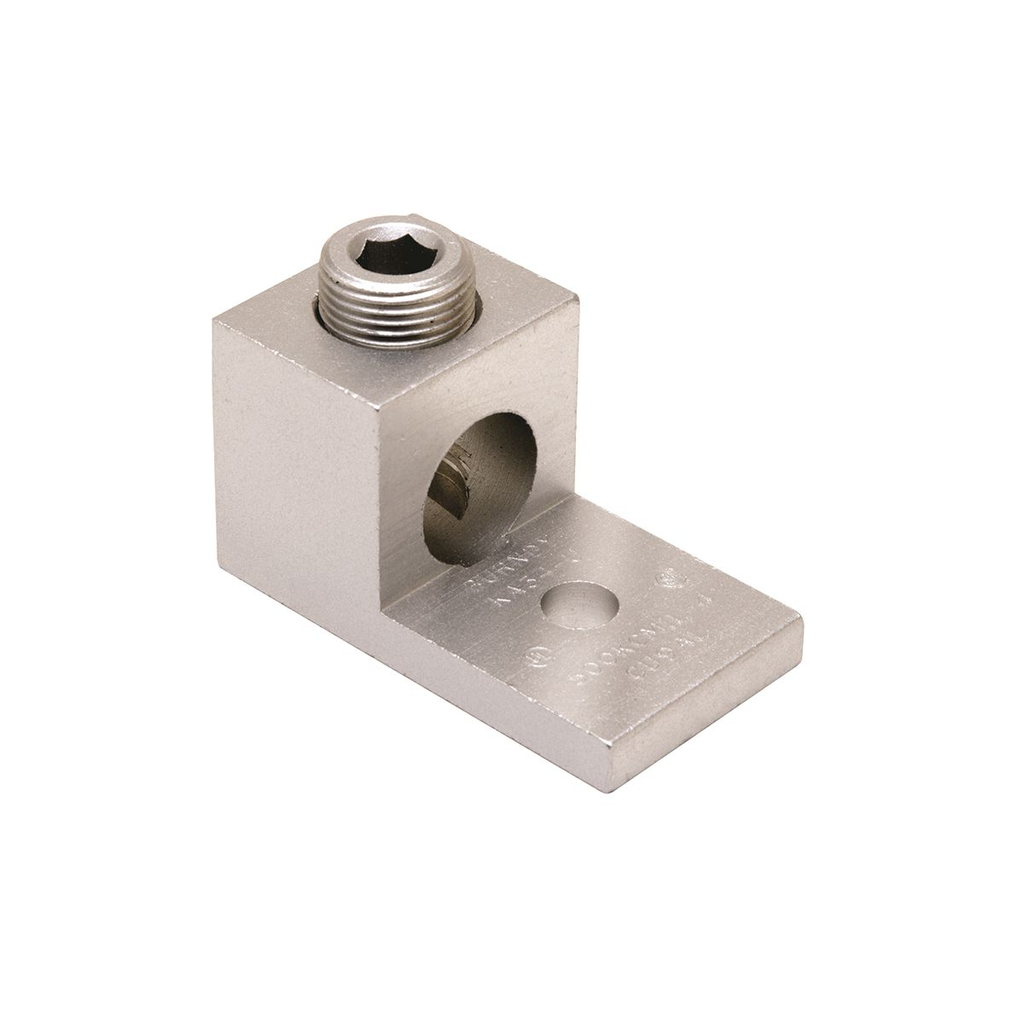

Aluminum Universal Terminal, 1 Hole, 6-2/0 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated - Electrical Terminal

This Aluminum Universal Terminal is designed for secure electrical connections in wire and cable applications involving both aluminum and copper conductors. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, dual-rated terminals for panelboard lugs and other electrical distribution systems. The terminal features a tin-plated aluminum construction to ensure low contact resistance and corrosion resistance.

Specifications

• Application: For Aluminum And Copper Conductors
• Material: Aluminum
• Plating Type: Tin
• Conductor Size Range: 6-2/0 AWG (Stranded)
• Number of Conductors: 1
• Hole Size: 0.27 inches
• Stud Size: 1/4 inch
• Width: 0.64 inches
• Height: 0.80 inches
• Length Overall: 1.47 inches
• Connection Type: Terminal
• Installation Torque: 120 in-lbs
• UL Listed: Yes (UL 486A-486B)
• CSA Approved: Yes
• RoHS Compliance Status: EX
• Country of Origin: Mexico
• Product Weight: 0.0300 lbs

Features

• Dual rated for aluminum and copper conductors
• Constructed from high strength extruded aluminum alloy
• Electro tin-plated finish reduces contact resistance and enhances corrosion resistance
• Single hole and screw design for straightforward installation
• Compatible with 1/4" stud hardware
• Allen screw type for secure fastening
• Meets industry standards UL 486A-486B for safety and performance
• Buy American Compliant
