Specifications

• Height: 4.375 in | 111.125 mm
• Length: 7.75 in | 196.85 mm
• Weight: 4.89238883798882 lbs
• Width: 6.75 in | 171.45 mm

Additional Class Attributes

• Contains DE-OX®: No

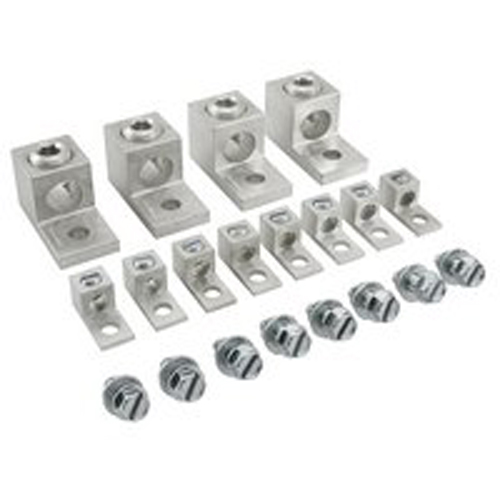

• Includes: (3) TA-250, (22) TA-600, (3) 1/4-20 X 3/4 Bolts, (3) 1/4-20 nuts, (16) 3/8-16-(2) Bolts, (16) 3/8-16 nuts, (16) 3/8 flat washer

Dimensions

• Height BX (IN): 4.25
• Height (mm): 111.125
• Length (mm): 196.85
• Weight BX (LB): 10.1149
• Width BX (IN): 7.75
• Width (mm): 171.45

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum

Environment and Temperature

• Temperature Rating: 90°C

Color

• Color: Silver

Voltage

• Transformer kVA Size: 100 to 167 (1-PHASE), 150 to 300 (3-PHASE)
• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 1
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366987904
