Aluminum Tap Connector for 250 MCM with Cover
SKU: #304083
Part: #GP-250WC
UPC: 662381003041
Aluminum Tap Connector for 250 MCM with Cover
SKU: #304083
Part: #GP-250WC
UPC: 662381003041
Description
Aluminum Tap Connector for 250 MCM with Cover – Wire Termination Solutions

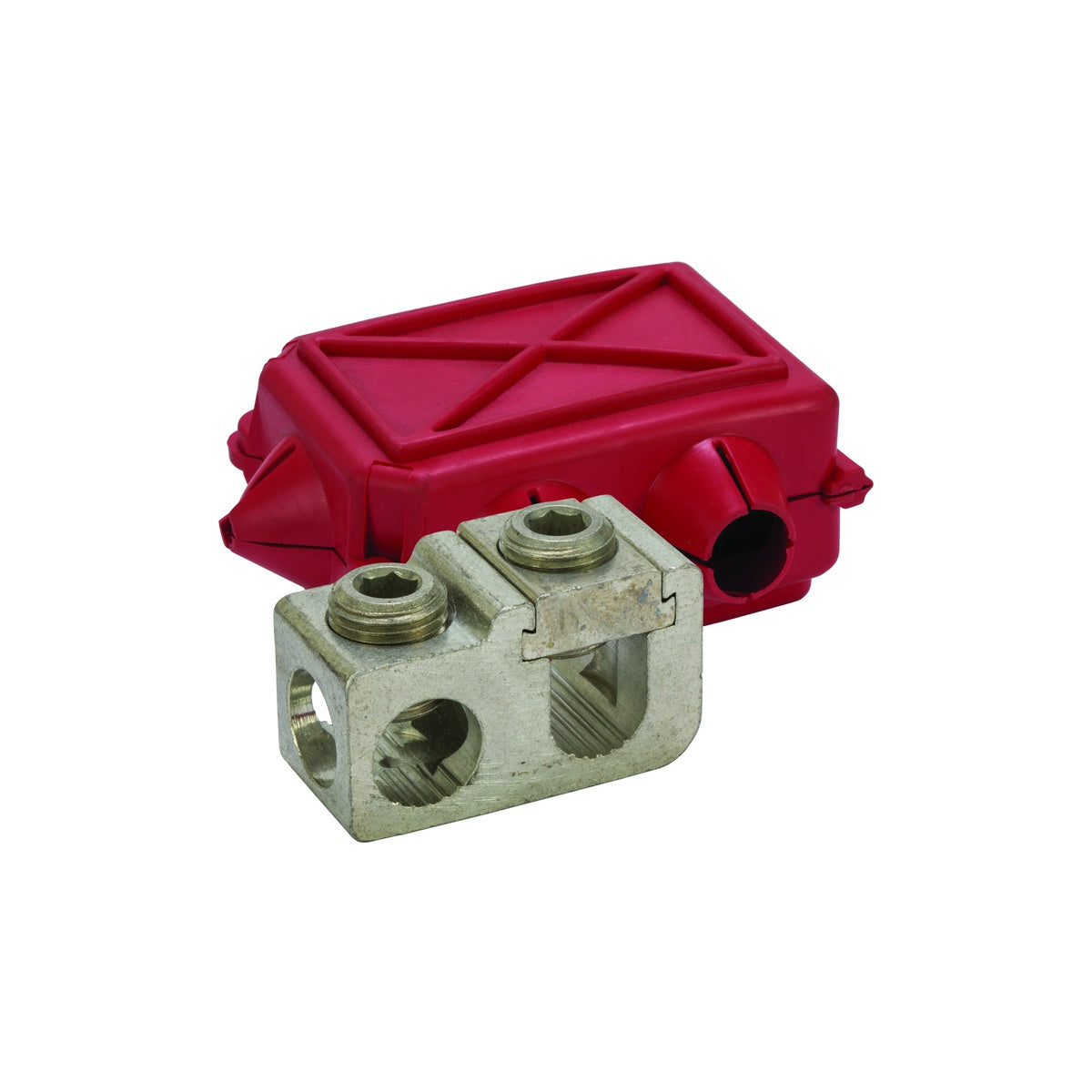

This Aluminum Tap Connector with a red flexible cover is designed for efficient wire termination and tapping off main conductors without cutting, making it suitable for electrical distributors and switchgear suppliers. It supports a main conductor size of 250 MCM to 1/0 AWG and tap conductor sizes from 250 MCM to 6 AWG. The perpendicular tap design allows for parallel or "T" tap configurations, providing versatility in lighting solutions and wire and cable applications.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: GP-250WC
- Material: Aluminum
- Finish: Aluminum
- Color: Red Cover
- Wire Type: AL/CU
- Number of Conductors: 2
- Number of Poles: 1
- Voltage Rating: 600V
- Temperature Rating: 90 degrees Celsius
- Dimensions (L x W x H): 3.44 in x 3.18 in x 1.63 in
- Application: Wire Termination
- Order Minimum: 1
- Product Weight: 0.8 lbs
- Country of Origin: United States
- Made in USA: Yes
Features
- Lay-in feature allows tapping of main conductor without cutting
- Perpendicular tap enables parallel or "T" tap wire entry
- Flexible red cover permits either parallel or "T" tap wire configuration
- Secure snap cover eliminates the need for taping
- Electro-tin plated for low contact resistance
- UL Listed and CSA Certified for wire connector applications
