Aluminum Split Bolt, (Run, Tap):: Al-Al: 500 kcmil, 500 kcmil, Al-Cu: 400 kcmil, 2 AWG (Str), Cu-Cu: 500 kcmil, 2 AWG (Str), Tin Plated
SKU: #331639
Part: #KSA500
UPC: 781810153536
Aluminum Split Bolt, (Run, Tap):: Al-Al: 500 kcmil, 500 kcmil, Al-Cu: 400 kcmil, 2 AWG (Str), Cu-Cu: 500 kcmil, 2 AWG (Str), Tin Plated
SKU: #331639
Part: #KSA500
UPC: 781810153536
Description

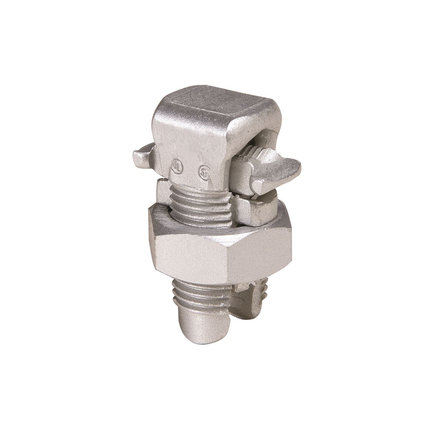

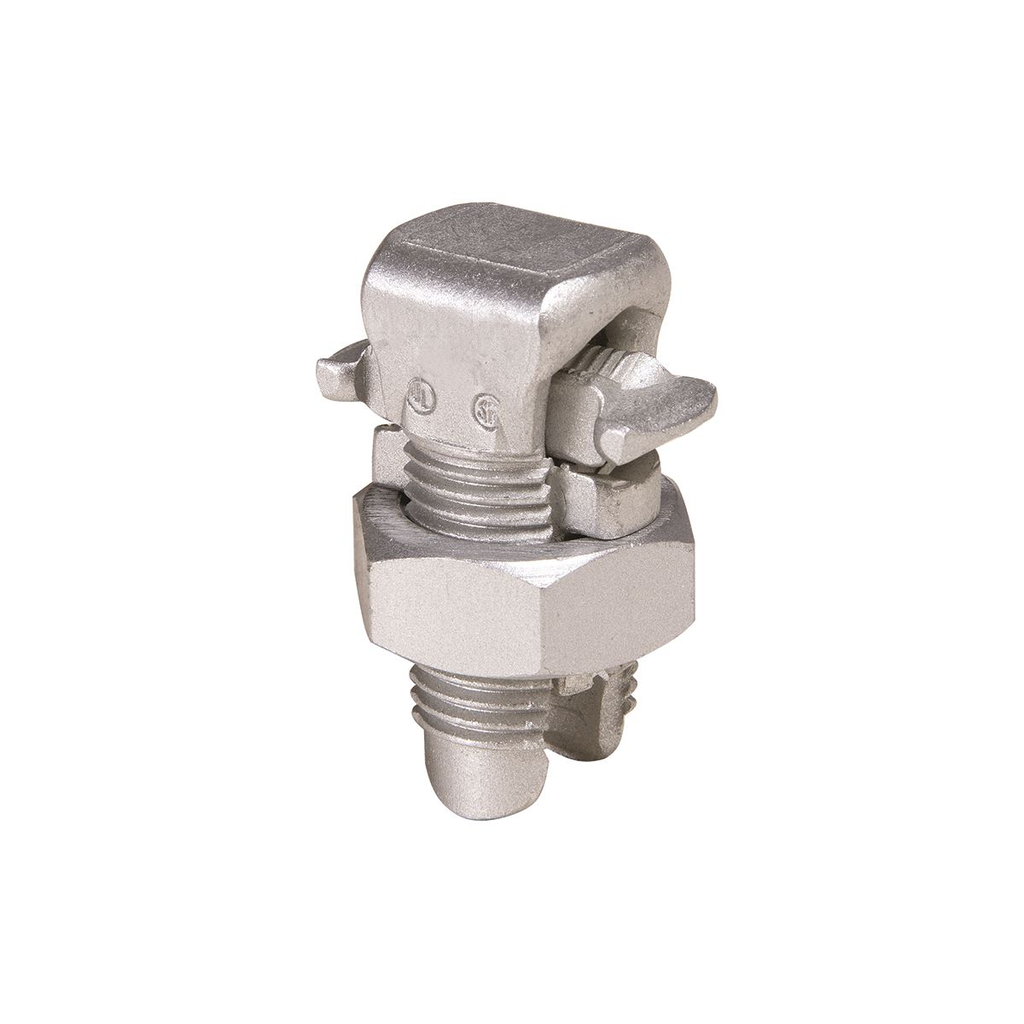

Aluminum Split Bolt Connector – Electrical Wire and Cable Connection
This Aluminum Split Bolt connector is designed for secure electrical connections in wire and cable applications, suitable for aluminum to aluminum, aluminum to copper, and copper to copper conductor combinations. It is tin plated and made from aluminum alloy, providing corrosion resistance and reliable conductivity. This product is ideal for electrical distributors and switchgear suppliers requiring dependable connectors for various conductor sizes in lighting solutions and electrical wiring systems.
Specifications
- Application: For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated
- Material: Aluminum Alloy
- Connection Type: Split Bolt
- Width: 2.52 in
- Product Weight: 0.6400 lb
- Insulation: Yes
- Made in USA: Yes
- Country of Origin: United States
- Manufacturer: Burndy
- Manufacturer Part #: KSA500
Features
- Tin plated finish for enhanced corrosion resistance
- Compatible with conductor sizes: Al-Al up to 500 kcmil, Al-Cu up to 400 kcmil, Cu-Cu up to 500 kcmil and down to 2 AWG stranded
- UL 486B and CSA C22.2 No. 65 listed for safety and reliability
- Designed for use in electrical distribution, lighting solutions, and wire and cable connections
