Morris Products
Aluminum Splices/Reducers 4 Screw 500MCM-3/0
SKU: #276749
Part: #90620
UPC: 601986906203
Morris Products
Aluminum Splices/Reducers 4 Screw 500MCM-3/0
SKU: #276749
Part: #90620
UPC: 601986906203
Description

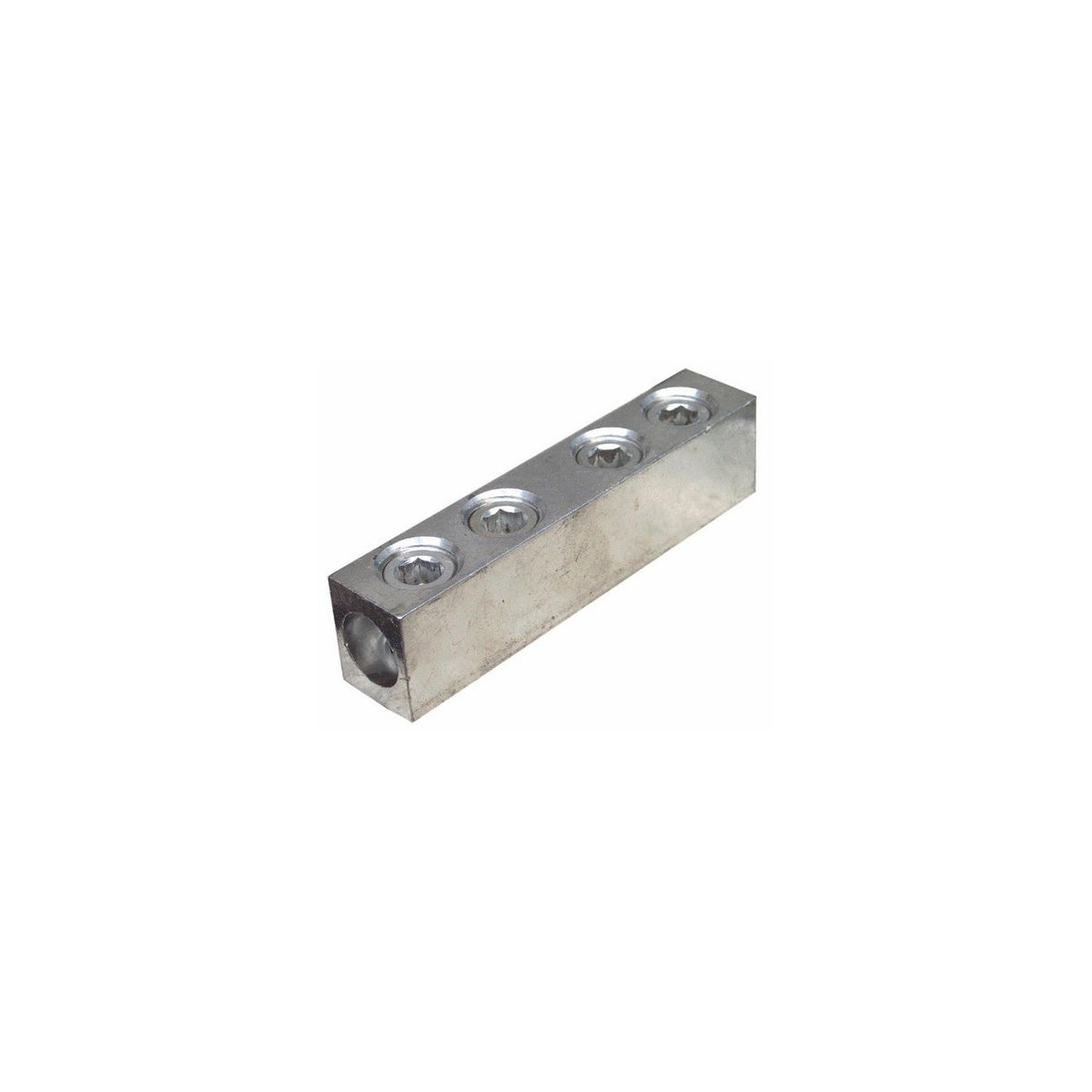

Aluminum Splices/Reducers 4 Screw 500MCM-3/0 – Aluminum Mechanical Splice
This aluminum splice/reducer is designed for electrical distributors and switchgear suppliers requiring reliable connections for copper and aluminum conductors. It facilitates secure mechanical splicing of wire and cable in lighting solutions and electrical installations, supporting wire ranges from 500 MCM to 3/0 AWG.
Specifications
- Material: 6061-T6 High Conductivity Aluminum
- Screw Type: Steel Hex Head
- Wire Range: 500 MCM - 3/0 AWG
- Voltage Rating: 600 V
- Box Quantity: 3
- Dimensions (L x W x H): 4.19 in x 1.36 in x 1.5 in
- UL Certification: UL 486B AL9CU
- cUL Certified: Yes
- RoHS Compliant: Yes
- Product Weight: 0.9280 lbs
Features
- Manufactured from high strength, high conductivity 6061-T6 aluminum alloy
- Steel set screws provide secure mechanical connection
- Dual rated for copper and aluminum conductors
