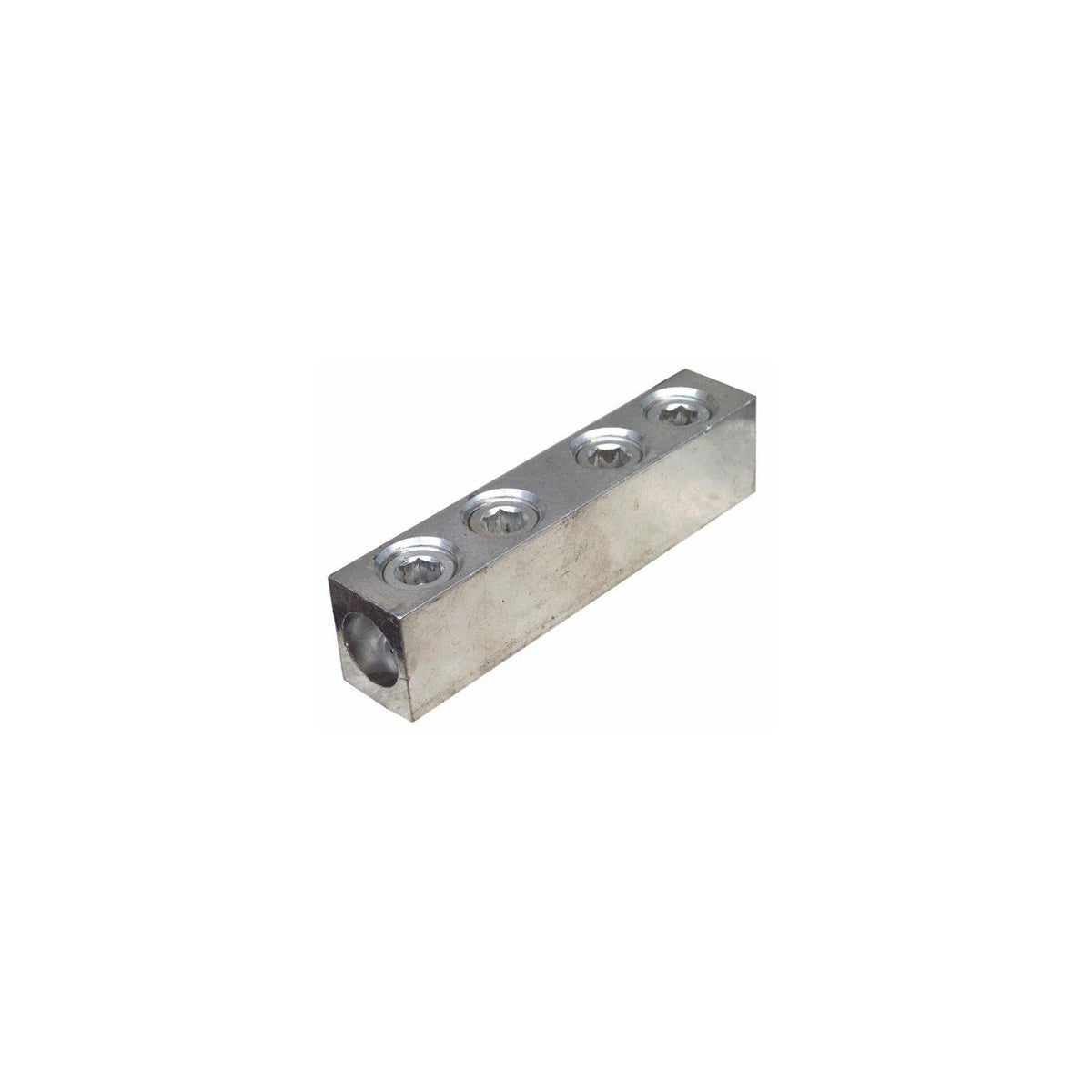

Aluminum Splices/Reducers 4 Screw 250MCM-#6 – Aluminum Mechanical Splice

This aluminum splice is designed for electrical distributors and switchgear suppliers requiring reliable connections between copper and aluminum cables. It serves as a mechanical splice and reducer, suitable for wire and cable applications in lighting solutions and general electrical distribution systems.

Specifications

• Material: 6061-T6 High Conductivity Aluminum
• Screw Type: Steel Hex Head
• Wire Range: 4/0-250 MCM to #6 AWG
• Voltage Rating: 600 V
• Box Quantity: 10
• Dimensions (L x W x H): 3.94 in x 1 in x 1.13 in
• UL Certification: UL 486B AL9CU
• cUL Certification: Yes
• RoHS Compliant: Yes
• Product Weight: 0.4690 lbs

Features

• Manufactured from high strength, high conductivity 6061-T6 aluminum alloy
• Steel set screws provide secure mechanical connection
• Dual rated for use with both copper and aluminum conductors

Downloads & Links

• Spec Sheet
