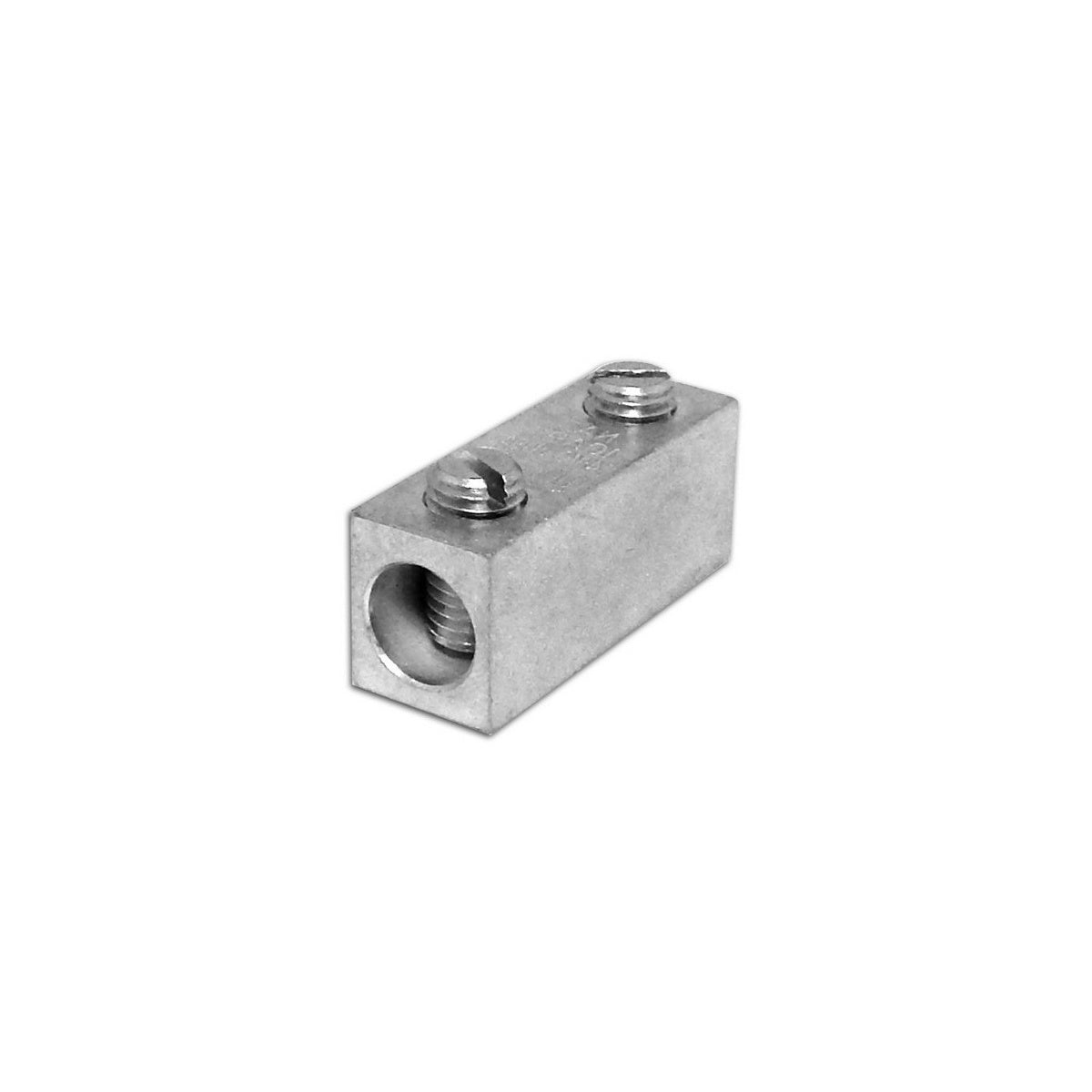

Aluminum Splices/Reducers 2 Screw #2-#14 – Aluminum Mechanical Splice

This aluminum splice is designed for electrical distributors and lighting solutions requiring reliable wire and cable connections. It serves as a mechanical splice and reducer for copper and aluminum conductors, suitable for use in switchgear assemblies and general electrical wiring applications.

Specifications

• Material: 6061-T6 High Conductivity Aluminum
• Screw Type: Steel Hex Head Set Screws
• Wire Range: #2 AWG to #14 AWG
• Voltage Rating: 600 V
• Certification: UL 486B AL9CU, cUL, RoHS Compliant
• Dimensions (L x W x H): 1.12 in x 0.44 in x 0.5 in
• Box Quantity: 50
• Product Weight: 0.0380 lbs

Features

• Manufactured from high strength, high conductivity 6061-T6 aluminum alloy
• Steel set screws provide secure mechanical connection
• Dual rated for copper and aluminum conductors

Downloads & Links

• Spec Sheet
