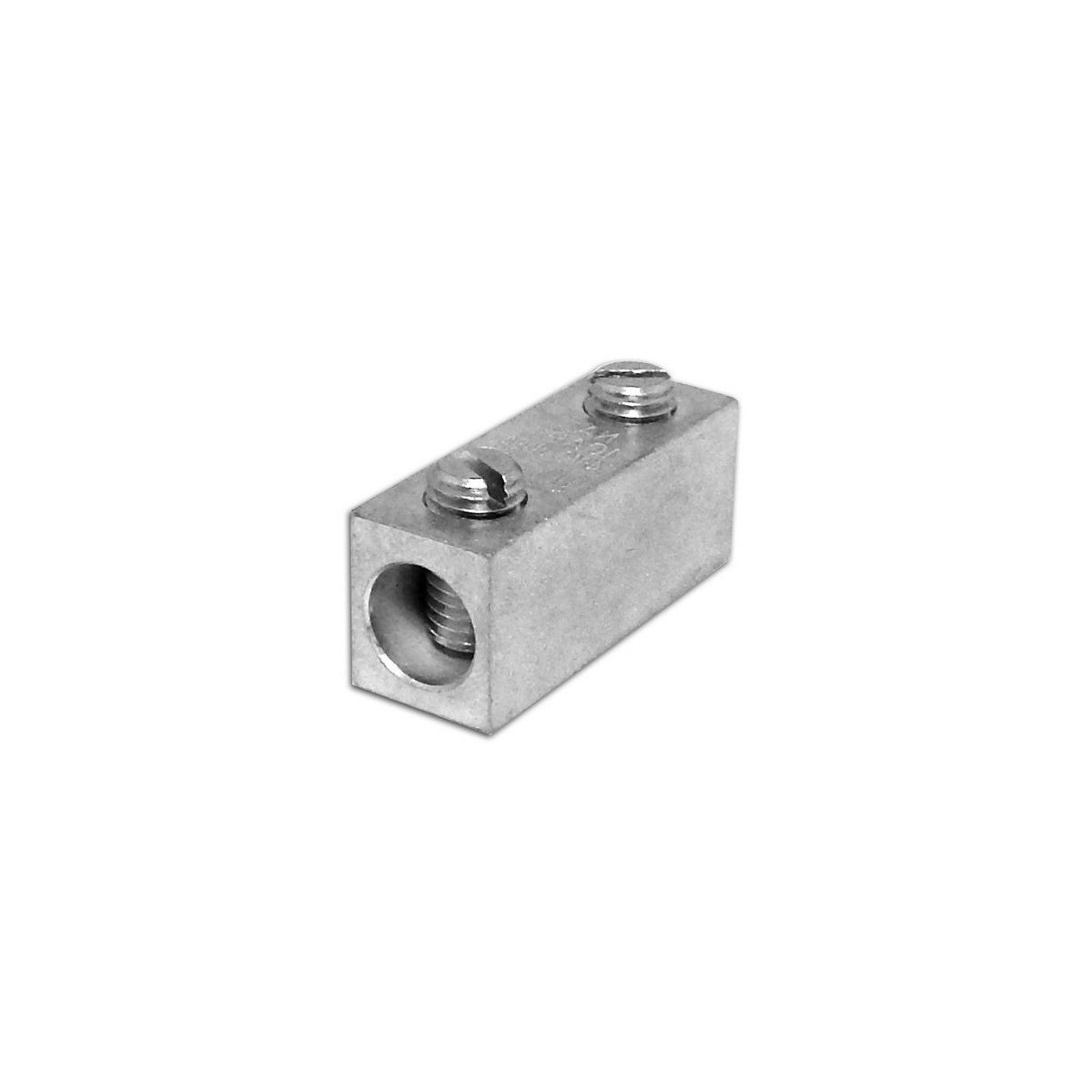

Aluminum Splices/Reducers 2 Screw 2/0-#8 Mechanical Splice

This aluminum mechanical splice is designed for reliable electrical connections in wire and cable applications. Manufactured from high conductivity 6061-T6 aluminum alloy, it is suitable for use by electrical distributors and switchgear suppliers requiring durable splicing solutions compatible with both copper and aluminum conductors.

Specifications

• Material: 6061-T6 High Conductivity Aluminum
• Screw Type: Steel Hex Head
• Voltage Rating: 600 V
• Wire Range: #14 AWG to 1/0
• UL Certification: UL 486B AL9CU
• cUL: Yes
• RoHS Compliant: Yes
• Product Weight: 0.0660 lbs

Features

• Manufactured from high strength, high conductivity aluminum alloy
• Steel set screws for secure mechanical connection
• Dual rated for copper and aluminum conductors

Downloads & Links

• Spec Sheet
