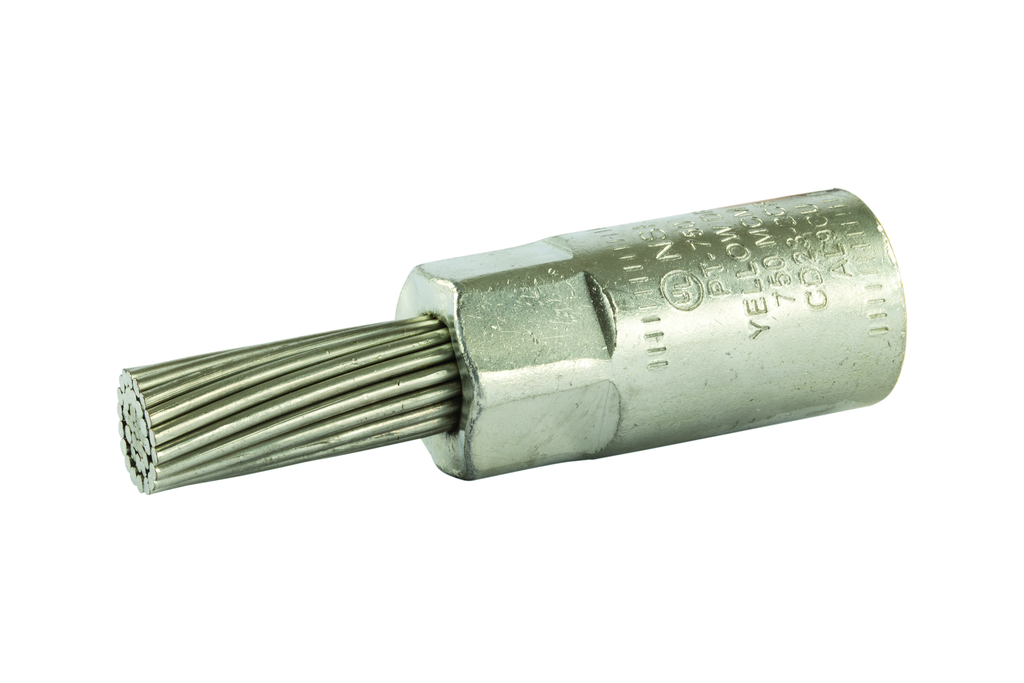

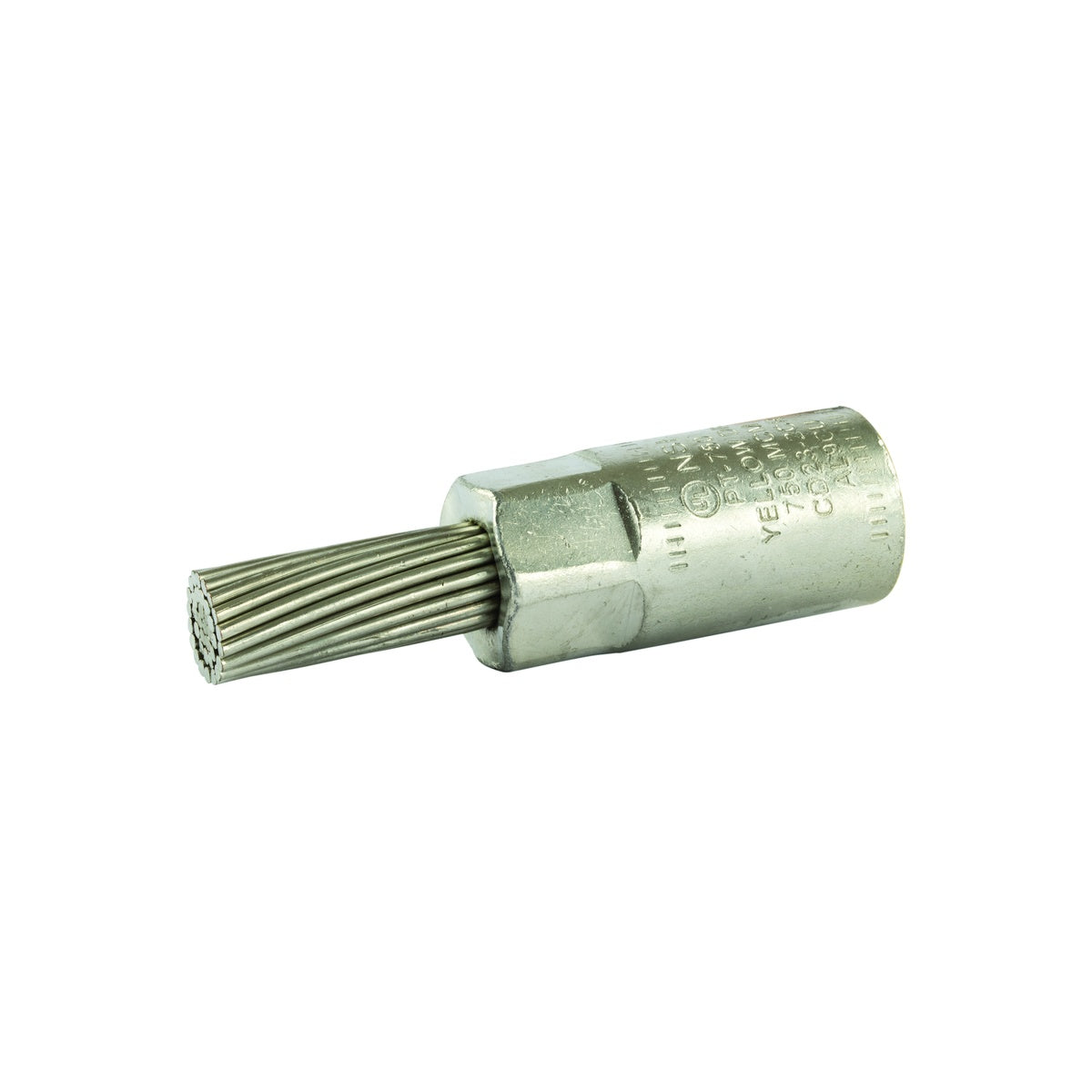

Aluminum Pin Terminal Cu Pin 750 MCM – Bi-Metallic Compression Connector

The Aluminum Pin Terminal Cu Pin 750 MCM is a stranded bi-metallic pin terminal designed for terminating aluminum conductors in electrical distribution and lighting solutions. This connector features a tin-plated stranded copper pin and is supplied with an EPDM insulating cover, making it suitable for use by wire and cable distributors and switchgear suppliers. It is UL 486B listed and rated for 600 volts, providing reliable performance in industrial and commercial electrical applications.

Specifications

• Conductor Range: 750 MCM (Stranded)
• Material: Aluminum with Tin Plated Copper Pin
• Finish: Aluminum
• Color: Yellow
• Insulation: Plastisol Cover
• Connection: 500 Pin
• Number of Poles: 1
• Number of Conductors: 1
• Dimensions: 5.01 inches (Length) x 1.48 inches (Width) x 1.48 inches (Height)
• Maximum Temperature: 194 degrees Fahrenheit (90°C)
• Voltage Rating: 600 Volts Max
• UL Listing: UL 486B
• Country of Origin: India
• Product Weight: 2.46 lbs
• Manufacturer: NSI Industries
• Manufacturer Part Number: PT750

Features

• Designed to facilitate termination of aluminum conductors
• Tin-plated stranded copper pin for improved conductivity and corrosion resistance
• Connector bores coated with oxide inhibitor to prevent corrosion
• Supplied with EPDM insulating cover for electrical insulation and protection
• UL 486B listed for wire connectors ensuring compliance with safety standards

Downloads & Links

• Spec Sheet
