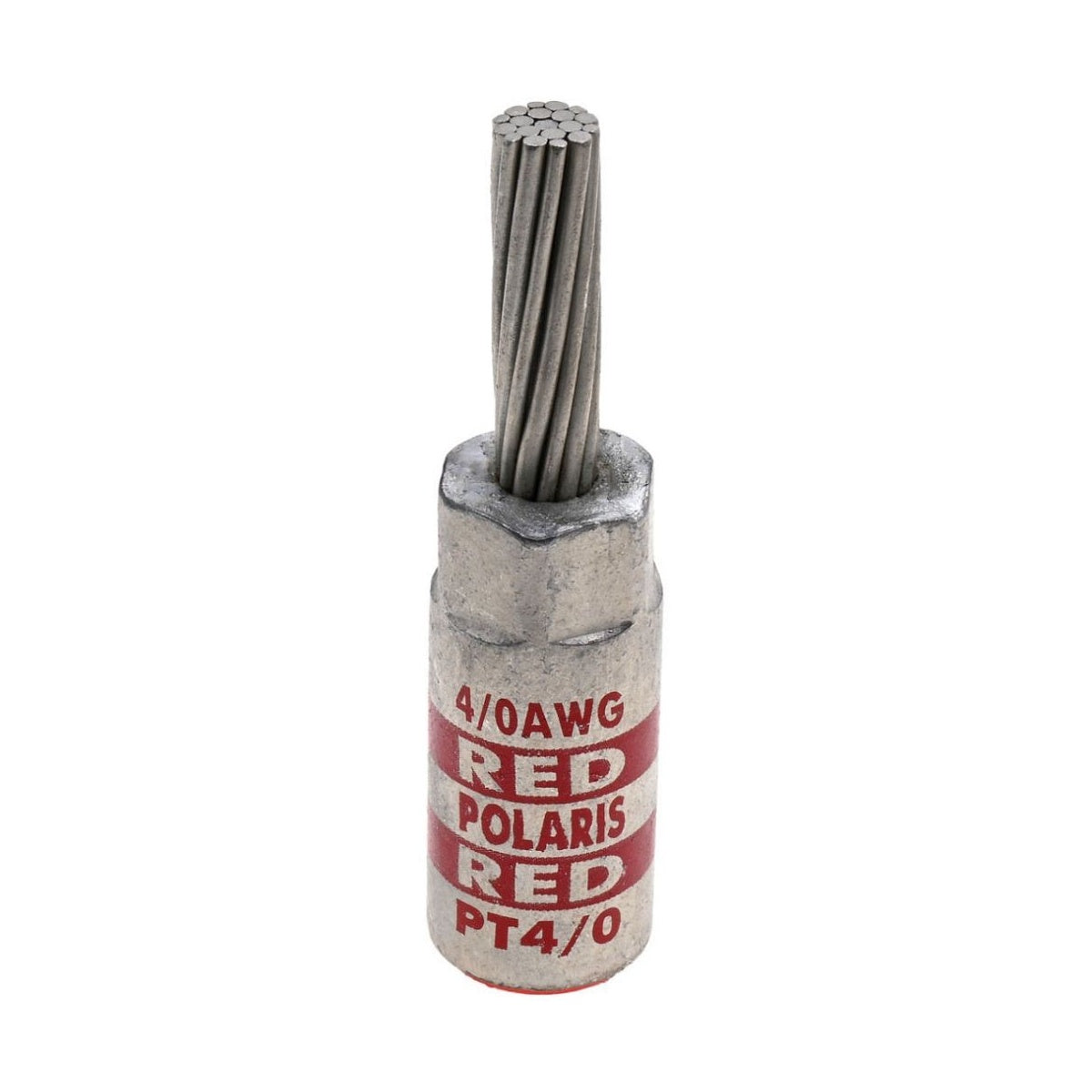

Aluminum Pin Terminal Cu Pin 4/0 AWG
SKU: #305432
Part: #PT4/0
UPC: 662381033079
Aluminum Pin Terminal Cu Pin 4/0 AWG
SKU: #305432
Part: #PT4/0
UPC: 662381033079
Description
Aluminum Pin Terminal Cu Pin 4/0 AWG – Electrical Connector
This Aluminum Pin Terminal with a copper pin is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. It is suitable for use with 4/0 AWG stranded aluminum conductors, providing a reliable connection with its bi-metallic construction and tin-plated copper pin. The terminal is UL 486B listed and rated for 600 volts, making it appropriate for professional electrical installations.
Specifications
- Conductor Range: 4/0 AWG (Stranded)
- Material: Aluminum with Tin Plated Copper Pin
- Finish: Tin Plated
- Insulation: Plastisol Cover (EPDM insulating cover)
- Connection Type: 2/0 Pin
- Voltage Rating: 600 volts
- Maximum Temperature: 194 degrees Fahrenheit (90°C)
- Dimensions: Length 3.52 in, Width 0.91 in, Height 0.91 in
- Number of Poles: 1
- Number of Conductors: 1
- Product Weight: 2.4 lbs
- UL Listing: UL 486B
- Country of Origin: India
- Manufacturer: NSI Industries
- Manufacturer Part Number: PT4/0
Features
- Stranded bi-metallic design facilitates termination of aluminum conductors
- Tin-plated stranded copper pin enhances conductivity and corrosion resistance
- Connector bores coated with oxide inhibitor to prevent oxidation
- Supplied with EPDM insulating cover for electrical insulation and protection
- Compatible with UL listed crimping tools and dies for secure installation
