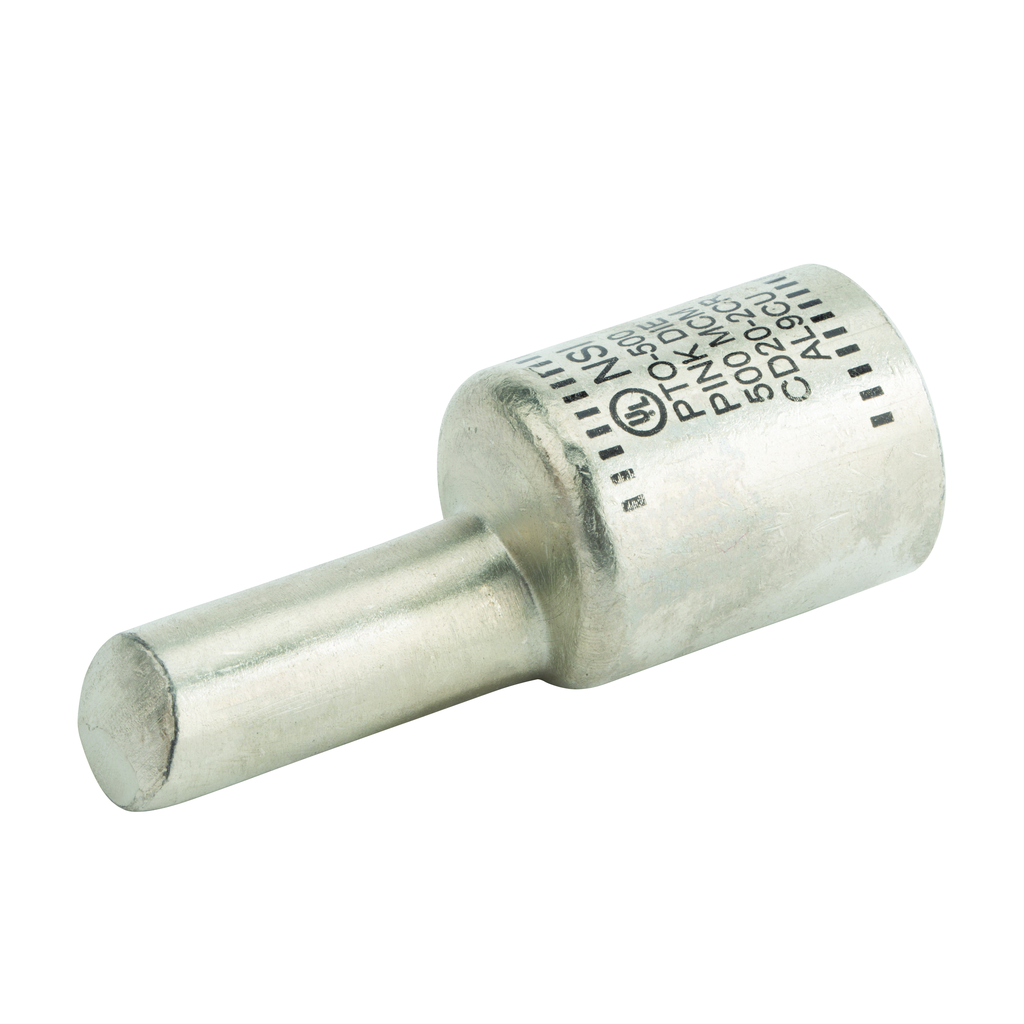

Aluminum Pin Terminal Al Pin OS 500 MCM – Electrical Connector

The Aluminum Pin Terminal Al Pin OS 500 MCM is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. This all-aluminum pin terminal supports both aluminum and copper conductors, making it suitable for wire and cable applications requiring reliable connections in tight spaces. The product is ideal for use by electrical distributors and switchgear suppliers requiring durable and efficient terminations rated for 600 volts.

Specifications

• Material: Aluminum
• Finish: Tin Plated
• Color: Pink
• Conductor Range: 500 MCM (STR)
• Connection: 350 Pin
• Insulation: Plastisol Cover
• Voltage Rating: 600 Volts
• Max. Temperature: 194 degrees Fahrenheit (90¬∞C)
• Dimensions: 3.39 inches (Length) x 1.31 inches (Width) x 1.31 inches (Height)
• Number of Poles: 1
• Number of Conductors: 1
• Product Weight: 2.0 lbs
• Country of Origin: India
• Manufacturer: NSI Industries
• Manufacturer Part #: PTO-500

Features

• Offset solid aluminum pin for ease of installation in side-by-side terminations and tight spaces
• Pre-filled with oxide inhibitor to prevent corrosion and ensure long-lasting electrical contact
• Tin-plated pin enhances conductivity and corrosion resistance
• Plastisol cover provides insulation and protection
• Suitable for terminating both aluminum and copper conductors
• Compliant with UL standards for safe and reliable electrical connections
