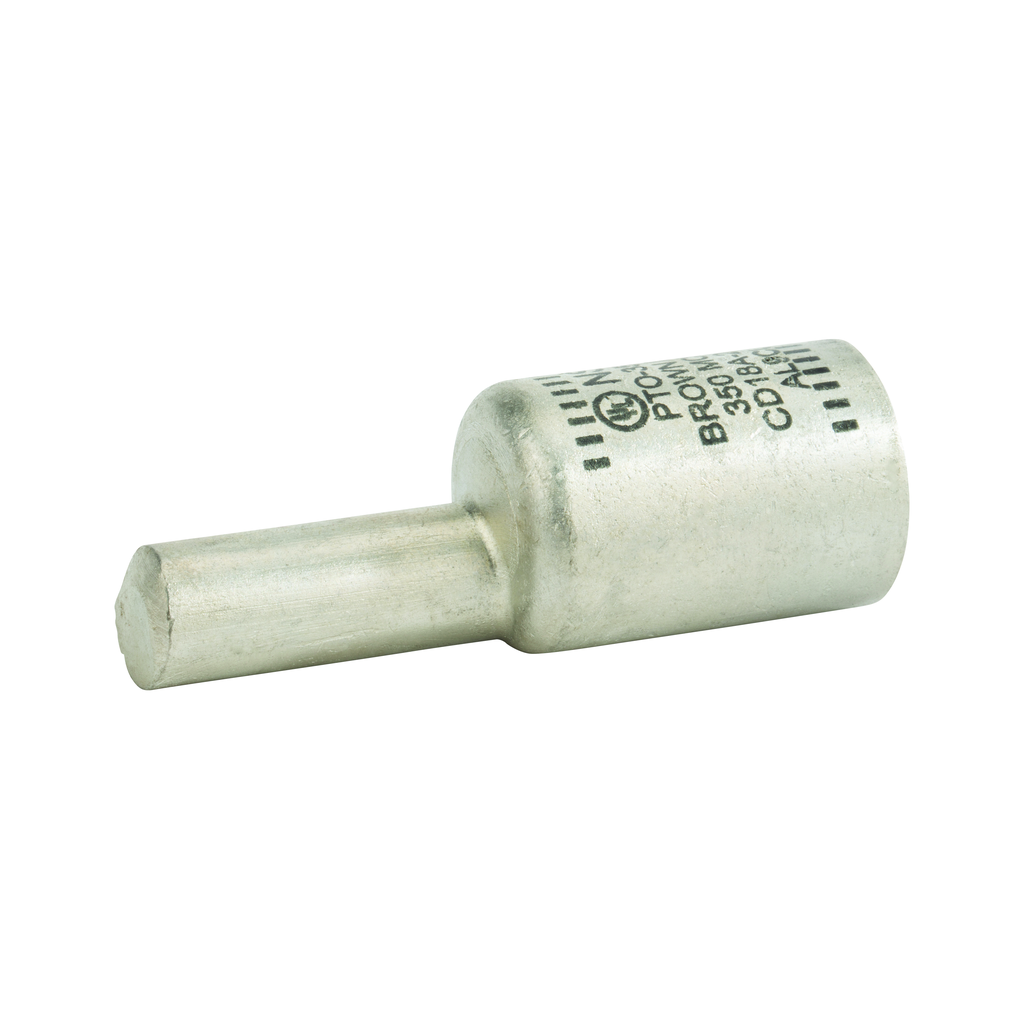

Aluminum Pin Terminal Al Pin OS 350 MCM – Electrical Connector

The Aluminum Pin Terminal Al Pin OS 350 MCM is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, this all-aluminum pin terminal features an offset solid pin for use in tight spaces and ease of installation in side-by-side terminations. It is suitable for both aluminum and copper conductors, making it a versatile component for switchgear suppliers and lighting solutions providers.

Specifications

• Material: Aluminum
• Finish: Tin Plated
• Color: Brown
• Conductor Range: 350 MCM (STR)
• Connection: 250 Pin
• Insulation: Plastisol Cover
• Voltage Rating: 600 Volts
• Maximum Temperature: 194 degrees Fahrenheit (90¬∞C)
• Dimensions: 3.09 inches (Length) x 1.09 inches (Width) x 1.09 inches (Height)
• Number of Poles: 1
• Number of Conductors: 1
• Country of Origin: India
• Manufacturer Part Number: PTO-350
• Product Weight: 1.6 lbs

Features

• Offset pin design facilitates installation in confined spaces and side-by-side terminations
• Pre-filled with oxide inhibitor to prevent corrosion and ensure reliable electrical contact
• Tin-plated aluminum pin enhances conductivity and corrosion resistance
• Includes a plastisol cover for quick and safe installation
• UL approved for use with appropriate crimping tools and dies (refer to NSI installation guidelines)
• Compatible with both aluminum and copper conductors

Downloads & Links

• Spec Sheet
