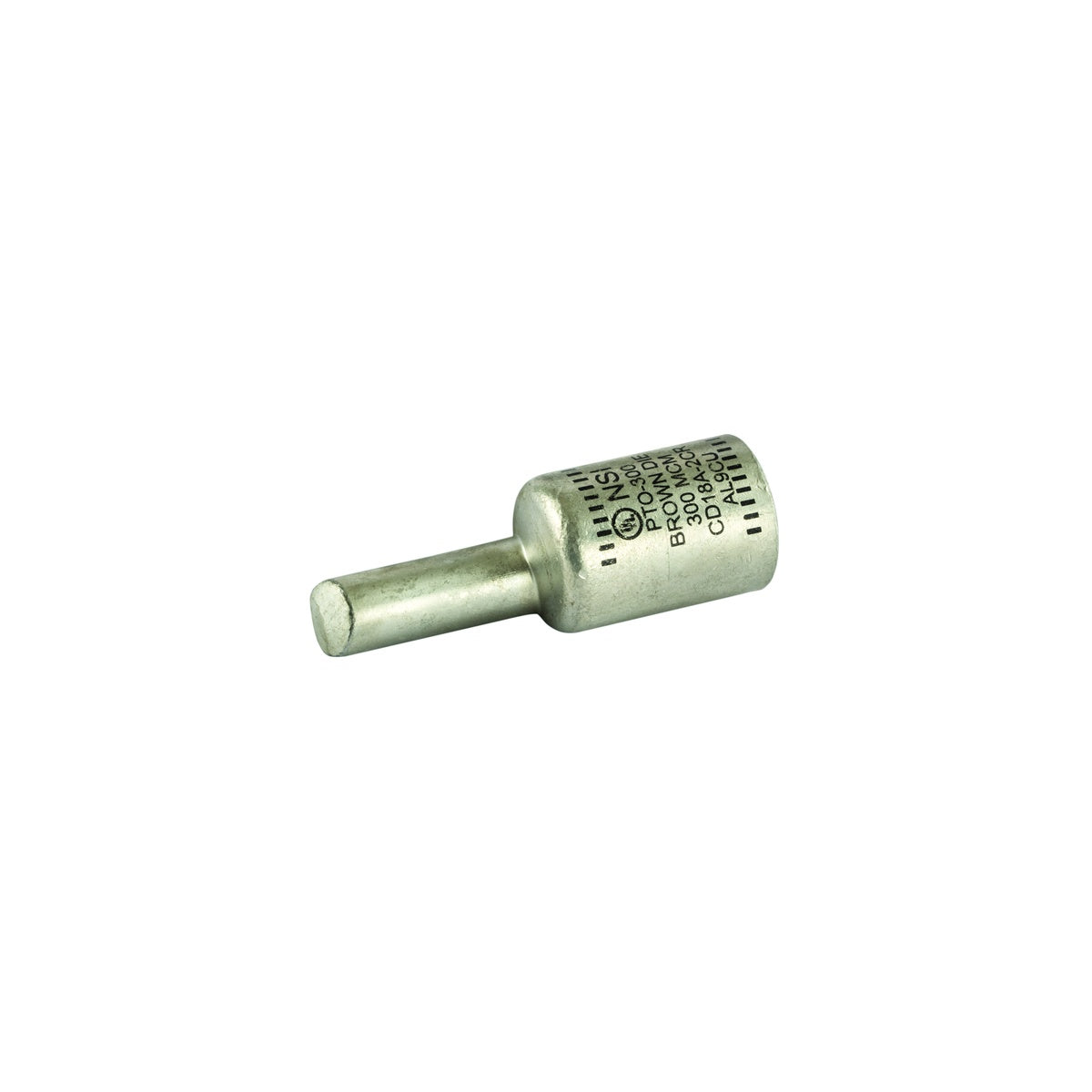

Aluminum Pin Terminal Al Pin OS 300 MCM – Electrical Connector

The Aluminum Pin Terminal Al Pin OS 300 MCM is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. This all-aluminum pin terminal supports both aluminum and copper conductors, providing a reliable connection for wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable and efficient termination components.

Specifications

• Material: Aluminum
• Finish: Tin Plated
• Color: Brown
• Conductor Range: 300 MCM (STR)
• Connection: 1/0 Pin
• Insulation: Plastisol Cover
• Voltage Rating: 600 Volts
• Max. Temperature: 194 degrees Fahrenheit (90¬∞C)
• Dimensions (L x W x H): 3.09 in x 1.09 in x 1.09 in
• Number of Poles: 1
• Number of Conductors: 1
• Product Weight: 1.6 lbs
• Country of Origin: India
• Manufacturer: NSI Industries
• Manufacturer Part #: PTO-300

Features

• Offset solid aluminum pin for use in tight spaces and side-by-side terminations
• Tin-plated pin pre-filled with oxide inhibitor for enhanced corrosion resistance
• Includes a plastisol cover for quick and secure installation
• Compatible with both aluminum and copper conductors
• UL approved for safe and reliable electrical connections
