Aluminum Pin Terminal Al Pin 750 MCM – Electrical Connector

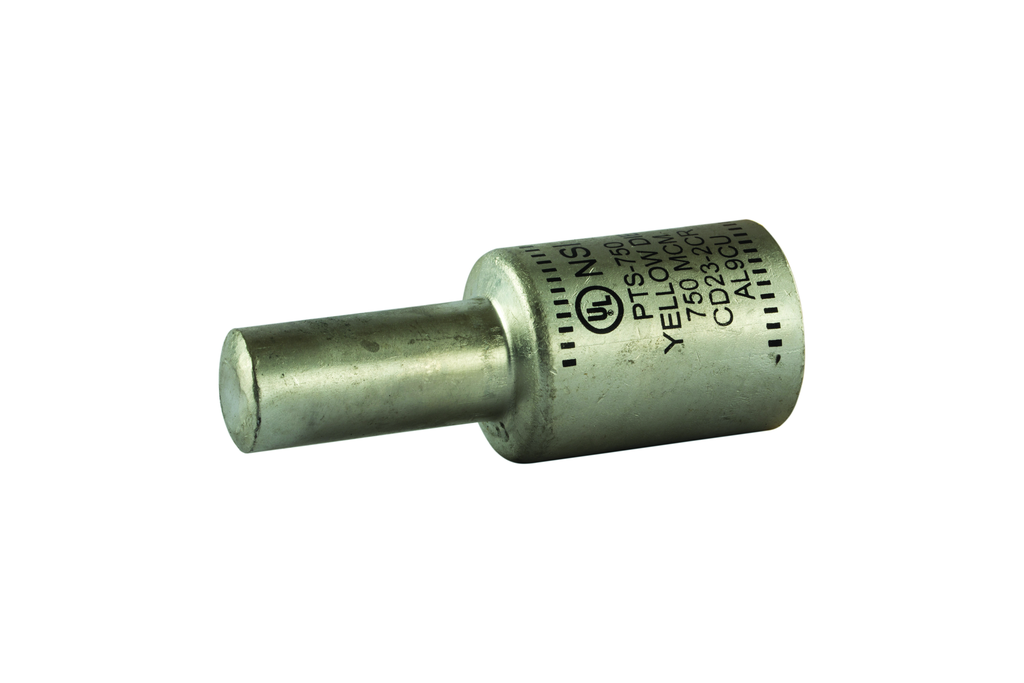

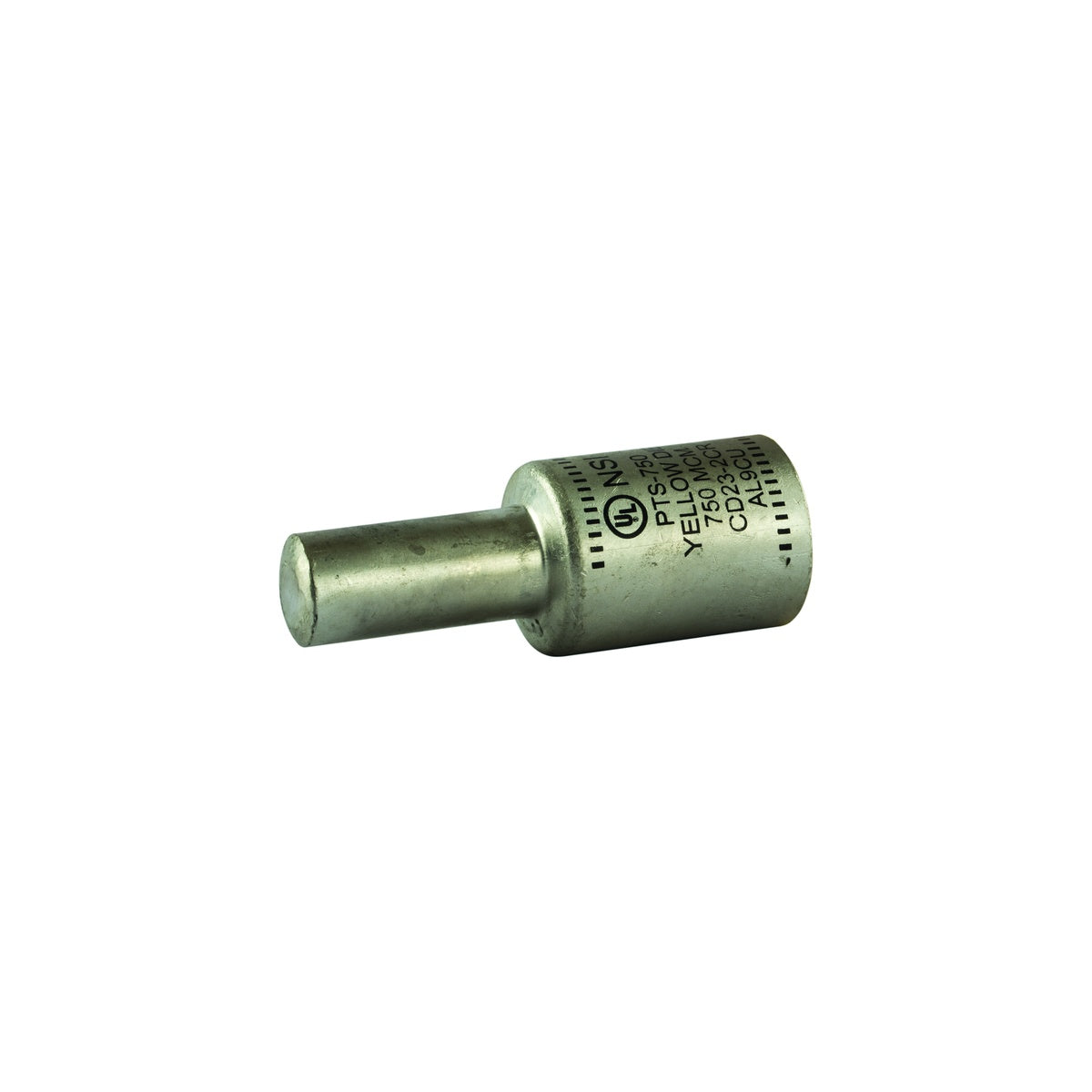

The Aluminum Pin Terminal Al Pin 750 MCM by NSI Industries is a solid pin terminal designed for terminating both aluminum and copper conductors. It is suitable for use in electrical distribution, wire and cable termination, and lighting solutions where reliable power connection is required. This product is ideal for electrical distributors and switchgear suppliers needing a robust connector rated for up to 600 volts.

Specifications

• Application: Terminate, Splice, Tap Power Connectors
• Conductor Range: 750 MCM (STR)
• Material: Aluminum
• Finish: Tin Plated
• Insulation: Plastisol Cover
• Connection: 500 Pin
• Voltage Rating: 600 Volts
• Max. Temperature: 194 degrees Fahrenheit (90 °C)
• Number of Poles: 1
• Number of Conductors: 1
• Dimensions: Length 3.79 in, Width 1.46 in, Height 1.46 in
• Product Weight: 1.14 lbs
• Country of Origin: India
• Manufacturer: NSI Industries
• Manufacturer Part #: PTS750

Features

• All-aluminum pin terminal suitable for both aluminum and copper conductors
• Solid aluminum pin, tin-plated for low contact resistance and oxidation protection
• Pre-filled with oxide inhibitor to prevent corrosion
• Color-coded plastisol cover for quick and easy installation
• UL486A/B Listed for wire connector adapter compliance
• Designed for use in tight applications with reliable connection performance

Downloads & Links

• Spec Sheet
