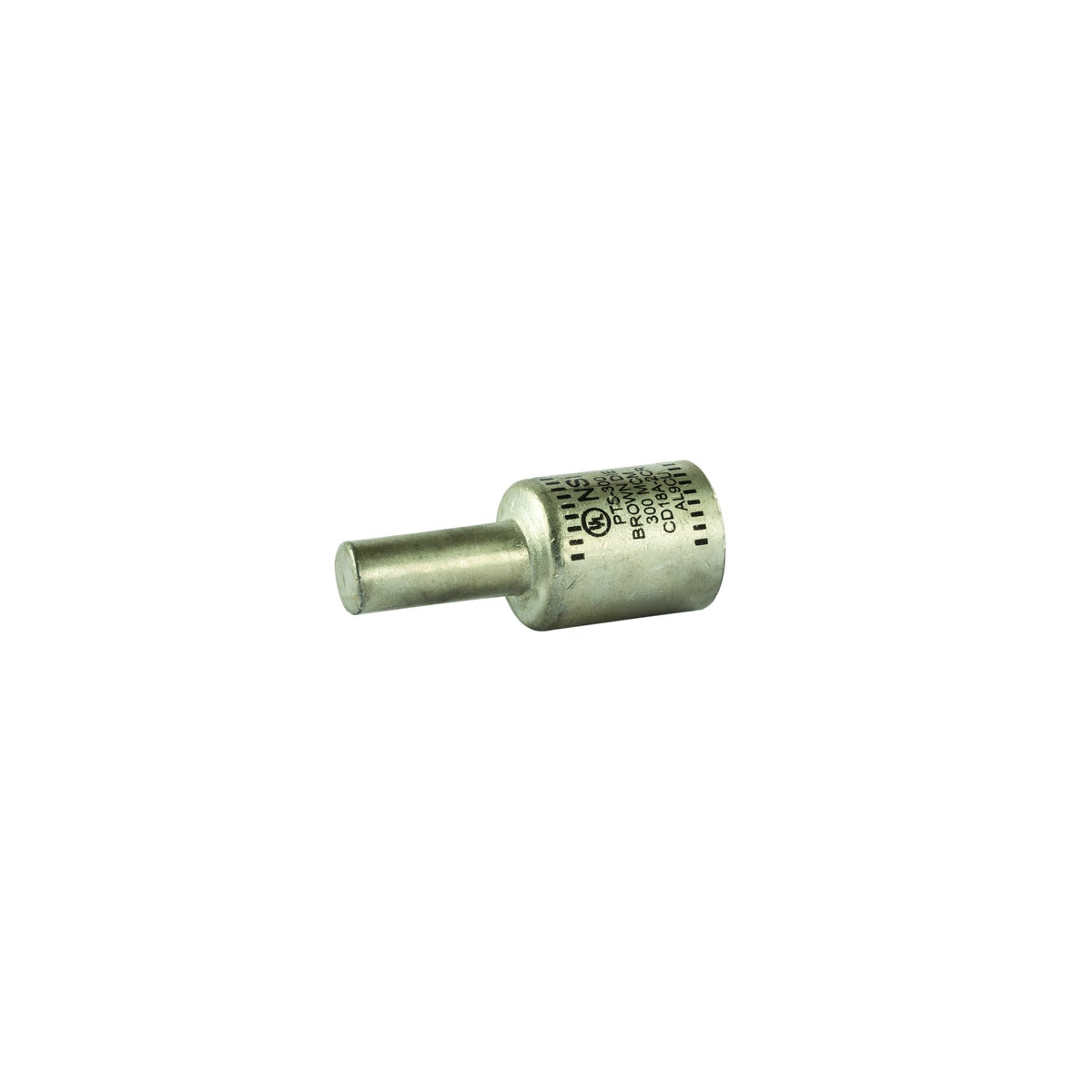

Aluminum Pin Terminal Al Pin 300 MCM
SKU: #305465
Part: #PTS300
UPC: 662381033499
Aluminum Pin Terminal Al Pin 300 MCM
SKU: #305465
Part: #PTS300
UPC: 662381033499
Description
Aluminum Pin Terminal Al Pin 300 MCM – Electrical Connector
The Aluminum Pin Terminal Al Pin 300 MCM is a solid pin terminal designed for terminating both aluminum and copper conductors. Suitable for applications requiring termination, splicing, and tapping of power connectors, this component is ideal for electrical distributors and lighting solutions providers handling wire and cable connections. It features a tin-plated aluminum pin pre-filled with oxide inhibitor and is rated for 600 volts, ensuring reliable electrical performance and oxidation protection.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: PTS300
- Conductor Range: 300 MCM (STR)
- Material: Aluminum
- Finish: Tin Plated
- Color: Brown
- Connection: 4/0 Pin
- Insulation: Plastisol Cover
- Dimensions: 2.75 in (Length) x 1.1 in (Width) x 1.1 in (Height)
- Voltage Rating: 600 Volts max
- Temperature Rating: 90°C (194°F)
- Number of Conductors: 1
- Number of Poles: 1
- Country of Origin: India
- Product Weight: 1.6 lbs
Features
- All-aluminum pin terminal suitable for both aluminum and copper conductors
- Tin-plated pin provides low contact resistance and oxidation protection
- Pre-filled with oxide inhibitor to enhance connector longevity
- Includes a cover for quick installation and insulation
- UL486A/B Listed for wire connector adapter use
- Compatible with crimp tool N1240
