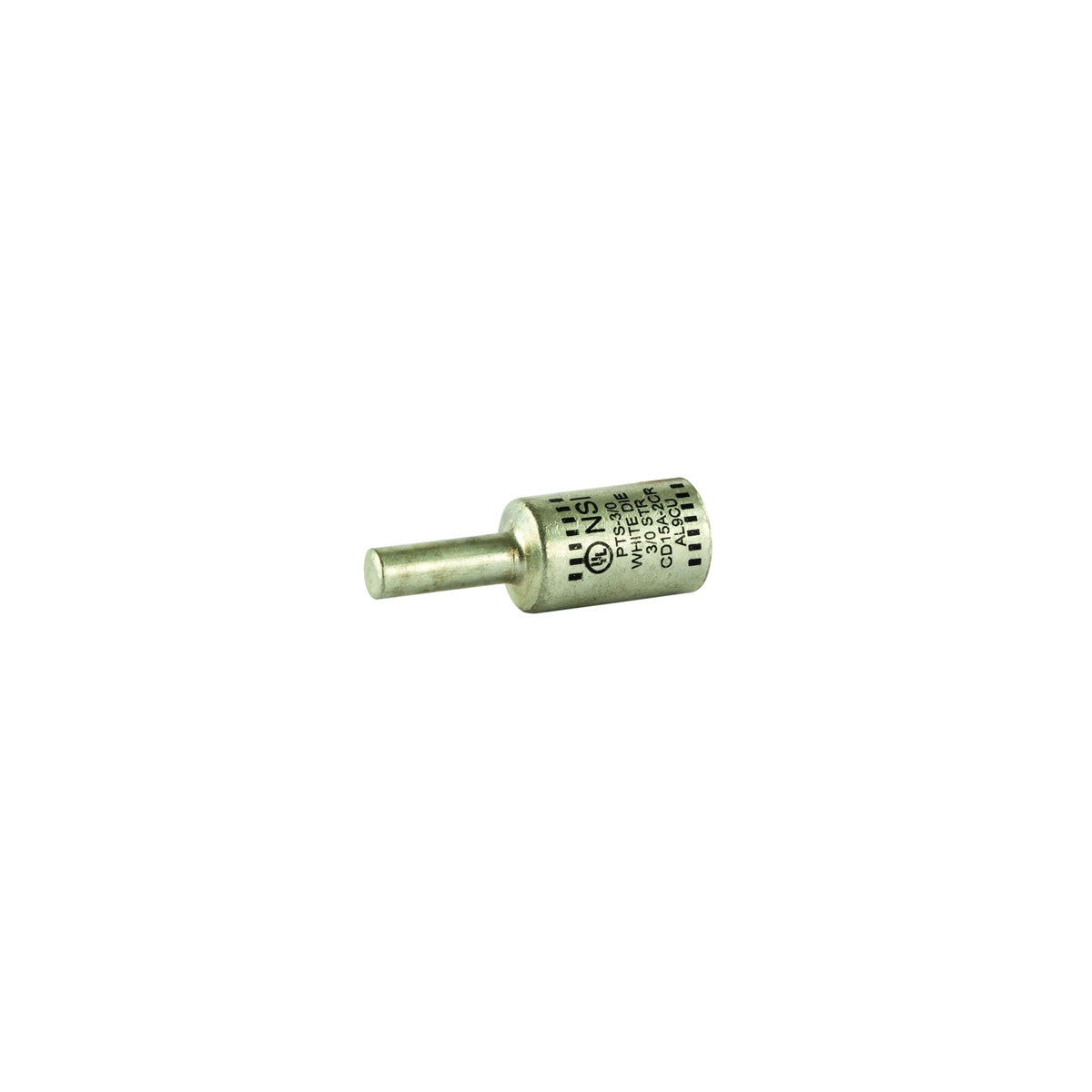

Aluminum Pin Terminal Al Pin 3/0 AWG – Electrical Connector

This Aluminum Pin Terminal is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. Manufactured by NSI Industries, it supports both aluminum and copper conductors with a 3/0 AWG conductor range. It is suitable for wire and cable applications requiring reliable and durable connections, making it a practical component for electrical distributors and switchgear suppliers.

Specifications

• Material: Aluminum
• Connection: 1/0 Pin
• Conductor Range: 3/0 AWG (STR)
• Voltage Rating: 600 Volts
• Maximum Temperature: 194 degrees Fahrenheit (90 °C)
• Finish: Tin Plated
• Insulation: Plastisol Cover
• Dimensions: Length 2.59 in, Width 0.85 in, Height 0.85 in
• Number of Poles: 1
• Number of Conductors: 1
• Product Weight: 1.0 lb
• Country of Origin: India
• Manufacturer Part Number: PTS3/0

Features

• All-aluminum solid pin terminal designed for both aluminum and copper conductors
• Tin plating provides low contact resistance and oxidation protection
• Pre-filled with oxide inhibitor to enhance connection reliability
• Includes a color-coded plastisol cover for quick and secure installation
• UL486A/B Listed for wire connector adapter applications
• Compatible with crimp tool N1240
