Aluminum Parallel Tap Connector Kit, Dual Rated, Main Conductor Range 250-1/0, Tap Range 250-6, Tin Plated, UL, CSA, With De-Ox, Includes Cover
SKU: #257208
Part: #GTA-250-250-KIT
UPC: 783669347692
Aluminum Parallel Tap Connector Kit, Dual Rated, Main Conductor Range 250-1/0, Tap Range 250-6, Tin Plated, UL, CSA, With De-Ox, Includes Cover
SKU: #257208
Part: #GTA-250-250-KIT
UPC: 783669347692
Description
Aluminum Parallel Tap Connector Kit Dual Rated Electrical Connector
The ILSCO Aluminum Parallel Tap Connector Kit is designed for secure mechanical connections in electrical distribution systems. It supports dual-rated applications with compatibility for both copper and aluminum conductors, making it suitable for wire and cable installations in lighting solutions and switchgear assemblies. This connector kit is UL 486A/B listed and CSA C22.2 No. 65-03 certified, ensuring compliance with industry standards for electrical distributors and contractors.
Specifications
- Material: Aluminum, Tin Plated
- Main Conductor Range: 250 kcmil - 1/0 Stranded
- Tap Conductor Range: 250 kcmil - 6 Stranded
- Voltage Rating: 600 V
- Number of Conductors: 2
- Drive Type (Main and Tap): 5/16 Internal Hex
- Primary Color: Silver
- UL Listing: UL 486A/B
- CSA Certification: C22.2 No. 65-03

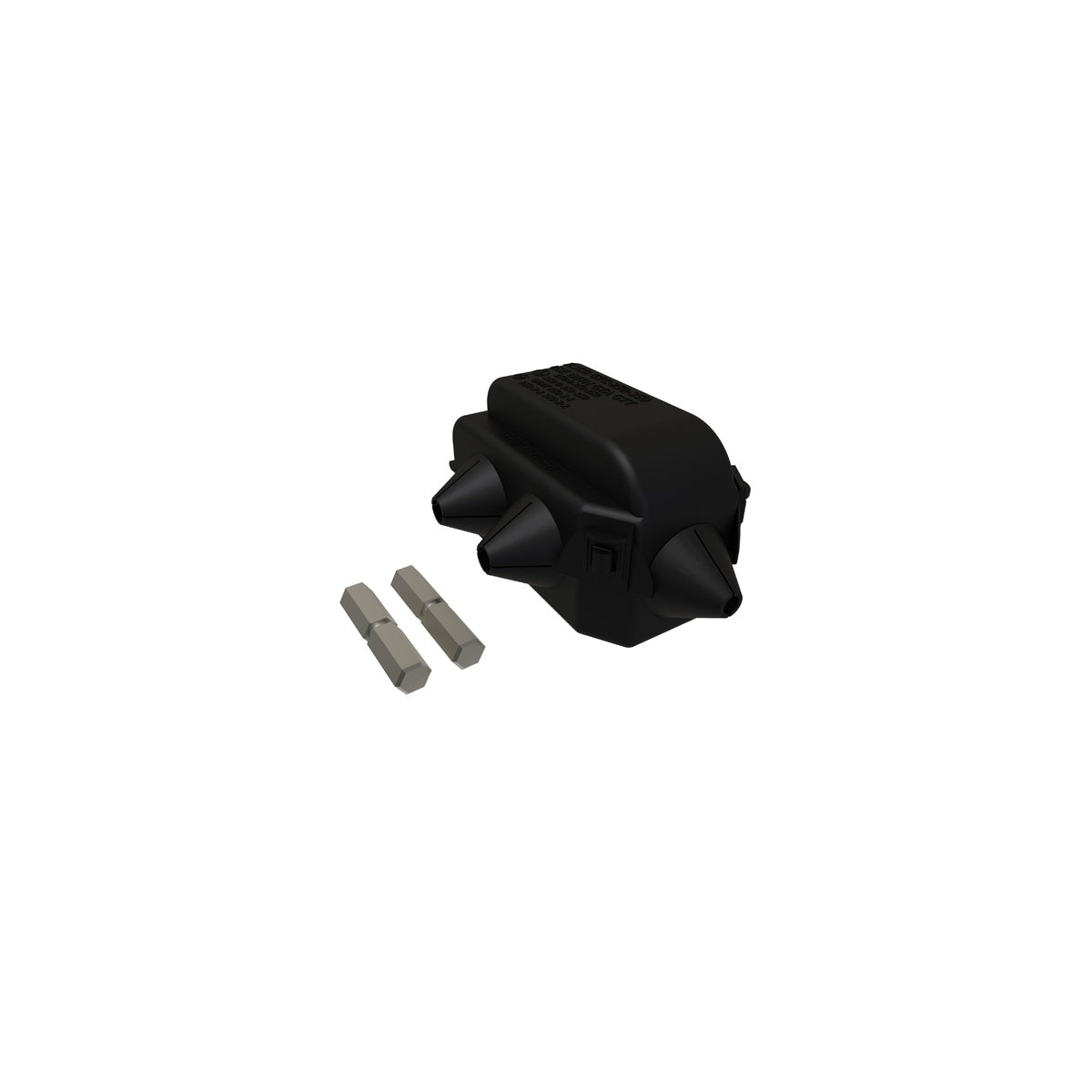

- Includes: GTA-250-250 connector, GTC-250 connector, 5cc pack of DE-OX compound, and protective cover
- Product Weight: 0.4760 lbs
Features
- Dual-rated for use with copper and aluminum conductors
- Tin plating provides enhanced corrosion resistance
- Mechanical connection method ensures reliable electrical continuity
- Includes DE-OX anti-oxidant compound to improve connection performance
- Compact design suitable for parallel tap applications in electrical distribution
