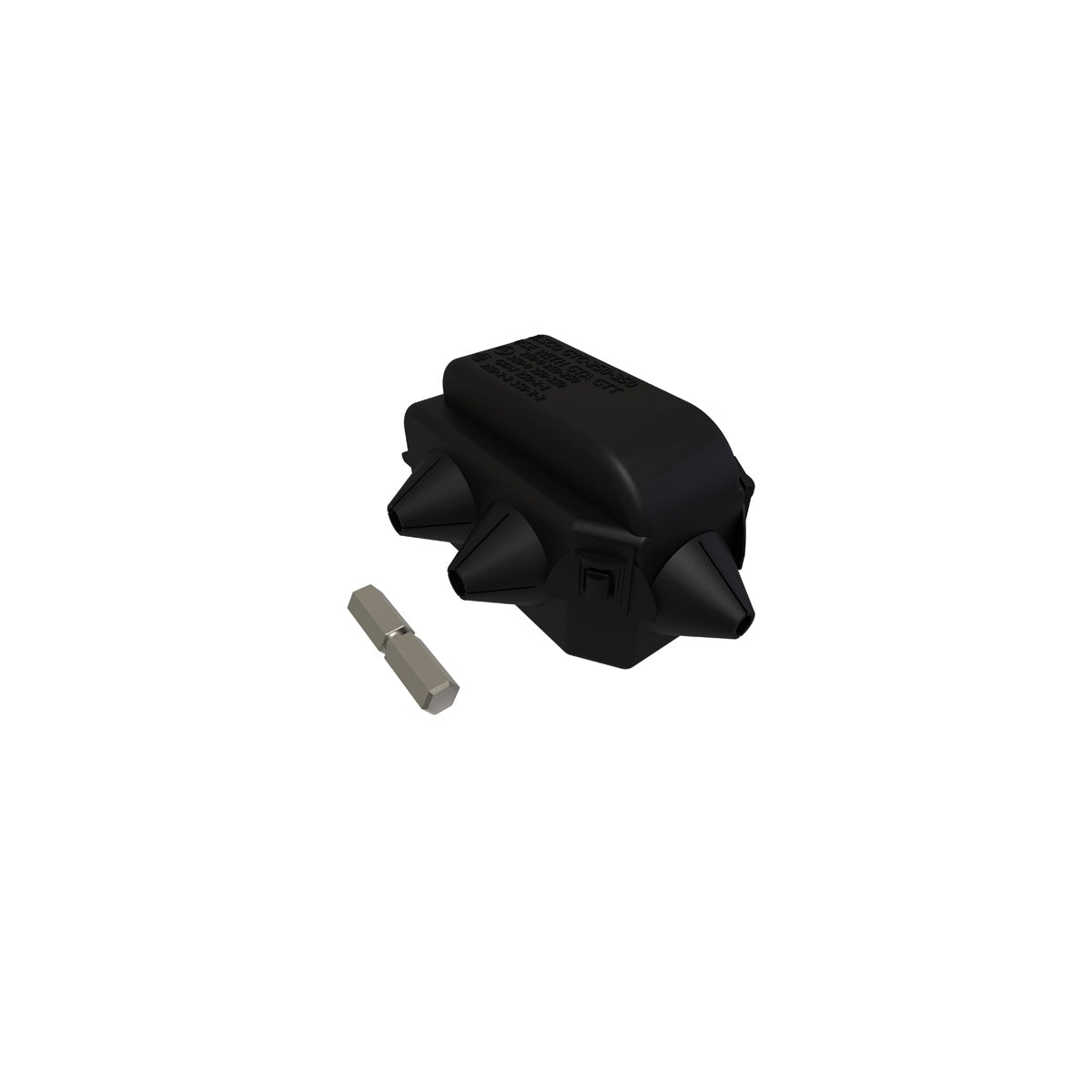

Aluminum Parallel Tap Connector Kit, Dual Rated – Electrical Wire and Cable Connector

The ILSCO Aluminum Parallel Tap Connector Kit is designed for reliable mechanical connections in electrical distribution systems. This dual-rated connector supports both aluminum and copper conductors, making it suitable for a variety of wire and cable applications within lighting solutions and switchgear assemblies. It is UL 486A/B and CSA C22.2 No. 65-03 listed, ensuring compliance with industry safety standards for electrical distributors.

Specifications

• Material: Aluminum with tin plating
• Primary Conductor Range: 250 kcmil to 1/0 Stranded
• Tap Conductor Range: Aluminum 10 Sol - 12 Sol and 1/0 Str - 12 Str; Copper 10 Sol - 14 Sol and 1/0 Str - 14 Str
• Voltage Rating: 600 V
• Number of Poles: 1
• Drive Type Main: 5/16" Internal Hex
• Drive Type Tap: Slotted
• Product Weight: 0.49 lbs
• Includes: GTA-250-0 Connector, GTC-250 Connector, 5cc pack of DE-OX anti-oxidant compound, and protective cover
• Primary Color: Silver
• Certifications: UL 486A/B Listed, CSA C22.2 No. 65-03 Certified

Features

• Dual-rated for use with both copper and aluminum conductors, facilitating versatile electrical installations
• Tin plating enhances corrosion resistance and electrical conductivity
• Mechanical connection design ensures secure and stable conductor terminations
• Includes DE-OX anti-oxidant compound to prevent oxidation and maintain connection integrity
• Protective cover included for safety and environmental protection of the connection
• Torque specifications compatible with standard 5/16" hex and slotted drive tools, simplifying installation
