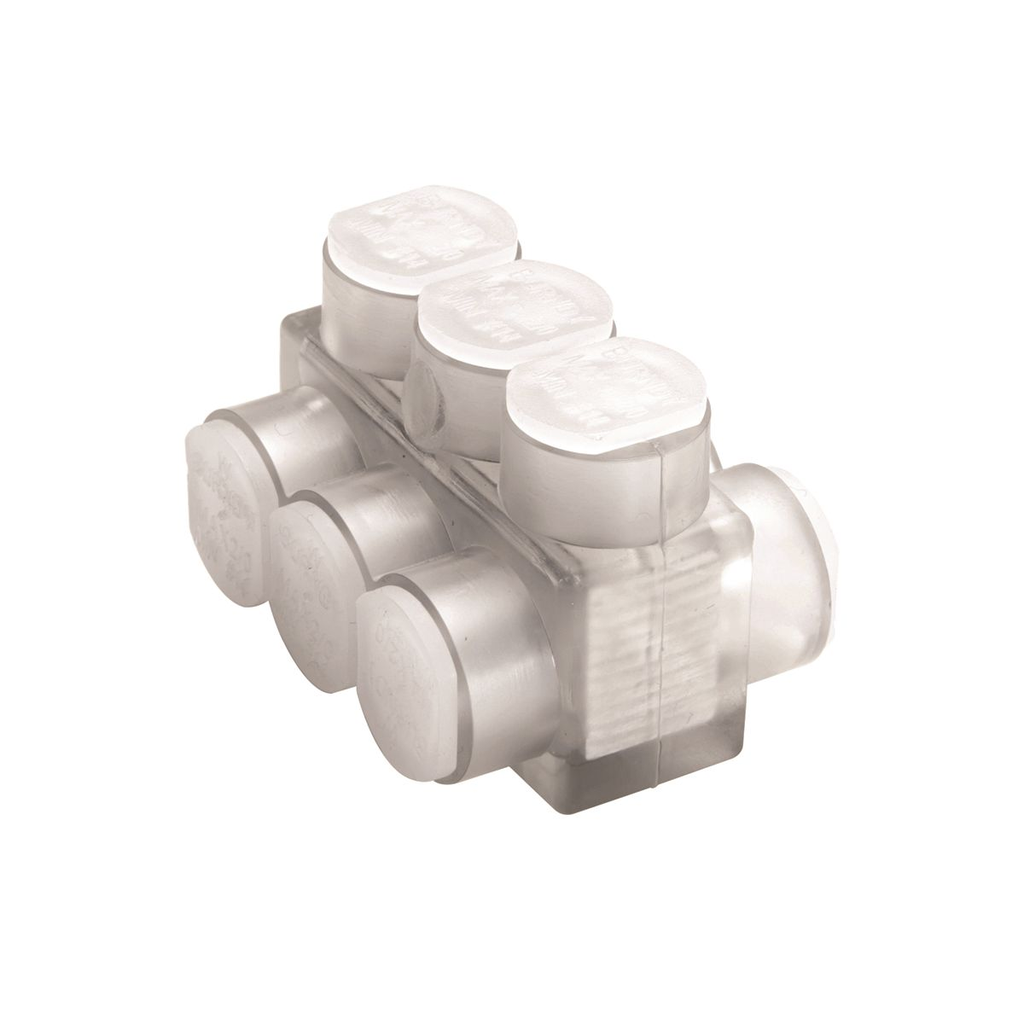

Aluminum Multiple Tap Connector Clear Insulated – Multi Tap Connector for Electrical Distribution

This Aluminum Multiple Tap Connector is designed for indoor electrical distribution applications, suitable for copper or stranded aluminum conductors. It serves as a reliable component for wire and cable connections, providing multi-port tapping capability for streamlined installations. Ideal for electrical distributors and switchgear suppliers requiring efficient, clear-insulated connectors rated for Al/Cu conductors ranging from 4 AWG to 600 kcmil.

Specifications

• Material: Aluminum
• Insulation Type: Plastisol
• Connection Type: Multi Tap
• Number of Ports: 6
• Conductor Size Range: 4 AWG - 600 kcmil
• Voltage Rating: 600 V
• Dimensions (L x W x H): 7.84 in x 3.00 in x 2.75 in (199 mm x 76 mm x 69.9 mm)
• Weight: 1.47 lbs
• Country of Origin: United States
• Certification - UL Listed: Yes
• Certification - CSA Approved: Yes
• Industry Standards: UL 486A-486B
• Application: For Indoor Use Only, Copper or Stranded Aluminum Conductors

Features

• Clear Plastisol insulation allows visual confirmation of proper conductor insertion
• AL6061-T6 aluminum body with clear insulation saves installation time and eliminates taping
• Pre-installed oxide inhibitor protects contact area from moisture and contaminants
• Range-taking capability reduces inventory requirements by covering multiple conductor sizes
• 6-port, double-sided entry design supports versatile multi-tap connections
