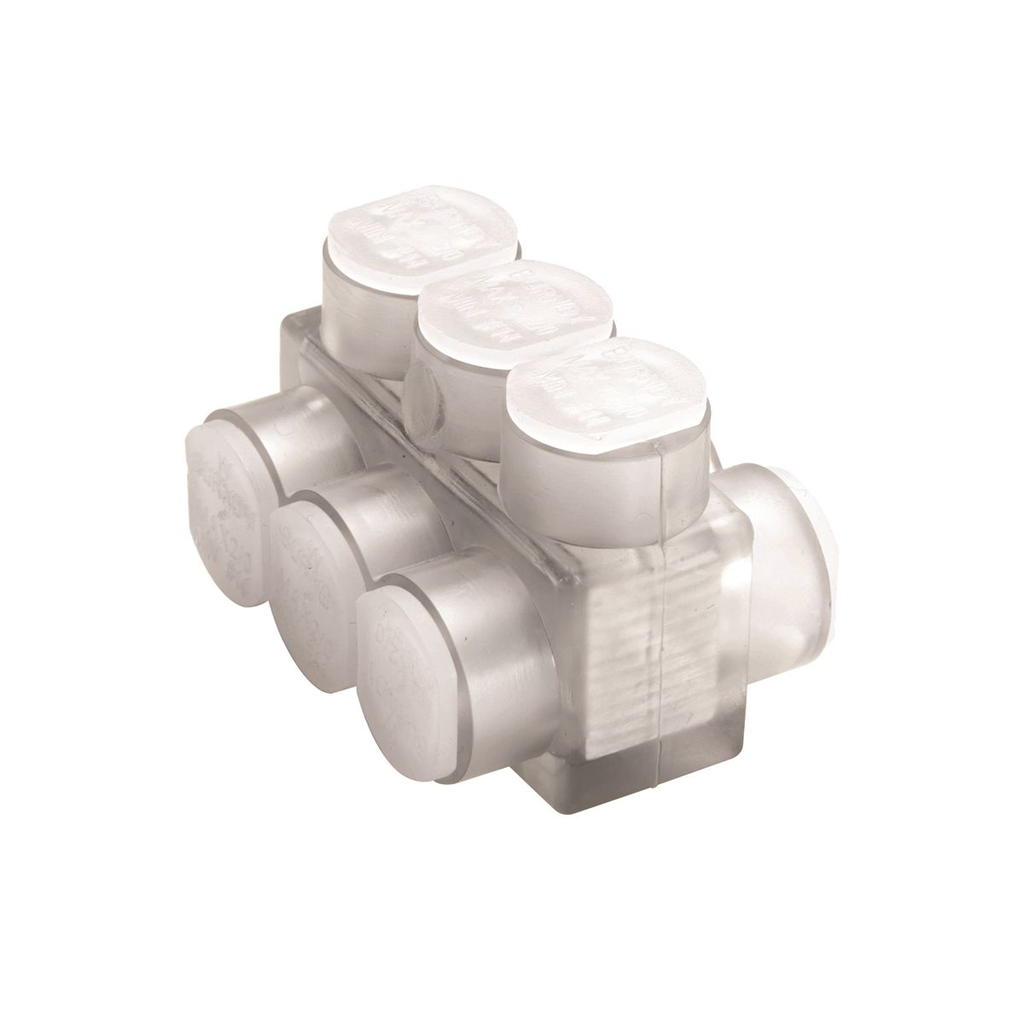

Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 2 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated - Electrical Connector

This aluminum multiple tap connector is designed for indoor electrical applications, providing a reliable connection for copper or stranded aluminum conductors. It features a clear plastisol insulation allowing visual confirmation of conductor insertion, suitable for use by electrical distributors and switchgear suppliers requiring efficient wire and cable connection solutions.

Specifications

• Material: Aluminum
• Insulation Type: Plastisol
• Connection Type: Multi Tap
• Number of Ports: 3
• Conductor Size: 4 AWG - 600 KCMIL
• Application: For Indoor Use Only, Copper or Stranded Aluminum
• Width: 3 in (76 mm)
• Height: 2.75 in (69.9 mm)
• Length: 4 in (102 mm)
• Voltage Rating: 600 V
• Temperature Rating: 194°F
• Screw Type: Allen
• Weight: 0.68 lbs
• Country of Origin: United States
• Manufacturer: Burndy
• Manufacturer Part #: BIBD6003
• UL Listed: Yes
• CSA Approved: Yes
• RoHS Compliant: Yes

Features

• Clear plastisol cover on AL6061-T6 aluminum body reduces installation time and eliminates taping
• Visual confirmation of conductor insertion through clear insulation
• Pre-installed oxide inhibitor protects contact area from moisture and contaminants
• Range-taking capability reduces inventory requirements
• Designed for reliable connections in wire and cable distribution and lighting solutions
