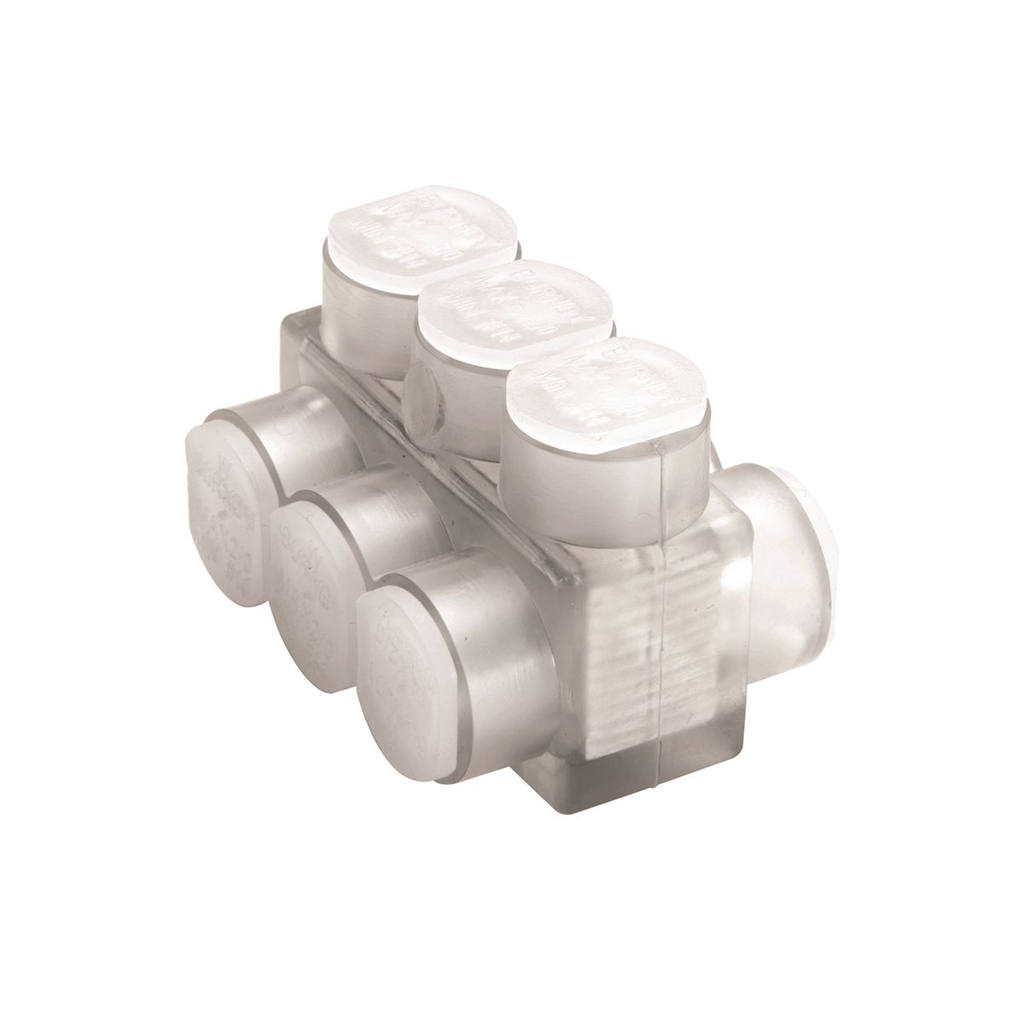

Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 2 Sided Entry, 14-4 AWG, Al/Cu Rated – Electrical Connector

This aluminum multiple tap connector is designed for indoor electrical applications requiring reliable connections between copper or stranded aluminum conductors. It features a clear plastisol insulation for visual confirmation of proper conductor insertion, supporting wire sizes from 14 to 4 AWG. Suitable for electrical distributors and lighting solutions providers, this connector facilitates multi-tap connections with a two-sided entry configuration.

Specifications

• Material: Aluminum
• Connection Type: Multi Tap
• Conductor Size: 14-4 AWG
• Insulation Type: Plastisol
• Width: 1.5 in
• Product Weight: 0.1070 lbs
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Burndy
• Manufacturer Part #: BIBD43

Features

• Clear plastisol insulation allows visual confirmation of conductor insertion
• Oxide inhibitor pre-installed to prevent moisture and contaminants from entering contact area (per technical drawing on page 1 of specification sheet)
• Two-sided entry with three ports for multiple tap connections
• UL Listed and CSA Certified for 600V applications (per specification drawing)
