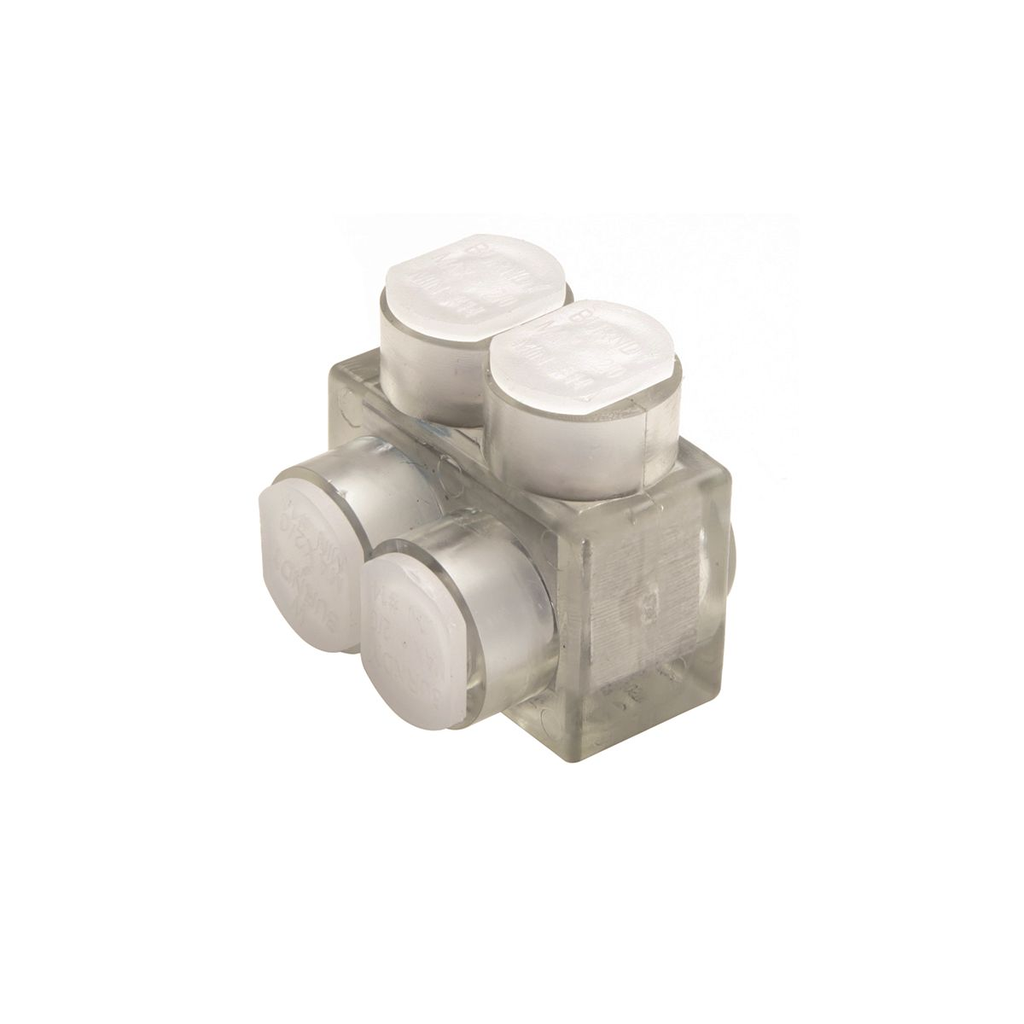

Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated
SKU: #331072
Part: #BIT600
UPC: 781810225257
Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated
SKU: #331072
Part: #BIT600
UPC: 781810225257
Description
Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated - Aluminum Electrical Connector
This aluminum multiple tap connector is designed for indoor electrical applications, enabling secure connections for copper or stranded aluminum conductors. It features a clear plastisol insulation for easy visual inspection and is rated for conductor sizes from 4 AWG to 600 kcmil. Suitable for electrical distributors and wire and cable applications, this connector supports reliable multi-tap connections with 2 ports and a single-sided entry configuration. Manufactured in the USA by Burndy, it meets industry standards for aluminum and copper conductor compatibility.
Specifications
- Material: Aluminum
- Connection Type: Multi Tap
- Insulation Type: Plastisol
- Conductor Size: 4 AWG - 600 kcmil
- Application: For Indoor Use Only, Copper or Stranded Aluminum
- Width: 2.38 in
- Product Weight: 0.4700 lbs
- Voltage Rating: 600 Volt Rated
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: Burndy
- Manufacturer Part #: BIT600
Features
- Clear insulated design allows for easy visual inspection
- Dual rated AL9CU for use with copper and aluminum conductors
- Fully insulated to eliminate the need for taping
- Range-taking conductor ports accommodate a wide range of wire sizes
- Designed for multi-tap electrical connections with 2 ports and 1-sided entry
