Morris Products
Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 350MCM-#6 Awg
SKU: #277078
Part: #90842
UPC: 601986908429
Morris Products
Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 350MCM-#6 Awg
SKU: #277078
Part: #90842
UPC: 601986908429
Description

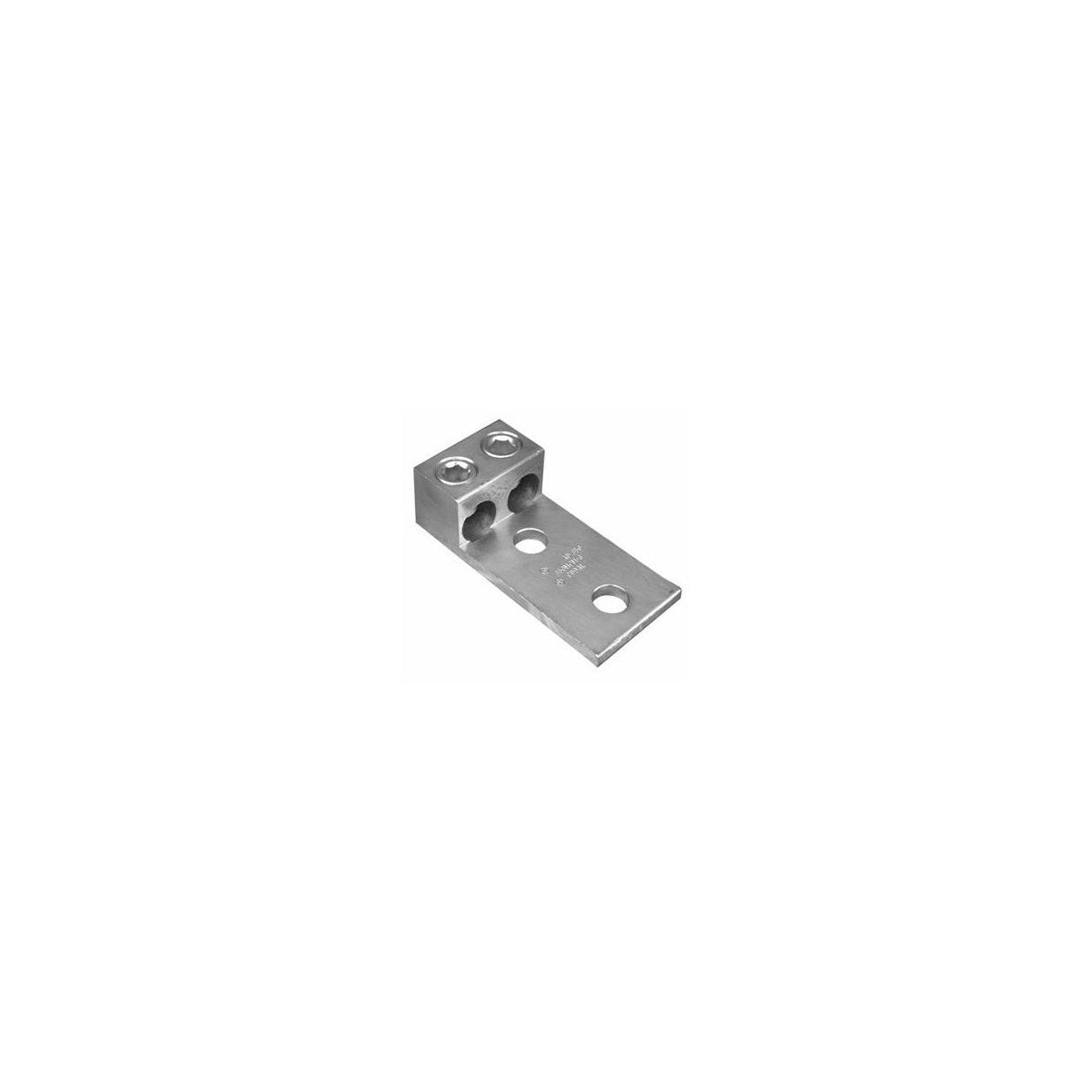

Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 350MCM-#6 Awg Electrical Connector
This aluminum mechanical lug is designed for securely connecting two conductors with a two-hole mount configuration. Manufactured from high-strength 6061-T6 aluminum alloy, it provides reliable conductivity and mechanical strength. Suitable for use by electrical distributors and switchgear suppliers, this lug supports wire sizes from 350MCM to #6 AWG and is dual rated for both copper and aluminum conductors, making it a versatile component in lighting solutions and wire and cable installations.
Specifications
- Material: 6061-T6 Aluminum
- Wire Range: 350MCM - #6 AWG
- Mount Type: Two Hole Mount
- Length: 4.13 inches
- Width: 1.91 inches
- Height: 1.22 inches
- Stud Size: 0.50 inches
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- UL Listing: UL486B AL9CU
- Product Weight: 0.3850 lbs
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be performed with only a screwdriver or Allen wrench
- Connectors are reusable
- NEMA standard 1-3/4” center hole spacing
