Morris Products

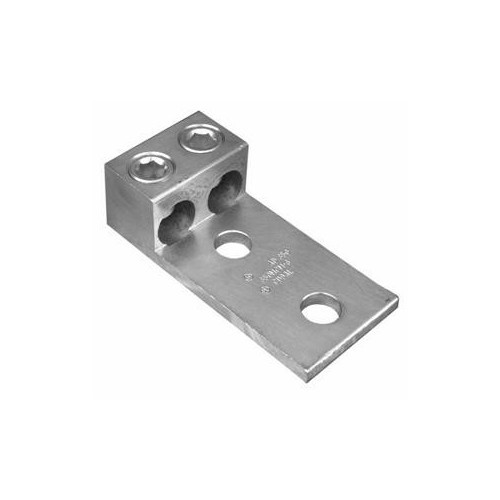

Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 250MCM-#6 Awg
SKU: #277076
Part: #90841
UPC: 601986908412
Description
Aluminum Mechanical Lugs Two Conductors - Two Hole Mount 250MCM-#6 Awg Electrical Connector
This aluminum mechanical lug is designed for secure and flexible electrical connections, suitable for use in wire and cable installations. It accommodates two conductors and is ideal for electrical distributors and switchgear suppliers requiring reliable aluminum connectors. The lug supports both copper and aluminum conductors and is rated for 600 volts and 194°F (90°C) operation.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Wire Range: 250MCM to #6 AWG
- Mount Type: Two Hole Mount
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- UL Listing: UL486B AL9CU
- Product Weight: 0.4780 lbs
- Center Hole Spacing: 1-3/4 inches (NEMA Standard)
- Manufacturer Part Number: 90841
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be made with only a screwdriver or Allen wrench
- Connectors are reusable
