Morris Products

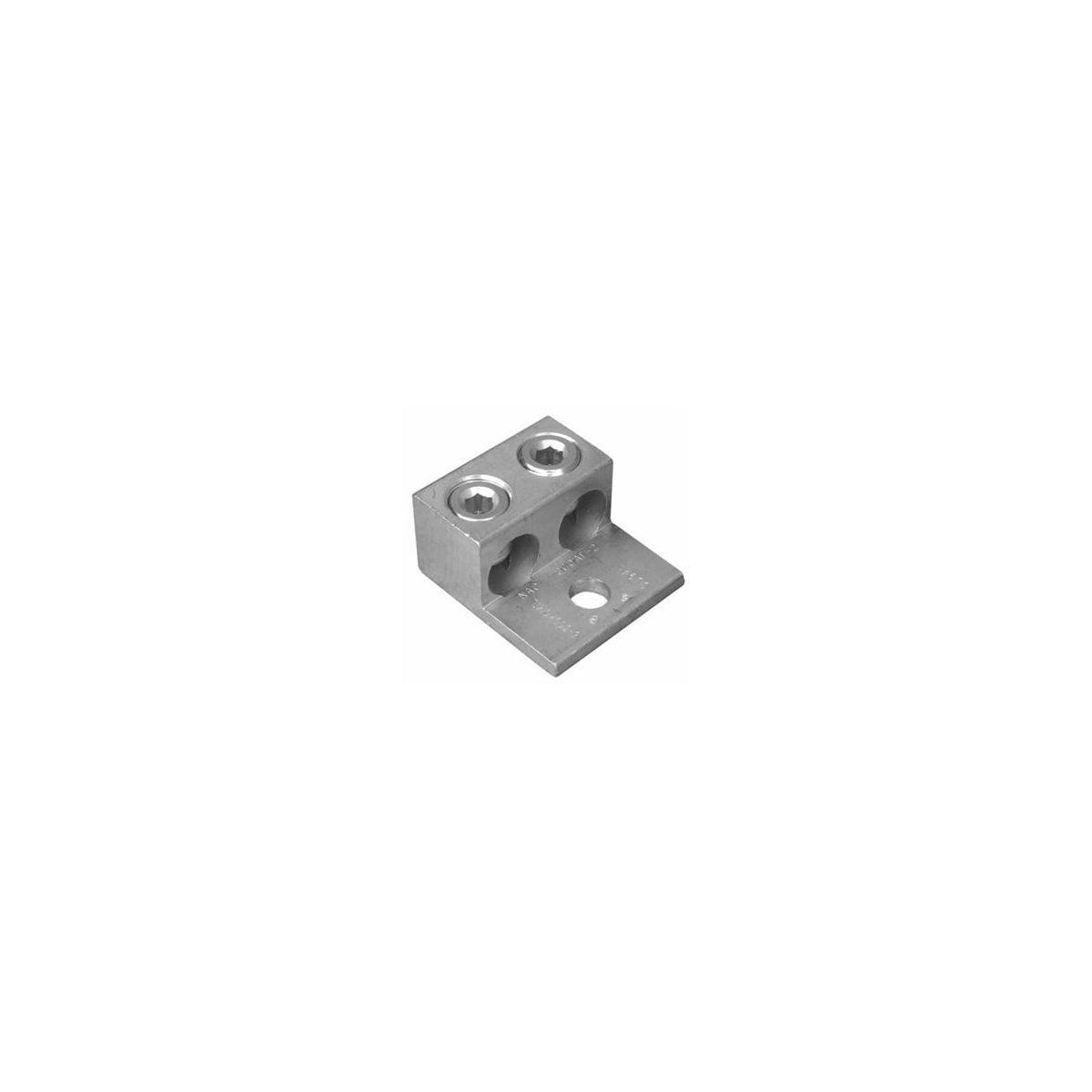

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 600MCM-#2 Awg
SKU: #277056
Part: #90820
UPC: 601986908207
Morris Products

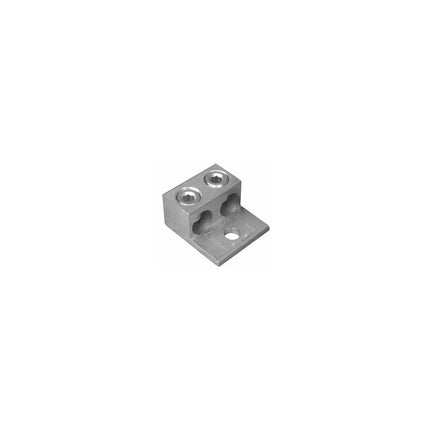

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 600MCM-#2 Awg
SKU: #277056
Part: #90820
UPC: 601986908207
Description
Aluminum Mechanical Lugs Two Conductors - One Hole Mount 600MCM-#2 Awg
This aluminum mechanical lug is designed for secure electrical connections involving two conductors with a one-hole mount configuration. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures both durability and excellent conductivity. Suitable for use by electrical distributors and switchgear suppliers, it supports copper and aluminum conductors and is ideal for wire and cable installations requiring reliable mechanical connections.
Specifications
- Material: 6061-T6 Aluminum
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- Center Hole Spacing: 1-3/4” (NEMA Standard)
- Manufacturer Part #: 90820
- Compatible Wire Range: 600MCM-2 SOL
- Dimensions (inches): Length 3.19, Width 2.41, Height 1.56
- Stud Size: 0.56 inches
- Product Weight: 0.6750 lbs
- UL Listed: UL486B AL9CU
Features
- Dual rated for copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be completed with a screwdriver or Allen wrench
- Reusable connector
- Slotted screws for secure fastening
