Aluminum Mechanical Lugs Two Conductors - One Hole Mount 350MCM-#6 Awg
SKU: #277044
Part: #90818
UPC: 601986908184
Aluminum Mechanical Lugs Two Conductors - One Hole Mount 350MCM-#6 Awg
SKU: #277044
Part: #90818
UPC: 601986908184
Total Price: $5.76 per piece Sold in increments of 1 piece
Description

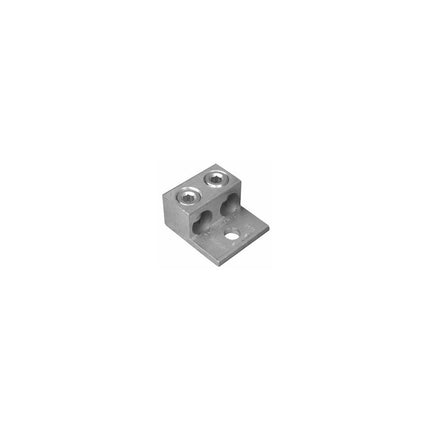

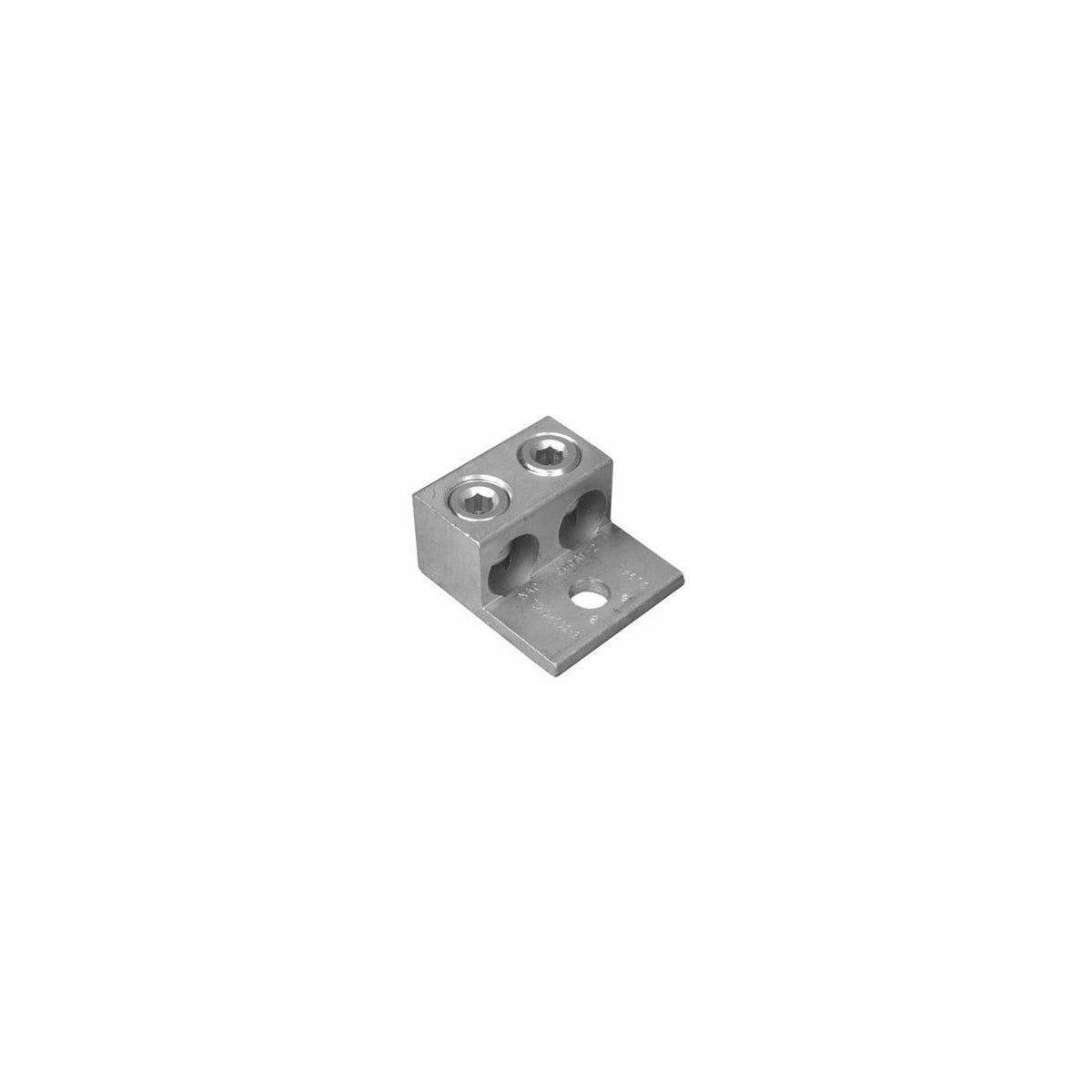

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 350MCM-#6 Awg
This aluminum mechanical lug is designed for secure electrical connections, accommodating two conductors ranging from 350MCM to #6 AWG. Manufactured from high-strength 6061-T6 aluminum alloy, it offers both strength and conductivity suitable for wire and cable installations. Ideal for electrical distributors and switchgear suppliers, this lug supports flexible installation with a one-hole mount design.
Specifications
- Material: 6061-T6 Aluminum
- Conductor Range: 350MCM to #6 AWG
- Mount Type: One Hole Mount
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- Center Hole Spacing: 1-3/4” (NEMA Standard)
- UL Listed: UL486B AL9CU
- Product Weight: 0.2630 lbs
Features
- Dual rated for copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Reusable connector design
- Assembly requires only a screwdriver or Allen wrench
- Slotted screws for ease of installation (specific to certain catalog numbers)
