Morris Products

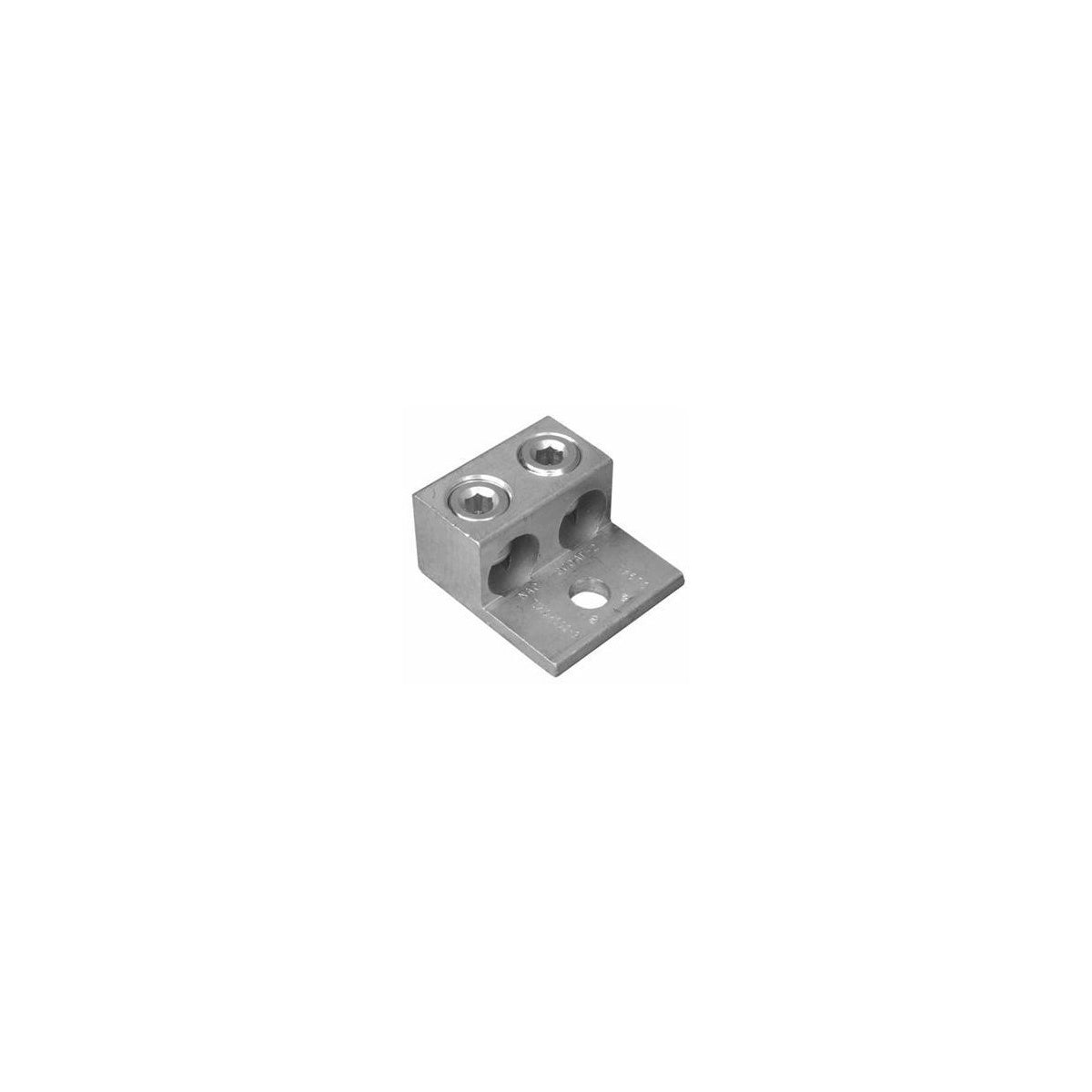

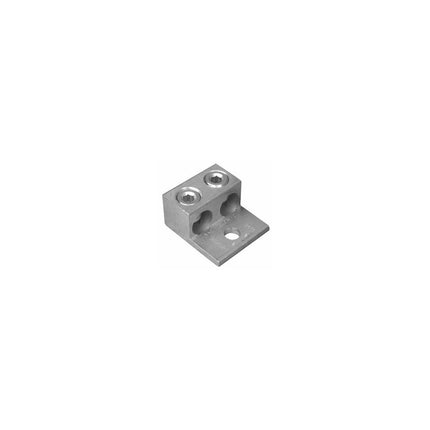

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 250MCM-#6 Awg
SKU: #277039
Part: #90816
UPC: 601986908160
Morris Products
Aluminum Mechanical Lugs Two Conductors - One Hole Mount 250MCM-#6 Awg
SKU: #277039
Part: #90816
UPC: 601986908160
Description
Aluminum Mechanical Lugs Two Conductors - One Hole Mount 250MCM-#6 Awg
This aluminum mechanical lug is designed for secure electrical connections accommodating two conductors with a one-hole mount. It supports wire sizes from 250MCM to #6 AWG, suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connectors. Manufactured by Morris Products, it is ideal for installations demanding flexibility and durability in lighting solutions and electrical distribution systems.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Wire Range: 250MCM to #6 AWG
- Mount Type: One Hole Mount
- Rated Voltage: 600V
- Temperature Rating: 194°F (90°C)
- Product Weight: 0.2810 lbs
- UL Listing: UL486B AL9CU
- Center Hole Spacing: NEMA Standard 1-3/4”
- Manufacturer Part #: 90816
Features
- Manufactured from high-strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be performed with only a screwdriver or Allen wrench
- Reusable connectors
- Slotted screws for secure fastening
