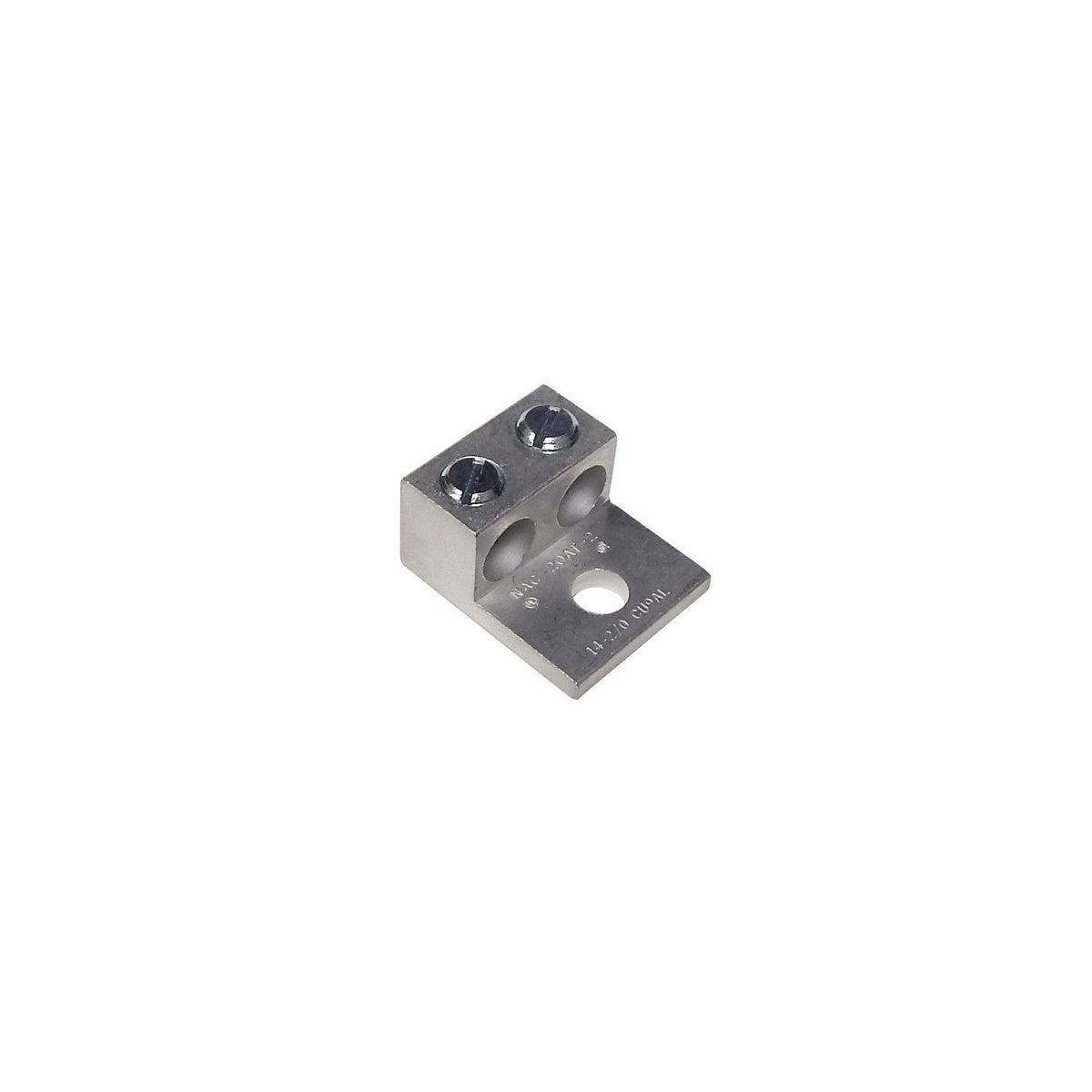

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 2/0-#14 Awg

This aluminum mechanical lug is designed for securely connecting two conductors ranging from 2/0 to #14 AWG. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures maximum conductivity and durability. Suitable for electrical distributors and switchgear suppliers, it provides flexibility in installation with a one-hole mount design. The lug is dual rated for both copper and aluminum conductors, making it compatible with various wire and cable applications in lighting solutions and electrical distribution.

Specifications

• Material: 6061-T6 Aluminum
• Conductor Range: 2/0 to #14 AWG
• Mounting: One Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Weight: 0.1130 lbs
• UL Listing: UL486B AL9CU
• Manufacturer Part #: 90814

Features

• Manufactured from high-strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be made with only a screwdriver or Allen wrench
• Connectors are reusable
• NEMA standard 1-3/4” center hole spacing
• Slotted screws for secure tightening

Downloads & Links

• Spec Sheet
