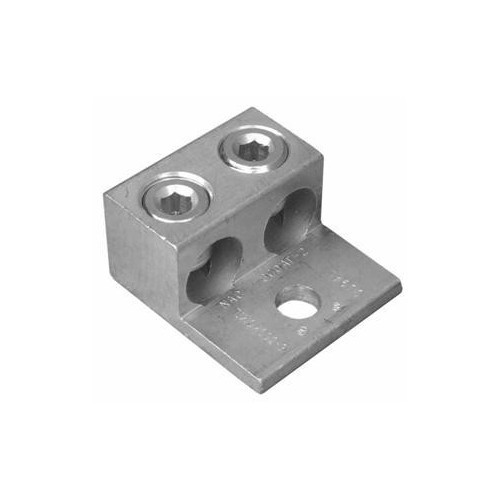

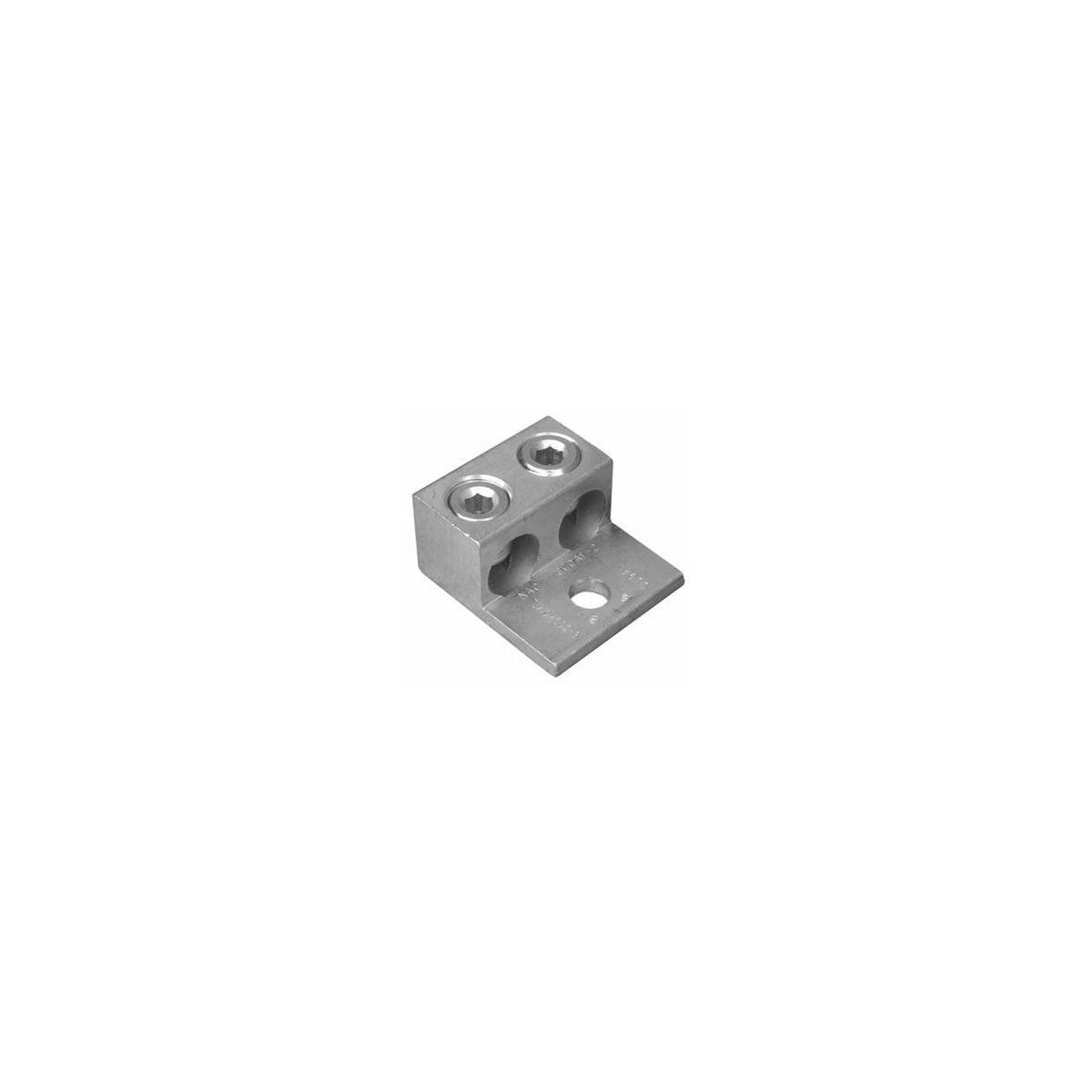

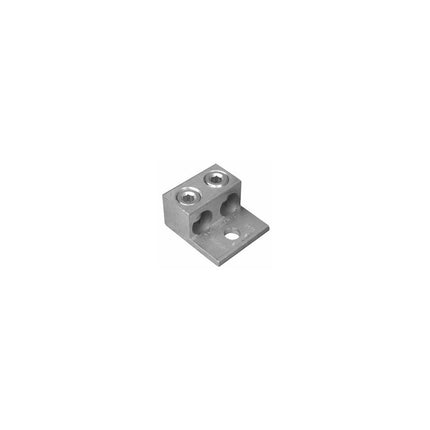

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 1000MCM-350MCM - Electrical Connector

This aluminum mechanical lug is designed for secure and flexible electrical connections, suitable for use by electrical distributors and switchgear suppliers. It accommodates two conductors with a one-hole mount configuration, supporting wire sizes from 1000 MCM to 350 MCM. The lug is ideal for lighting solutions, wire and cable installations, and other electrical applications requiring reliable conductor termination.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Wire Range: 1000 MCM - 350 MCM
• Mounting: One Hole
• Product Weight: 1.2850 lbs
• Manufacturer Part #: 90824
• UL Listing: UL486B AL9CU

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly requires only a screwdriver or Allen wrench
• Connectors are reusable
• NEMA standard 1-3/4” center hole spacing
• Slotted screws for secure fastening

Downloads & Links

• Spec Sheet
