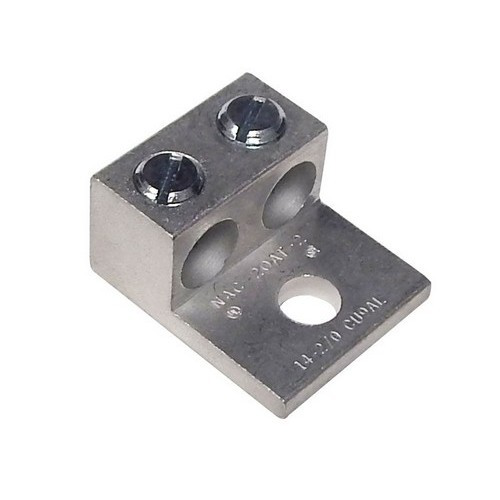

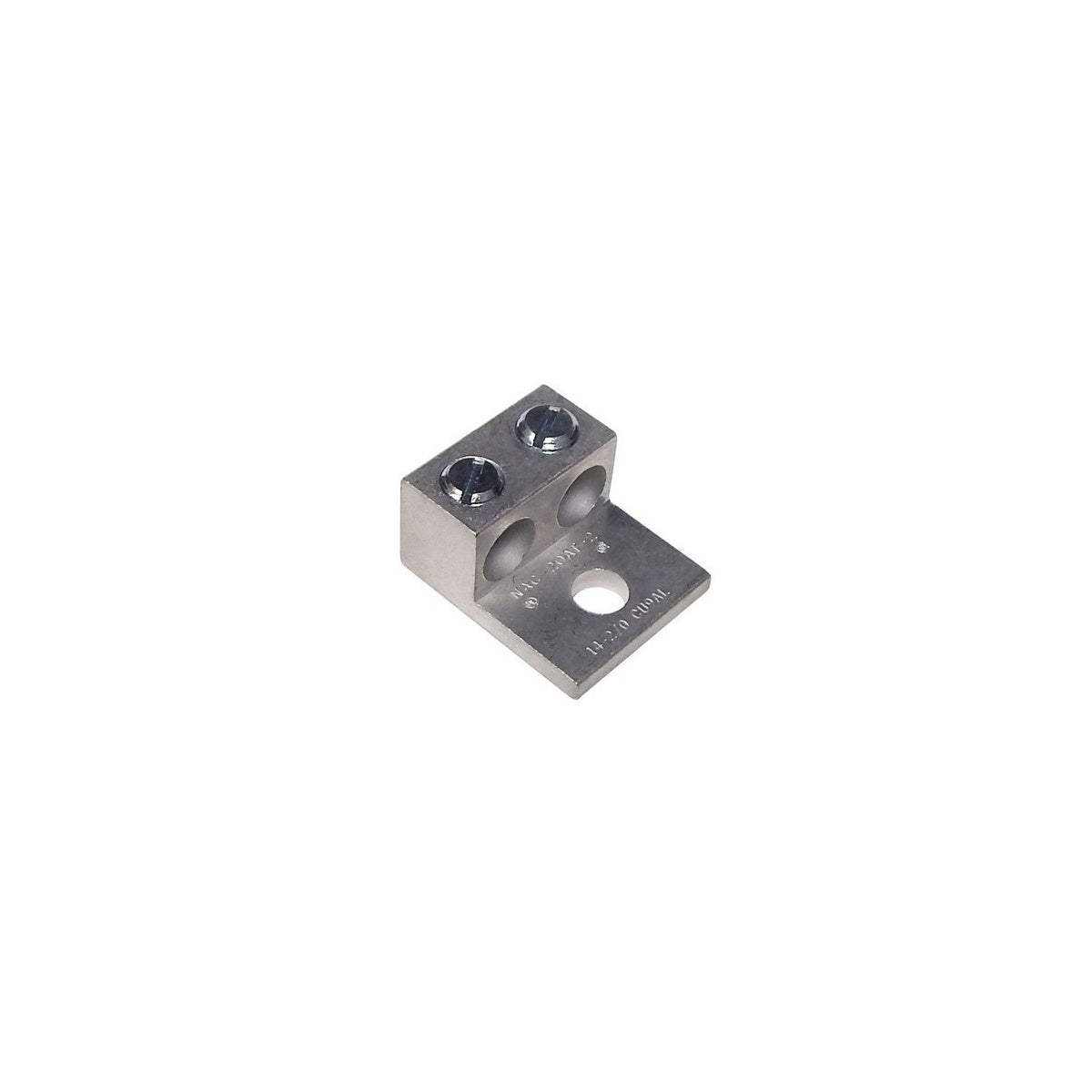

Aluminum Mechanical Lugs Two Conductors - One Hole Mount 1/0-#14 Awg

This aluminum mechanical lug is designed for secure electrical connections, suitable for use by electrical distributors and switchgear suppliers. It accommodates two conductors with a single hole mount, supporting wire sizes from 1/0 to #14 AWG. Ideal for applications requiring reliable mechanical connectors in wire and cable installations, it ensures flexibility and durability in lighting solutions and electrical distribution systems.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Rated Voltage: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• Mounting: One Hole Mount
• Wire Range: 1/0 to #14 AWG
• Center Hole Spacing: 1-3/4‚Äù (NEMA Standard)
• UL Listing: UL486B AL9CU
• Weight: 0.0850 lbs
• Manufacturer Part Number: 90812

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be performed with a screwdriver or Allen wrench
• Connectors are reusable
• Slotted screws for secure fastening

Downloads & Links

• Spec Sheet
