Description

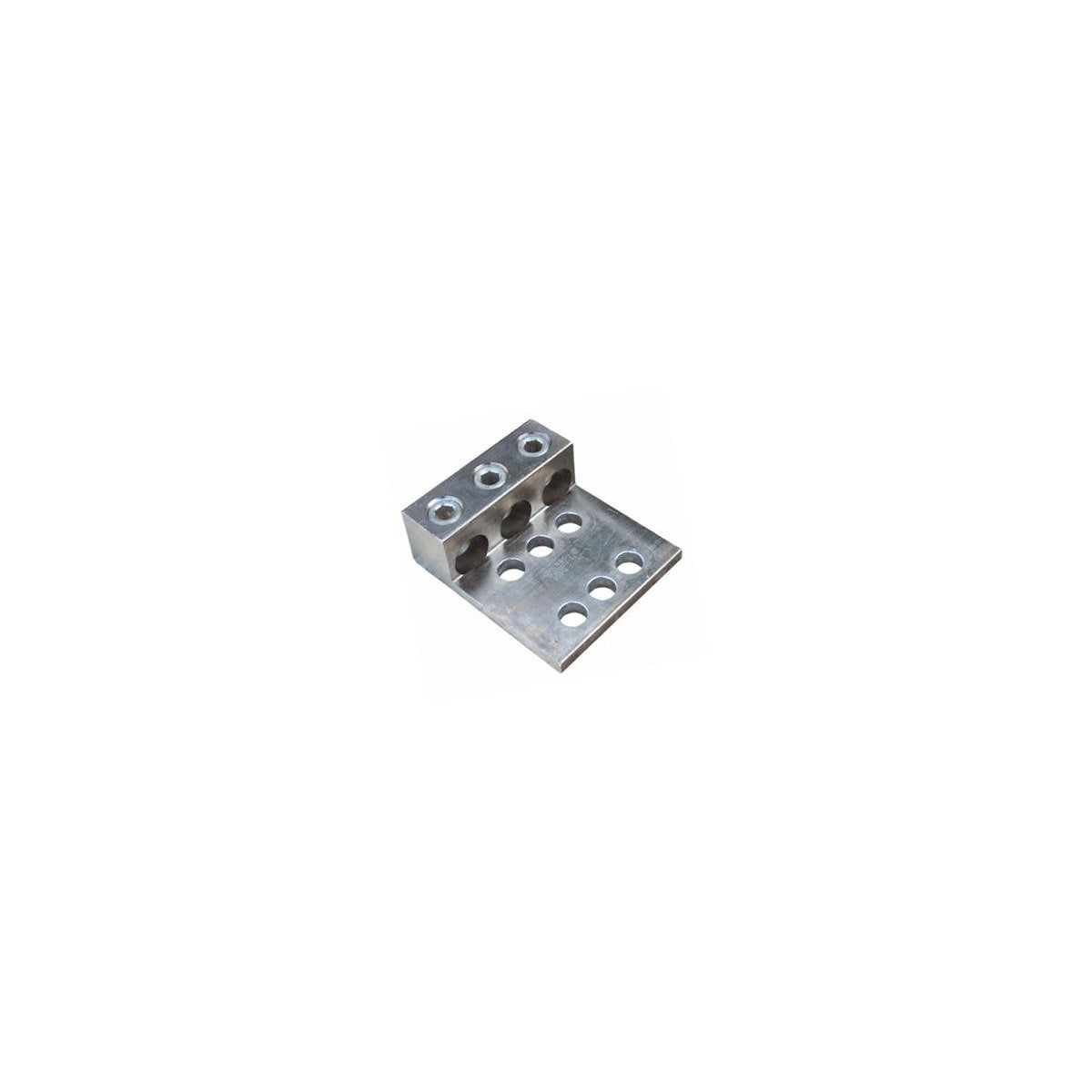

Aluminum Mechanical Lugs Three Conductors - Two & Four Hole Mount 800MCM-300MCM
This aluminum mechanical lug is designed for secure and flexible electrical connections involving three conductors. It supports two or four hole mounting configurations and is suitable for wire ranges from 800MCM to 300MCM. Ideal for electrical distributors and wire and cable applications, this lug ensures reliable conductivity and corrosion resistance in various switchgear and lighting solutions installations.
Specifications
- Material: 6061-T6 Aluminum
- Wire Range: 800MCM-300MCM
- Mounting: Two or Four Hole Mount
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- UL Listing: UL486B AL9CU
- Center Hole Spacing: NEMA Standard 1-3/4”
- Product Weight: 2.1750 lbs
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be made with only a screwdriver or Allen wrench
- Connectors are re-usable
