Description

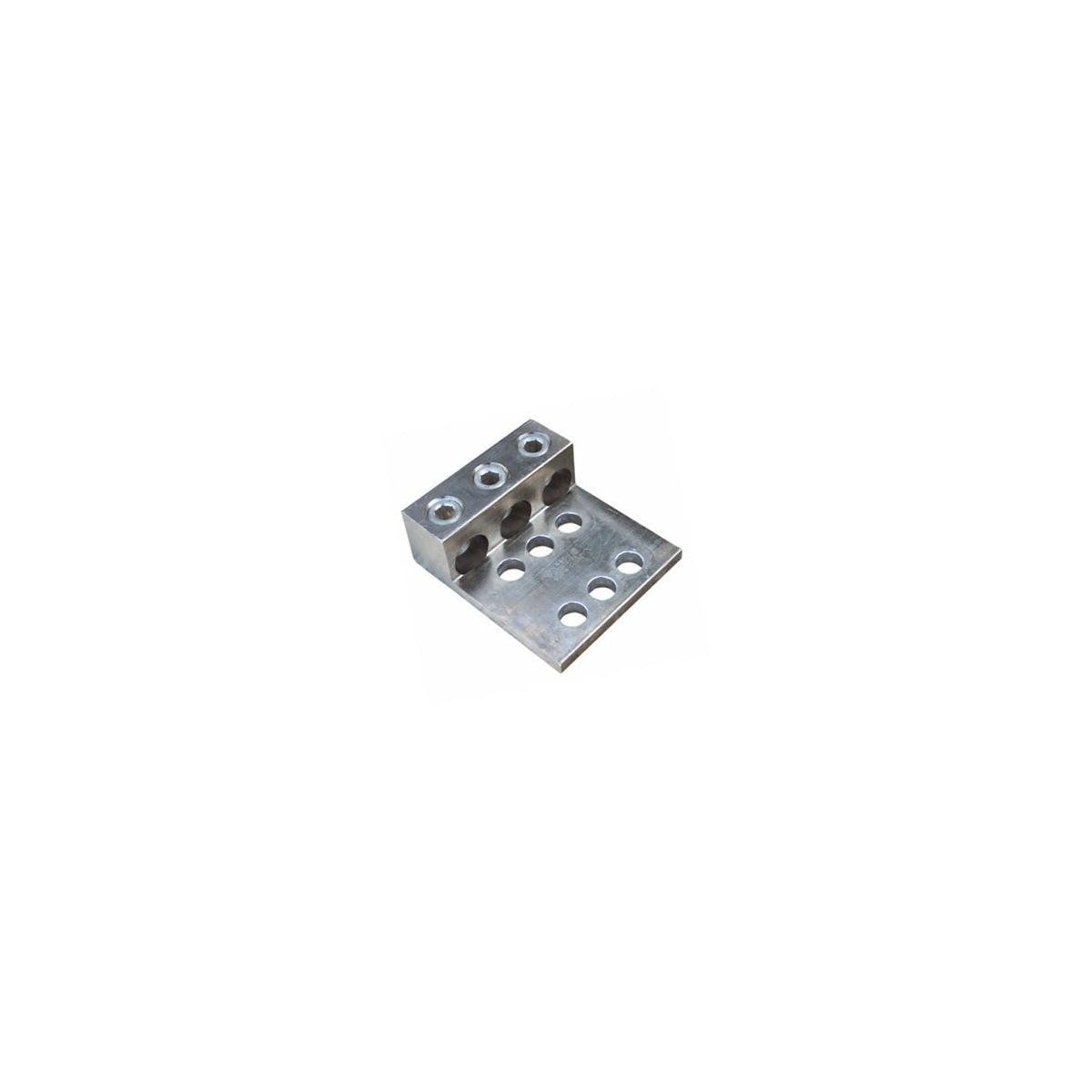

Aluminum Mechanical Lugs Three Conductors - Two & Four Hole Mount 500MCM-#4 Awg
This aluminum mechanical lug is designed for secure and flexible electrical connections involving three conductors. Suitable for wire and cable installations in electrical distribution and switchgear applications, it supports a wire range from 500MCM to #4 AWG. The product is ideal for electrical distributors and lighting solutions requiring reliable mechanical connectors with dual compatibility for copper and aluminum conductors.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Wire Range: 500MCM to #4 AWG
- Mounting: Two or Four Hole Mount
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- Product Weight: 0.3540 lbs
- UL Listing: UL486B LISTED AL9CU
- Center Hole Spacing: NEMA Standard 1-3/4”
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for use with both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be performed with a screwdriver or Allen wrench
- Connectors are reusable
