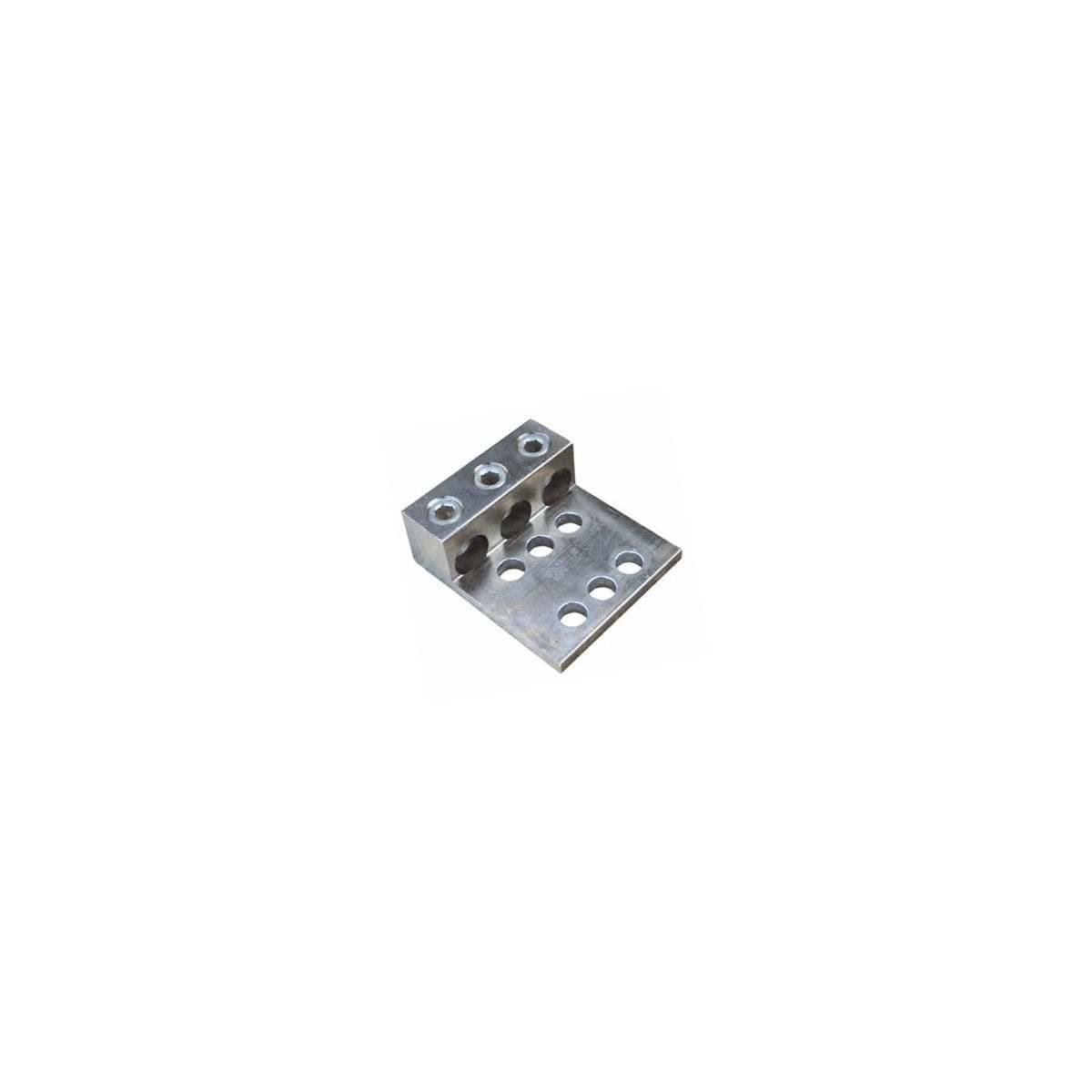

Aluminum Mechanical Lugs Three Conductors - Two & Four Hole Mount 350MCM-#6 Awg

This aluminum mechanical lug is designed for secure electrical connections involving three conductors with flexible two or four hole mounting options. Manufactured from high strength 6061-T6 aluminum alloy, it provides reliable conductivity and durability suitable for wire and cable installations. The product is ideal for electrical distributors and switchgear suppliers requiring robust connectors compatible with both copper and aluminum conductors.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 350MCM to #6 AWG
• Rated Voltage: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• UL Listing: UL486B AL9CU
• Center Hole Spacing: 1-3/4‚Äù (NEMA Standard)
• Product Weight: 0.6190 lbs

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for use with both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly can be performed using only a screwdriver or Allen wrench
• Connectors are reusable for flexible installation and maintenance

Downloads & Links

• Spec Sheet
