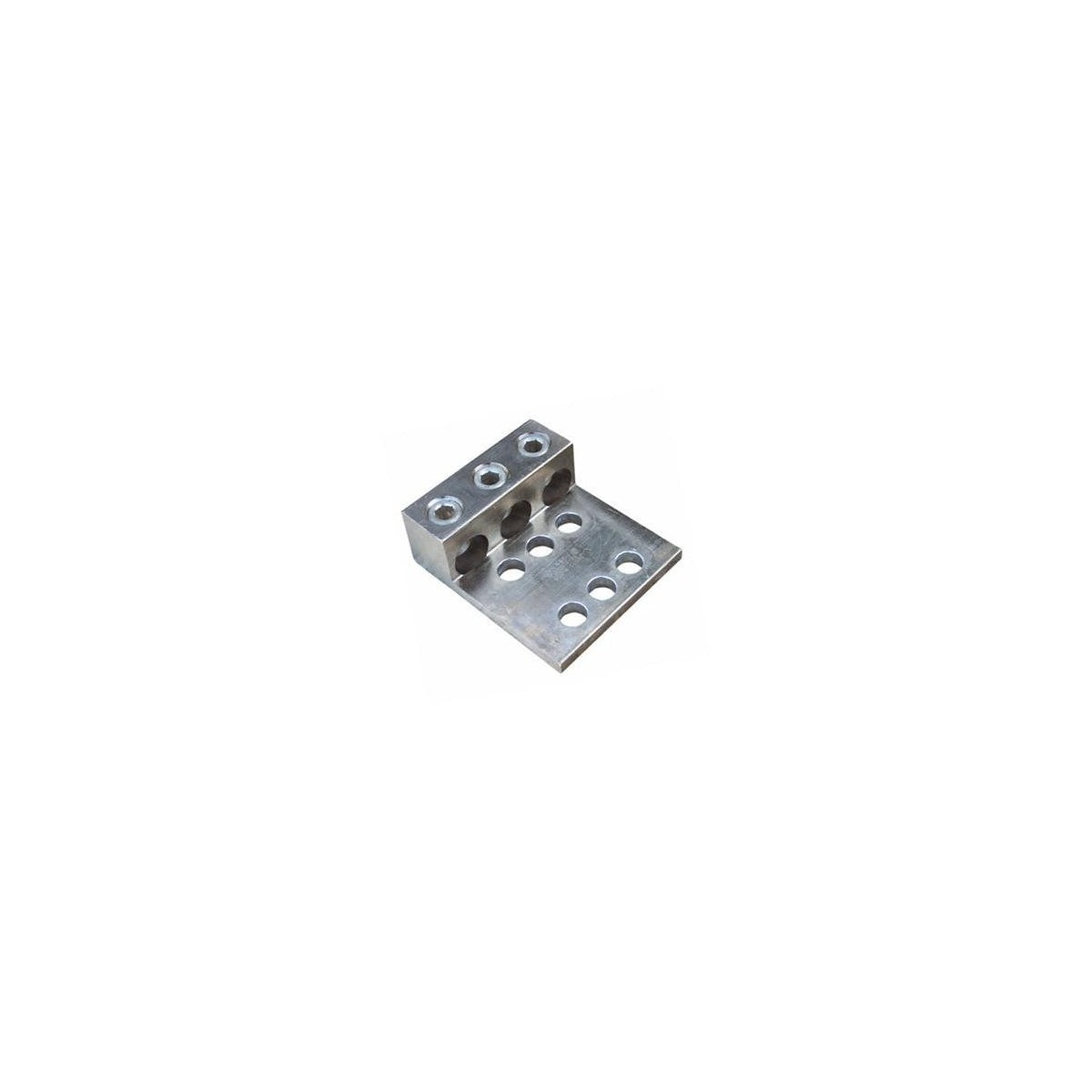

Aluminum Mechanical Lugs Three Conductors - Two & Four Hole Mount 250MCM-#6 Awg

This aluminum mechanical lug is designed for secure electrical connections accommodating three conductors with two or four hole mounting options. It is suitable for wire and cable installations requiring reliable mechanical connectors, ideal for electrical distributors and switchgear suppliers seeking flexible and durable solutions.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 250MCM to #6 AWG
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• Mounting Hole Spacing: NEMA Standard 1-3/4‚Äù Center
• UL Listing: UL486B AL9CU
• Product Weight: 0.6940 lbs
• Manufacturer Part Number: 90852

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be completed with only a screwdriver or Allen wrench
• Connectors are reusable for flexible installation
