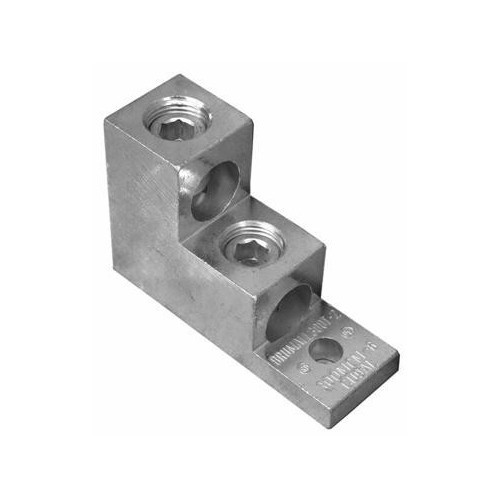

Aluminum Mechanical Lugs Panelboard Lugs - 2 Conductors 300MCM-#6 Awg

This aluminum mechanical lug is designed for secure electrical connections in panelboards, suitable for wire and cable applications requiring dual conductor connections. It is ideal for electrical distributors and switchgear suppliers needing reliable and high-conductivity lugs compatible with aluminum and copper conductors.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Finish: Electro-Tin Plating
• Screw Type: Hex Head
• Wire Range: #6 to 300 MCM
• Length: 3.00"
• Height: 2.00"
• Width: 1.00"
• Bolt Size: 0.31"
• Temperature Rating: 90¬∞C
• Voltage Rating: 600 V
• Certifications: UL 486B, UL 41968, CU9AL Dual Rated, CSA LR 27194, RoHS Compliant

Features

• Manufactured from high strength, high conductivity aluminum alloy
• Electro-tin plated for enhanced corrosion resistance
• CU-AL dual rated for aluminum and copper conductor applications
• Two conductor, one hole vertical stacked configuration

Downloads & Links

• Spec Sheet
