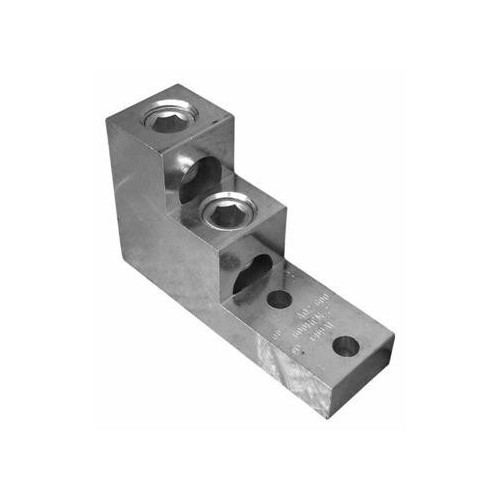

The Morris Products Aluminum Mechanical Lugs are high-strength panelboard lugs designed for secure electrical connections in distribution panels. These dual-rated lugs accommodate both copper and aluminum conductors with a 600MCM-2 wire range and install easily with standard tools.

• Material: High-strength 6061-T6 aluminum alloy with electro-tin plating for superior corrosion protection and low contact resistance
• Compatibility: AL9CU rated for both copper and aluminum conductors, ensuring versatile application in various electrical systems
• Installation: Requires only screwdriver or allen wrench with reusable design for convenient maintenance and repeated use
• Specifications: NEMA drilling with 1-3/8 incheses centers and 3/8 inches bolts for standardized mounting applications
• Ratings: 600 Volt, 194°F (90°C) operation with UL486B/CSA listing for verified safety and performance

Features

• Panelboard lugs manufactured from high strength 6061-T6 aluminum alloy to insure both maximum strength and conductivity
• AL9CU Dual Rated for both Copper and Aluminum Conductors
• Assembly can be made with only a screwdriver or allen wrench and they are re-usable
• Electro-tin plated to provide low contact resistance and protection against corrosion
• NEMA Drilling 1-3/8” Centers
• Two conductor panelboard lugs are rated 600V 194°F (90°C)
• UL486B/CSA Listed

Specifications

• AWG: 600
• Wire Range: 600MCM - 2STR.
• Hole Space: 1.38
• Bolt: 0.375
