Morris Products
Aluminum Mechanical Lugs One Conductor - Two Hole Mount - Slotted Mounting Hole 350MCM To #6
SKU: #277025
Part: #90742
UPC: 601986907422
Morris Products
Aluminum Mechanical Lugs One Conductor - Two Hole Mount - Slotted Mounting Hole 350MCM To #6
SKU: #277025
Part: #90742
UPC: 601986907422
Description

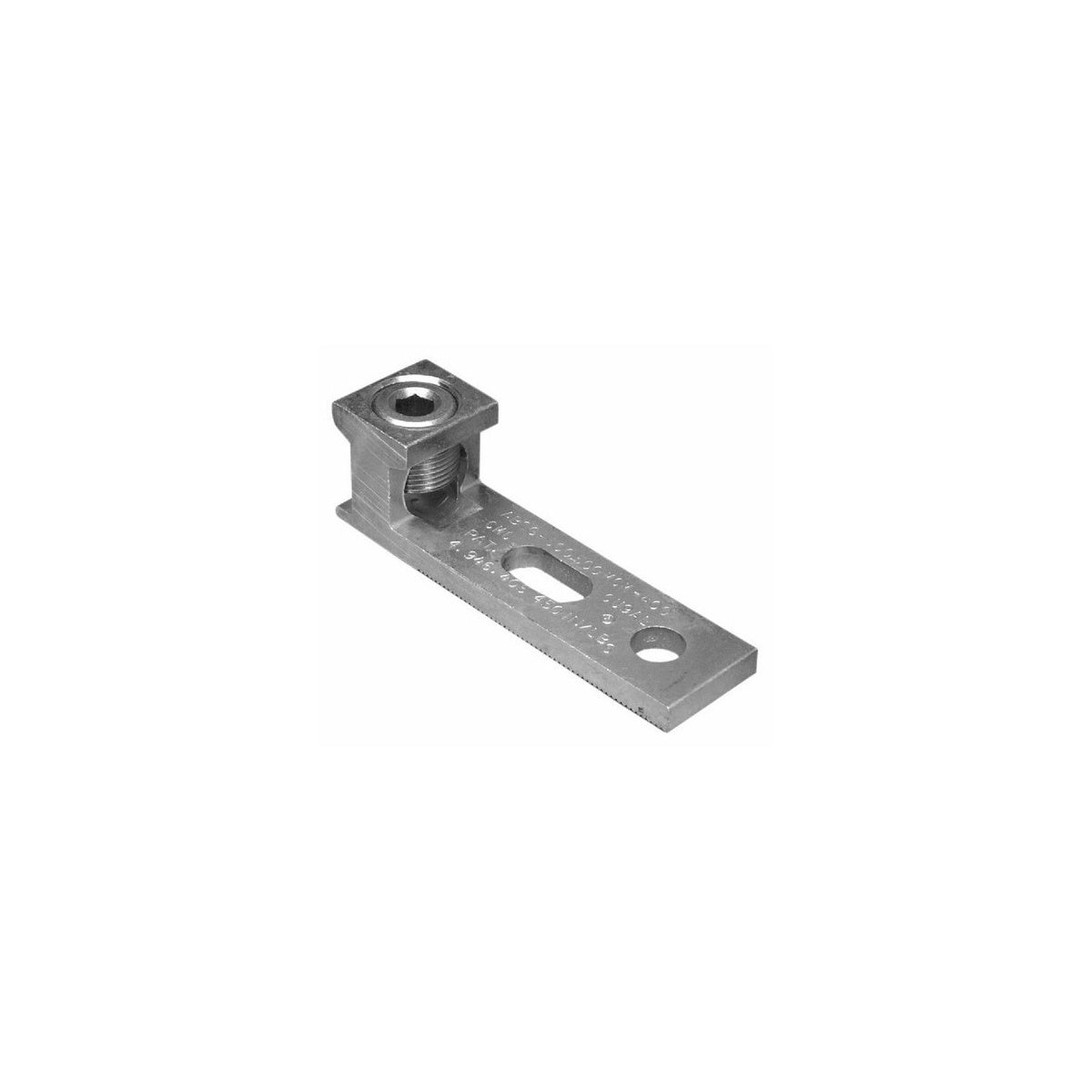

Aluminum Mechanical Lugs One Conductor - Two Hole Mount - Slotted Mounting Hole 350MCM To #6
This aluminum mechanical lug is designed for secure electrical connections in wire and cable applications. It serves as a reliable component for electrical distributors and switchgear suppliers requiring corrosion-resistant, dual-rated connectors compatible with both copper and aluminum conductors. Its slotted mounting hole and two-hole mount design facilitate versatile installation in lighting solutions and electrical distribution systems.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Wire Range: 350MCM to #6 AWG
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- Dimensions (inches): Length 3.97, Width 1.13, Height 1.25
- Stud Size: 0.50 inches
- Product Weight: 0.2630 lbs
- UL Listing: UL486B AL9CU
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for use with both copper and aluminum conductors
- Electro-tin plated to reduce contact resistance and protect against corrosion
- Assembly can be completed using only a screwdriver or Allen wrench
- Connectors are reusable for flexible installation and maintenance
- NEMA standard 1-3/4” center hole spacing for compatibility with standard mounting configurations
