Morris Products

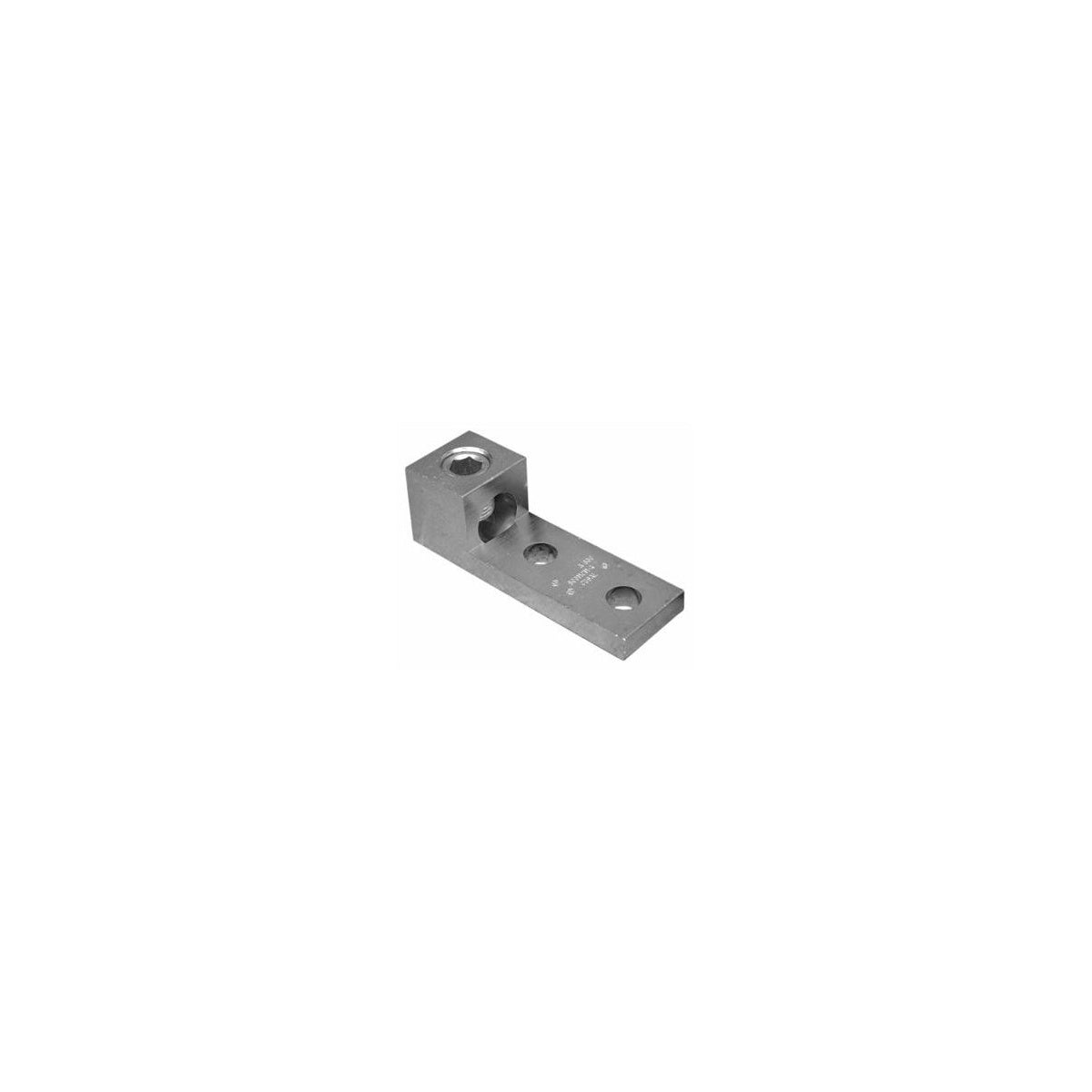

Aluminum Mechanical Lugs One Conductor - Two Hole Mount 800MCM-300 MCM
SKU: #277007
Part: #90735
UPC: 601986907354
Morris Products
Aluminum Mechanical Lugs One Conductor - Two Hole Mount 800MCM-300 MCM
SKU: #277007
Part: #90735
UPC: 601986907354
Description
Aluminum Mechanical Lugs One Conductor - Two Hole Mount 800MCM-300 MCM
This aluminum mechanical lug is designed for securely connecting one conductor with a two-hole mount configuration. Manufactured from high strength 6061-T6 aluminum alloy, it offers excellent conductivity and corrosion resistance. Suitable for use by electrical distributors and switchgear suppliers, it supports wire and cable applications requiring reliable mechanical connections rated up to 600V.
Specifications
- Material: 6061-T6 Aluminum
- Conductor Range: 800MCM - 300 MCM
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- Mounting: Two Hole Mount
- Product Weight: 0.9 lbs
- Manufacturer Part #: 90735
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be made with only a screwdriver or Allen wrench
- Connectors are reusable
- NEMA standard 1-3/4” center hole spacing
- UL486B listed AL9CU certification
