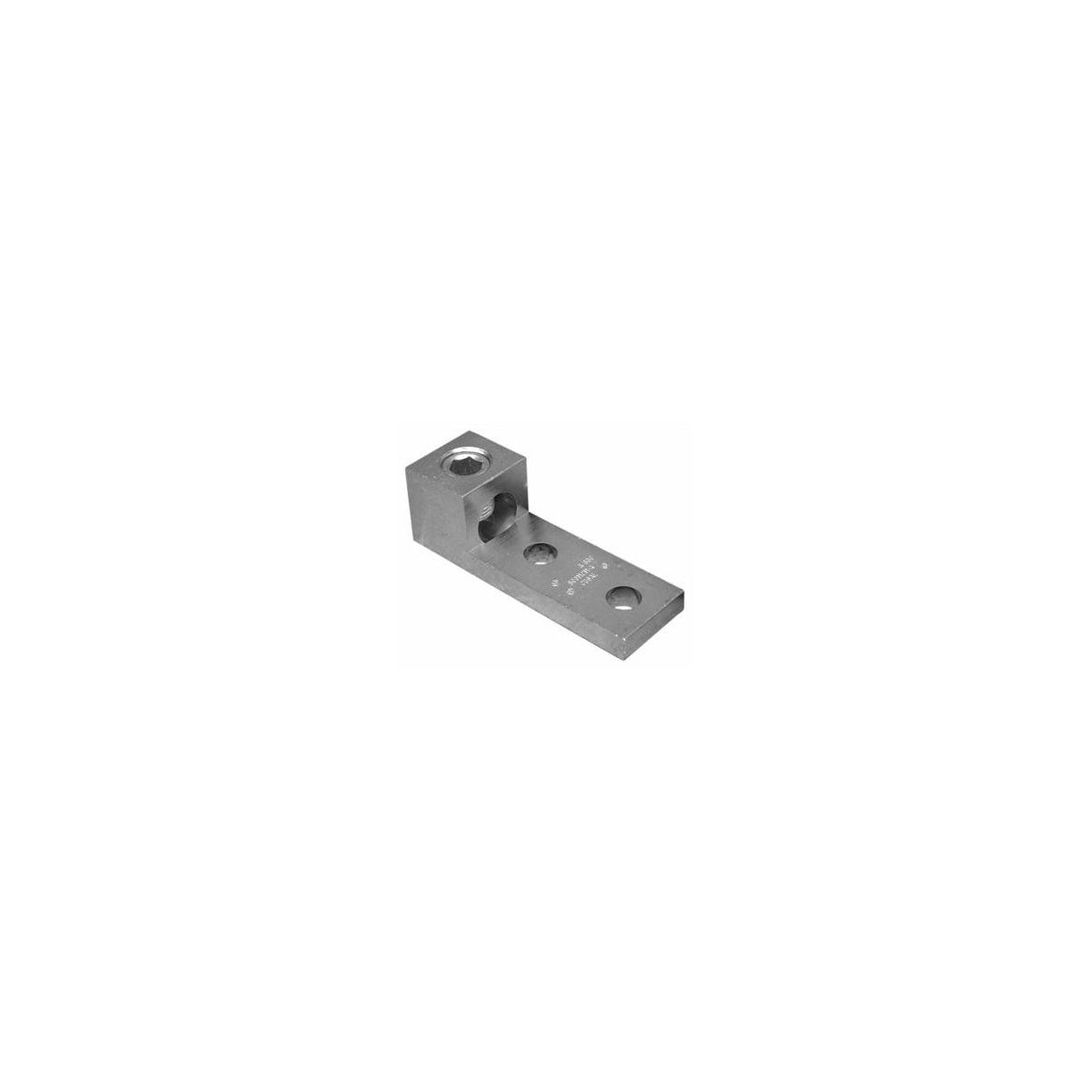

Aluminum Mechanical Lugs One Conductor - Two Hole Mount 600MCM-#2 Awg
SKU: #277003
Part: #90734
UPC: 601986907347
Aluminum Mechanical Lugs One Conductor - Two Hole Mount 600MCM-#2 Awg
SKU: #277003
Part: #90734
UPC: 601986907347
Total Price: $24.20 per piece Sold in increments of 1 piece
Description
Aluminum Mechanical Lugs One Conductor - Two Hole Mount 600MCM-#2 Awg
This aluminum mechanical lug is designed for secure and corrosion-resistant electrical connections, suitable for wire and cable applications in industrial and commercial settings. Manufactured from high-strength 6061-T6 aluminum alloy, it supports one conductor with a two-hole mount configuration. This product is ideal for electrical distributors and switchgear suppliers requiring reliable mechanical lugs for copper and aluminum conductors.
Specifications
- Material: 6061-T6 Aluminum
- Wire Range: 600MCM to #2 AWG
- Mounting: Two Hole Mount
- Voltage Rating: 600V
- Temperature Rating: 194°F (90°C)
- Center Hole Spacing: NEMA Standard 1-3/4”
- UL Listing: UL486B AL9CU
- Product Weight: 0.4030 lbs
- Manufacturer Part Number: 90734
Features
- Manufactured from high-strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be made with only a screwdriver or Allen wrench
- Connectors are reusable
