Description

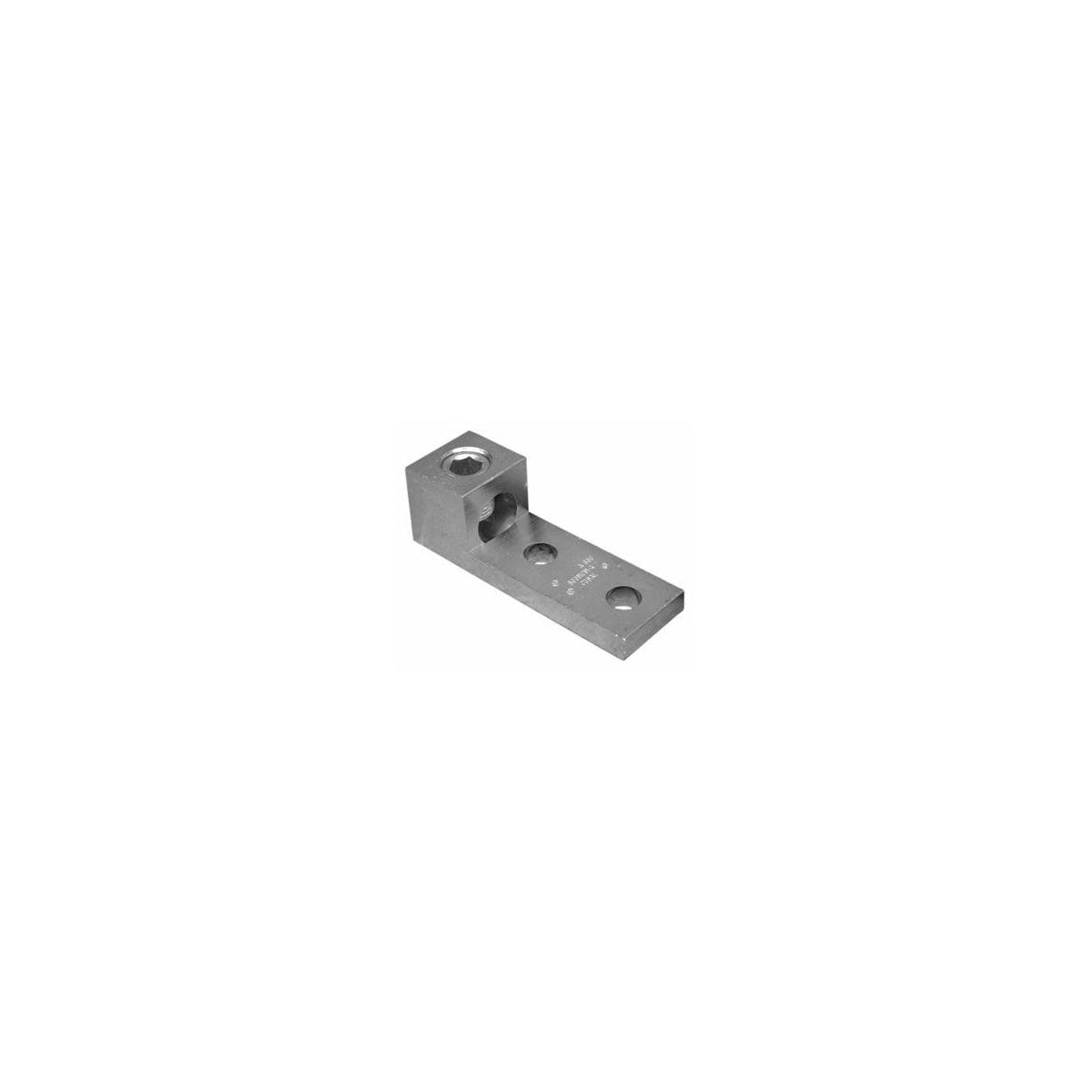

Aluminum Mechanical Lugs One Conductor - Two Hole Mount 500MCM-#4 Awg
This aluminum mechanical lug is designed for secure and corrosion-resistant electrical connections in wire and cable installations. Suitable for use by electrical distributors and switchgear suppliers, it accommodates one conductor with a wire range of 500MCM to #4 AWG. The lug is manufactured from high-strength 6061-T6 aluminum alloy, ensuring both durability and excellent conductivity for lighting solutions and other electrical applications.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Wire Range: 500MCM to #4 AWG
- Mounting: Two Hole Mount
- Rated Voltage: 600V
- Temperature Rating: 194°F (90°C)
- Weight: 0.3530 lbs
- UL Listing: UL486B AL9CU
- Manufacturer Part #: 90733
- Center Hole Spacing: NEMA Standard 1-3/4”
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for use with both copper and aluminum conductors
- Electro-tin plated for low contact resistance and corrosion protection
- Assembly can be completed using only a screwdriver or Allen wrench
- Connectors are reusable
